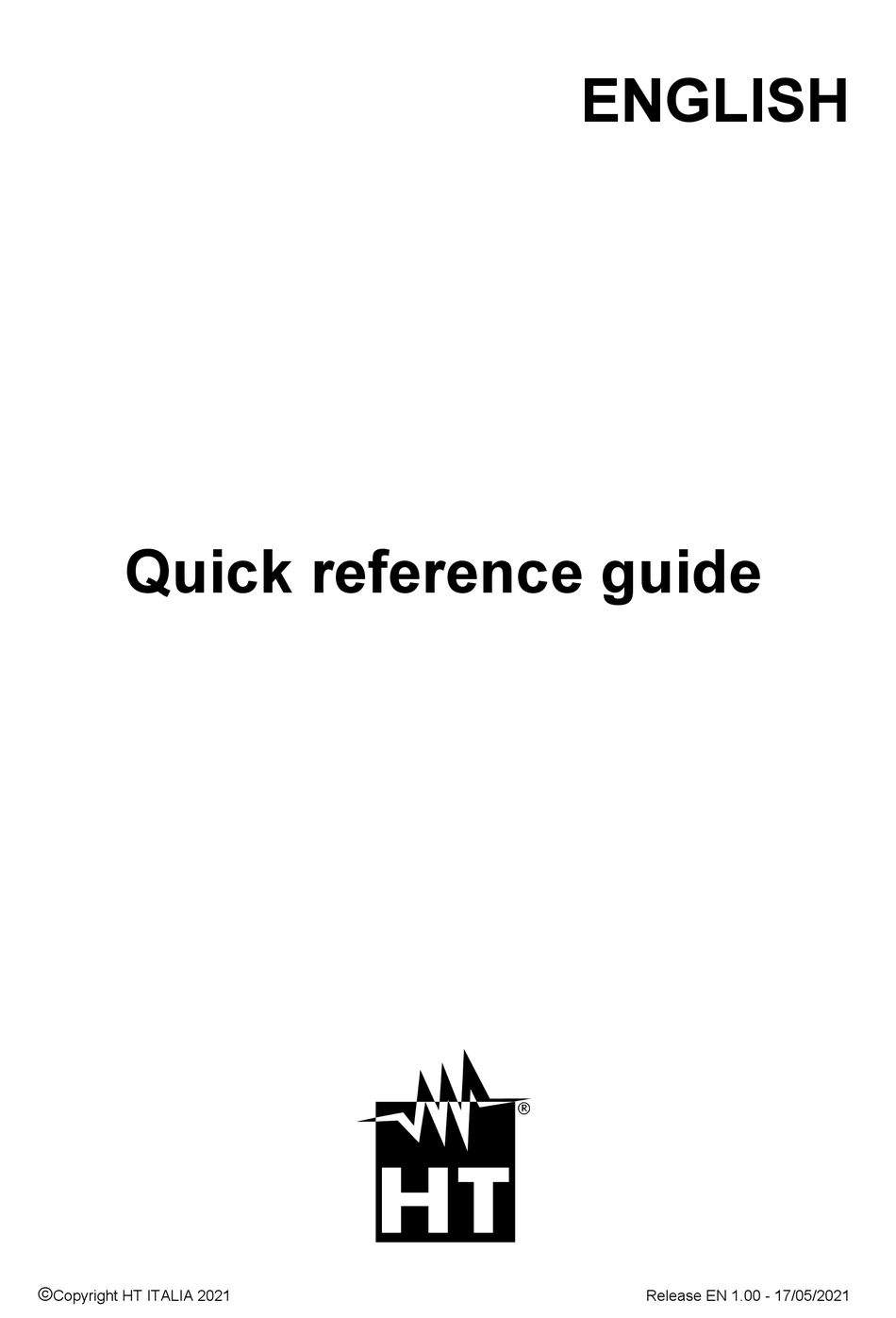

- Page 1 ENGLISH Quick reference guide Copyright HT ITALIA 2021 Release EN 1.00 - 17/05/2021...
-
Page 2: Table Of Contents
THT60n Quick reference guide TABLE OF CONTENTS PRECAUTIONS AND SAFETY MEASURES ................... 2 During use ....................................2 After use ....................................... 2 NOMENCLATURE ............................ 3 Instrument description .................................. 3 Description of function keys ................................ -
Page 3: Precautions And Safety Measures
THT60n Quick reference guide PRECAUTIONS AND SAFETY MEASURES The instrument has been designed in compliance with the directives relevant to electronic measuring instruments. For your safety and in order to prevent damaging the instrument, please carefully follow the procedures described in this manual and read all notes preceded by symbol with the utmost attention. -
Page 4: Nomenclature
THT60n Quick reference guide NOMENCLATURE INSTRUMENT DESCRIPTION Fig. 1: Description of the instrument's backside CAPTION: Audio/Microphone, USB, micro SD and HDMI LCD touch-screen display Lens associated with the IR sensor Function key (Image/video gallery) Function key (Laser/Distance) Function key Menu/OK Function key (ON/OFF and Measuring Mode) Arrow keys ,,,... - Page 5 THT60n Quick reference guide Fig. 2: Description of the instruments front side CAPTION: Built-in white LED illuminator Laser pointer Laser pointer for distance measurement Photo camera Lens associated with the IR sensor Slot for non-slip strap insertion Threaded hole (¼”) for tripod insertion Trigger key (T) Rechargeable battery EN - 4...
- Page 6 THT60n Quick reference guide Fig. 3: Description of the upper part of the instrument CAPTION Slot for micro SD card insertion Micro USB port Headphone/microphone input HDMI video output EN - 5...
-
Page 7: Description Of Function Keys
THT60n Quick reference guide DESCRIPTION OF FUNCTION KEYS The instrument has 8 function keys described further in this text and a trigger key “T” with multiple functions. 2.2.1 Switching on the instrument 1. Press and hold key for 2s to switch on the instrument. After the initial splash screen is displayed (see Fig. -
Page 8: Key
THT60n Quick reference guide 2.2.4 Press key to enter the gallery of images/videos saved in the internal memory or on the inserted micro SD card. 2.2.5 T key (Trigger) Pressing the T key found on the front part of the instrument allows freezing the IR image on the display and automatically opens the section for saving the image. -
Page 9: Technical Specifications
THT60n Quick reference guide TECHNICAL SPECIFICATIONS Temperature measurement Range Resolution Accuracy (*) -20.0°C 650.0°C 2%reading or 2°C (higher value) 0.1°C -4.0°F 1202.0°F 2%reading or 3.6°F (higher value) 0.1°F (*) Environmental temperature: 10°C ÷ 35°C, Temperature of target: >0°C Temperature measurement in Screening mode Range Resolution Accuracy... -
Page 10: Environment
THT60n Quick reference guide ENVIRONMENT 3.1.1 Environmental conditions for use Operating temperature: -15°C÷ 50°C (5°F÷ 122°F) Storage temperature: -40°C÷ 70°C (-40°F÷ 158°F) Allowable relative humidity: 10%RH ÷ 90%RH Mechanical protection: IP54 in compliance with IEC 529 Falling test: Shock: 25G in compliance with IEC60068-2-29 Vibrations: 2G in compliance with IEC60068-2-6 This instrument complies with Directive EMC 2014/35/EU...
