π
H-1054

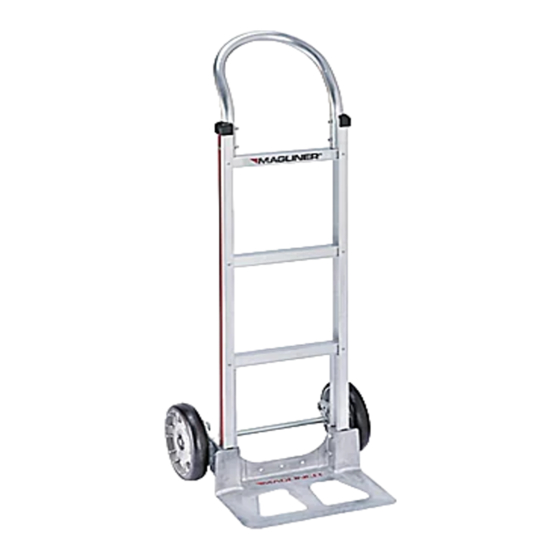

MAGLINER
ALUMINUM
®
STANDARD HAND TRUCK
WITH SOLID RUBBER WHEELS
TOOLS NEEDED
#3 Phillips Screwdriver
7/16" Combination Wrench
or Socket Wrench
1
7
9
8
6
5
13
PAGE 1 OF 6
1-800-295-5510
uline.com
1/2" Combination Wrench
or Socket Wrench
Hammer
3
2
10
14
15
11
Pliers

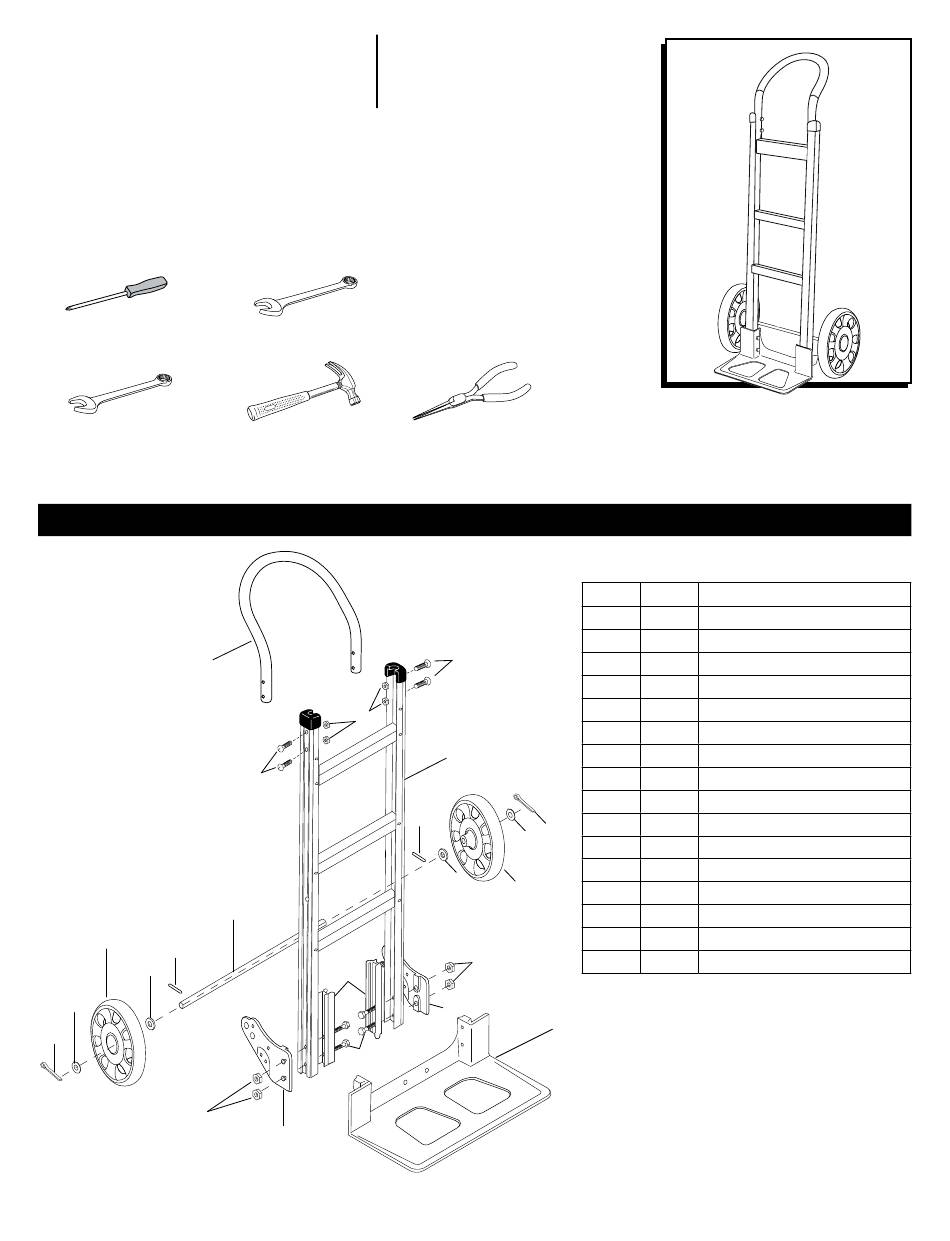

PARTS
2
4
9
5
6
8
7
13
Includes additional hardware not required for assembly.
12
16
Para Español, vea páginas 3-4
Pour le français, consulter les pages 5-6
REF.
QTY.
DESCRIPTION
1
1
2
4
1/4"-20 x 1⁄" - Pan Head Bolt
3
4
1/4" - Locknut
4
1
Frame w/ Black Caps
5
2
Cotter Pin
6
2
Thin Washer
7
2
8
2
Thick Washer
9
2
Pin Coil Spring/Roll Pin
10
1
11
1
Right Hand (RH) Wheel Bracket
12
1
Left Hand (LH) Wheel Bracket
13
4
5/16" - Locknut
14
2
Side Channel Reinforcement
15
4
5/16"-18 x 2⁄" - Hex Head Bolt
16
1
Nose Plate
Handle
Wheel
Axle
0521 IH-1054
Advertisement
Table of Contents
Related Manuals for U-Line MAGLINER H-1054
Summary of Contents for U-Line MAGLINER H-1054
- Page 1 Para Español, vea páginas 3-4 Pour le français, consulter les pages 5-6 π H-1054 1-800-295-5510 uline.com MAGLINER ALUMINUM ® STANDARD HAND TRUCK WITH SOLID RUBBER WHEELS TOOLS NEEDED #3 Phillips Screwdriver 1/2" Combination Wrench or Socket Wrench 7/16" Combination Wrench Hammer Pliers or Socket Wrench...
- Page 2 ASSEMBLY ATTACH NOSE PLATE, WHEEL BRACKETS AND AXLE Figure 1a Position side channel reinforcements against bottom Frame frame rail. (See Figure 1a) Slide nose plate into channel on side channel reinforcement, keeping bolt holes aligned. (See Figure 1) 2. Insert four 5/16"-18 x 2⁄" - hex head bolts through the nose plate, side channel reinforcements and frame.
- Page 3 π π H-1054 H-1054 800-295-5510 uline.mx MAGLINER DIABLITO DE ® ALUMINIO ESTÁNDAR CON LLANTAS DE CAUCHO SÓLIDO HERRAMIENTAS NECESARIAS Desarmador Phillips Núm. 3 Llave Combinada o de Dado de 1/2" Llave Combinada o de Martillo Alicates Dado de 7/16" PARTES REF.
- Page 4 ENSAMBLE COLOCACIÓN DE LA PLACA BASE, LOS SOPORTES DE LA LLANTA Y EL EJE Diagrama 1a 1. Coloque los refuerzos del canal lateral contra el Clavija del fondo del riel del marco. (Vea Diagrama 1a) Deslice Rodillo la placa base hacia el canal en los refuerzos del canal lateral, manteniendo alineados los orificios de los pernos.
- Page 5 π H-1054 1-800-295-5510 uline.ca MAGLINER – DIABLE DE MANUTENTION EN ALUMINIUM AVEC ROUES EN CAOUTCHOUC PLEIN OUTILS REQUIS Tournevis cruciforme nº 3 Clé mixte ou à douilles de 1/2 po Clé mixte ou à douilles de Marteau Pinces 7/16 po PIÈCES QTÉ DESCRIPTION Poignée Vis à...
- Page 6 ASSEMBLAGE FIXATION DE LA BAVETTE, DES SUPPORTS DE ROUE Figure 1a ET DE L'ESSIEU Cadre Positionnez les renforts de rainure latéraux contre les glissières à l'extrémité inférieure du cadre. (Voir Figure 1a) Glissez la bavette dans la cannelure des renforts de rainure latéraux en gardant les trous de boulon alignés.
