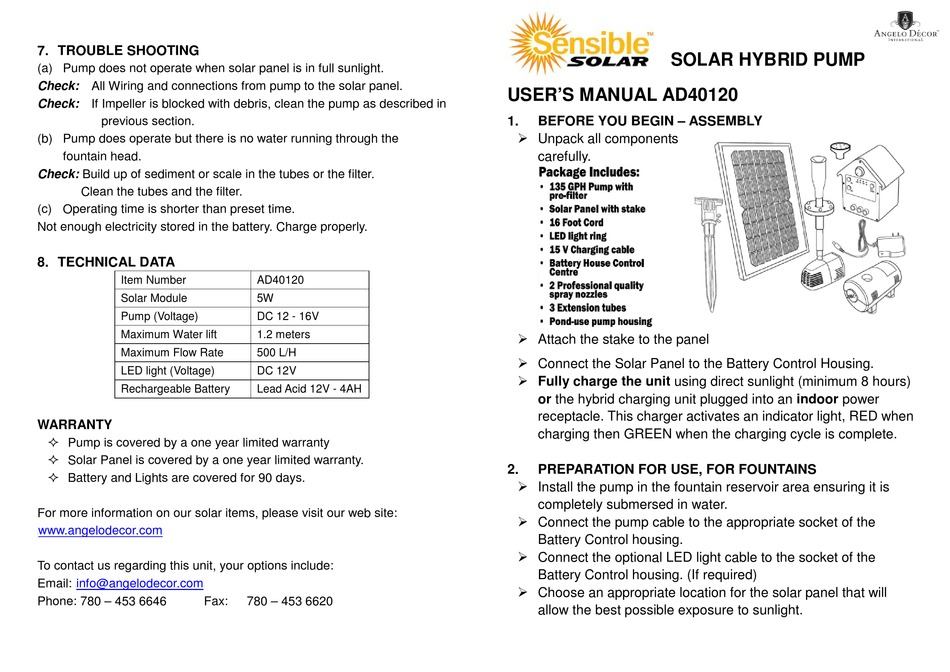

Angelo Decor Sensible Solar AD40120 User Manual

7. TROUBLE SHOOTING
(a) Pump does not operate when solar panel is in full sunlight.
Check: All Wiring and connections from pump to the solar panel.
Check: If Impeller is blocked with debris, clean the pump as described in
previous section.
(b) Pump does operate but there is no water running through the
fountain head.
Check: Build up of sediment or scale in the tubes or the filter.
Clean the tubes and the filter.
(c) Operating time is shorter than preset time.
Not enough electricity stored in the battery. Charge properly.
8. TECHNICAL DATA
Item Number
Solar Module
Pump (Voltage)
Maximum Water lift
Maximum Flow Rate
LED light (Voltage)
Rechargeable Battery
WARRANTY
 Pump is covered by a one year limited warranty
 Solar Panel is covered by a one year limited warranty.
 Battery and Lights are covered for 90 days.
For more information on our solar items, please visit our web site:
www.angelodecor.com
U U
To contact us regarding this unit, your options include:
Email: info@angelodecor.com
U U
Phone: 780 – 453 6646 Fax:
AD40120
5W
DC 12 - 16V
1.2 meters
500 L/H
DC 12V
Lead Acid 12V - 4AH
780 – 453 6620
SOLAR HYBRID PUMP
USER'S MANUAL AD40120
1. BEFORE YOU BEGIN – ASSEMBLY
 Unpack all components
carefully.
 Attach the stake to the panel
 Connect the Solar Panel to the Battery Control Housing.
 Fully charge the unit using direct sunlight (minimum 8 hours)
or the hybrid charging unit plugged into an indoor power
receptacle. This charger activates an indicator light, RED when
charging then GREEN when the charging cycle is complete.
2. PREPARATION FOR USE, FOR FOUNTAINS
 Install the pump in the fountain reservoir area ensuring it is
completely submersed in water.
 Connect the pump cable to the appropriate socket of the
Battery Control housing.
 Connect the optional LED light cable to the socket of the
Battery Control housing. (If required)
 Choose an appropriate location for the solar panel that will
allow the best possible exposure to sunlight.
