Adesso Newton 5172-21 Assembly Instruction

NOTE: TOUCH DIMMER
SWITCH IS LOCATED
UNDER SHADE
Assembly Instructions (English)
ASSEMBLY INSTRUCTION FOR

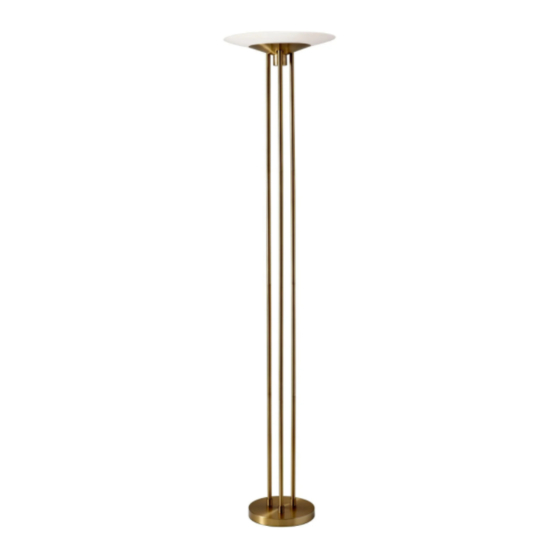

Newton LED Torchiere
Model# 5172-21
1. Place socket holder (H) onto tubes (A) and screw
until tight.
2. Screw tubes (A),(B),(C) and (D) together until
tight.
3. This step is easier when you are sitting in a
chair or on the floor, with the base flat on the
ground.
Insert tubes (D) to base (E), then tighten each tube
with screw (F) by using wrench (G). You may need
to pull any excess cord gently through the poles so
that these two parts fit.
4. Place the glass shade (I) onto shade holder (H).
Then, turn each of the 3 plastic pieces connected
to shade holder (H) so that they latch onto shade (I)
and secure it (Detail view ).
5 . Connect the adaptor (K) with cord (J).

GENERAL PRODUCT INFORMATION:

This product is suitable
for dry locations only.
---------------------------------------------------------------

IMPORTANT SAFETY INSTRUCTIONS:

This portable lamp has a polarized plug as a feature to
reduce the risk of electric shock (one blade is larger
than the other). This plug will fit in a polarized outlet
only one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit, contact a
qualified electrician.Do not use with an extension cord
unless the plug can be fully inserted.
ALTER THE PLUG .

PARTS DIAGRAM

(5)* Hex screw (F)
21 Penn Plaza Suite 909 New York,NY 10001
Tel: (212) 736 4440 Fax: (212) 736 4806
5172-21 2.0
DO NOT
(1)* Allen wrench(G)
www.adessohome.com
