Summary of Contents for JVA Solar Wi-Fi Anywhere WA100

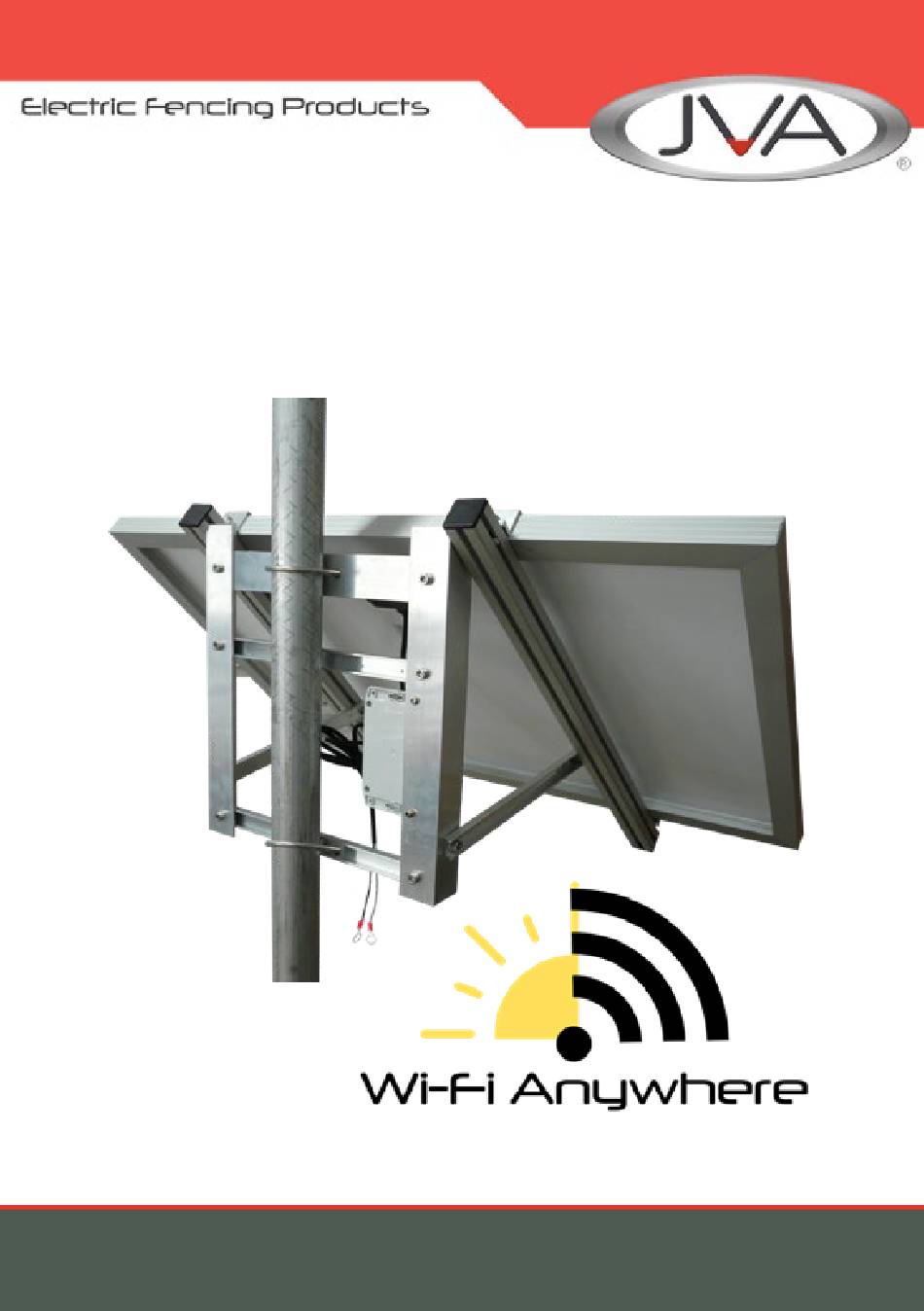

- Page 1 JVA Solar Wi-Fi Anywhere Quick Start Guide WA100 PTE2703 The JVA Logo is a registered trademark of JVA Technologies © JVA Technologies...
-
Page 2: Specifications
The Wi-Fi can then be used to connect an IP device or Internet of Things (IoT) device to the Cloud (Internet). The JVA Solar Wi-Fi Anywhere is installed with an ALDI SIM card at the factory, all you need to do is: 1. -
Page 3: Troubleshooting
Check battery polarity versed Batt level flashing Battery disconnected Check battery connec- tions Bad battery Check battery voltage USB_5V LED off USB device drawing Unplug USB device, too much current check for damage/ seek manufacturer advice JVA WA100 Page 3... -
Page 4: Before You Start
(~10m) SIM card not inserted Re-insert SIM card correctly If the unit is still not working correctly, contact your nearest JVA distribu- tor for technical support. Before you start Activate the SIM card Activate your SIM card and test it in a mobile phone. The Wi-Fi network allows a data-only connection, the number of devices connected to the module will determine how much data will be used. - Page 5 2. Remove the U-Bolts from the zip lock bag and mopunt it to the top and bot- tom panel of the bracket. (A) U-Bolt x 2 (B) Top or Bottom Panel (C) Washers x 4 (D) Spring Washers x 4 (E) Hex Nut x 4 JVA WA100 Page 5...
- Page 6 DO NOT completely remove these bolts. 4. Lift the bottom of the solar panel until the attached arms holding it are angled at 90 degrees. Tighten all 6 bolts again from step 3. Page 6 © JVA Technologies www.jva-fence.com...
- Page 7 5. Attach the red and black eyelet crimps to the battery To find a battery that will suit you, visit our website: https://jva-fence.com.au/solar.php JVA WA100 Page 7...
- Page 8 The following diagram shows an alternative method for wiring the Solar Kit. The battery is connected directly to the solar kit and the Wi-Fi device. The solar kit will have a spare connector (load cable), but the solar kit will still operate properly. Page 8 © JVA Technologies www.jva-fence.com...
- Page 9 Overview JVA WA100 Page 9...
- Page 10 Off when no solar power detected D6 (USB_5V) Solid on when USB Power is turned on Batt Level Bottom LED flashes if no battery is disconnected or bad Shows battery level from bottom to top: 25% to 100% Page 10 © JVA Technologies www.jva-fence.com...
- Page 11 Region Number Australia 0731 030 582 South Africa 0861 782 349 World Wide +61 731 030 582 For more information on our complete range of electric fencing products please see the JVA website at https://www.jva-fence.com.au JVA WA100 Page 11...
- Page 12 Tel : +61 (0)499 000 455 Email : sales@jva-fence.com.au www.jva-fence.com The JVA Logo is a registered trademark of JVA Technologies © JVA Technologies...
