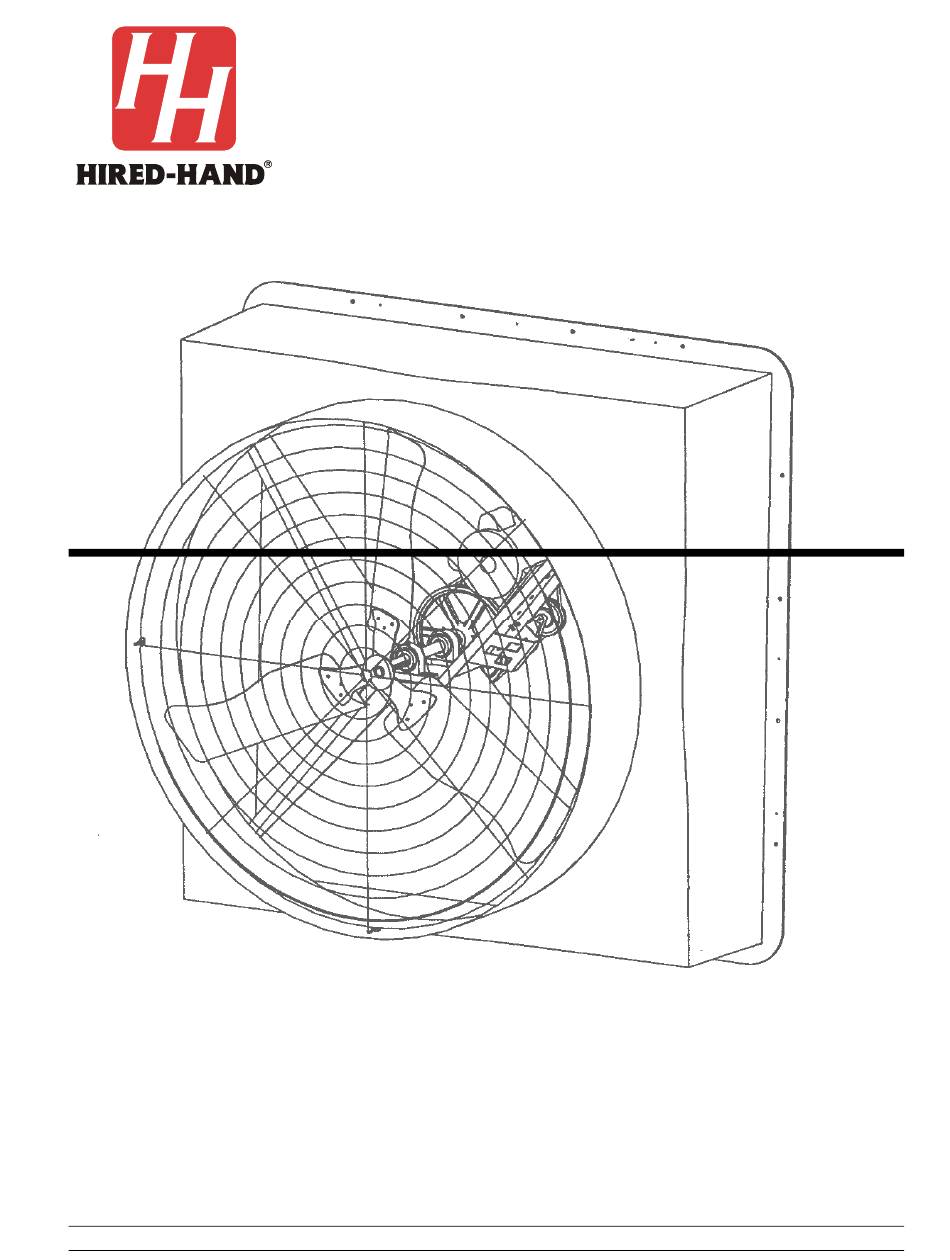

- Page 1 36" 48" & 52" Funnel Flow Belt Drive Fan Unassembled Owner’s Manual Hired-Hand, Mfg., Inc. PO Box 140 1733 County Road 68 Bremen, Alabama 35033 Part No. 4801-5401 Rev 6/07 Owners Manual 36" 48" & 52" Funnel Flow Fan - Unassembled...
-
Page 2: Warnings
Warnings Warning! Disconnect All Power Sources Before Installing This Equipment. Failure To Disconnect Power Source Can Result In Property Damage, Serious Injury Or Death! Warning! Dangerous Rotating Machinery! Keep Hands, Clothing, Etc. Clear When Operating! Do Not Operate Without All Guards And Covers In Place! Warning! All Wiring Should Be In Accordance with National Electrical Codes Or Other Local Codes. -
Page 3: Limited Warranty
This warranty gives you specific legal rights and you may also have other rights that vary from area to area. d you may also have other rights that vary from area to area. Warrantor: Hired-Hand Mfg., Inc. PO Box 140 1751 County Road 68 Bremen, Alabama 35033 Phone 256-287-7000 Part No. -
Page 4: Table Of Contents
Table of Contents Section Description Page Warnings ..............................2 Limited Warranty............................3 Table of Contents............................4 Funnel Flow Fan Mounting Instructions...................... 4 Tools Required............................5 Assembly Instructions ..........................5 Funnel Flow Fan Framing Instructions Framing Diagram Rough Opening See Framing INTAKE EXHAUST Dimensions... -
Page 5: Tools Required
Lock-Tite Compound listed parts are enclosed. If not, call your 4 mm Allen Head Socket Framing Square Hired-Hand distributor immediately. Please 5/32” Allen Head Socket 6” long 3/8” Extension read and understand all instructions in this ¼” &21/64”x5” Drill Bits ½”... - Page 6 Refer to Figure 4. Slide the pulley 36”(1011- 2413) 48”&52”(1011-0100), on the bearing shaft Pulley with the set screw to the bearing side as shown. Place the key shear all the way into the key slot and align the pulley to be flush with the end of the shaft as shown in Figure 4.
- Page 7 For a metal fan blade skip to Step 6.10. For a Fiberglass fan blade, place the Trans Torque Bushing (1047-7001) over the front of the fan blade as shown in Figure 6. Then insert the fan blade onto the bearing shaft flush and tighten with a 1½” socket to 94 foot pounds of torque as shown in Figure 7. Figure 6 Figure 7 Trans Torque Bushing...
- Page 8 6.12 Now remove the Pulley Alignment tool from the top brace and check the alignment of the bearings. Straighten the bearing to be perpendicular to the shaft and tighten securely. 6.13 Place the Bracket Assembly and place into the Fiberglass shroud 36" (4003-3002) 48" (4003- 3003), 52"...
- Page 9 6.16 Refer to Figure 16. Fasten arms to shroud with 5/16” x 7/8” hex head bolt (1004-5000) and 5/16” x 1½” fender washer (1003-2604) from the outside of the shroud. Use 5/16” x ¾” flat washer (1003-0103) and lock nut (1001-0103) as shown. Drill four ¼”...
- Page 10 6.22 Refer to Figure 22. Install the motor pulley with the set screw facing outward. Install the shaft key (1019-2417) into the pulley. Do not tighten at this time. 6.23 Install the belt as shown in Figure 22 and align the motor pulley to the fan and idler pulleys by using a straight edge as shown in Figures 23 and 24.
- Page 11 NOTES Part No. 4801-5401 Rev 6/07 36" 48" & 52" Funnel Flow Fan – Unassembled Page 11 of 12...
- Page 12 36" 48" & 52" Funnel Flow Belt Drive Fan Unassembled...
