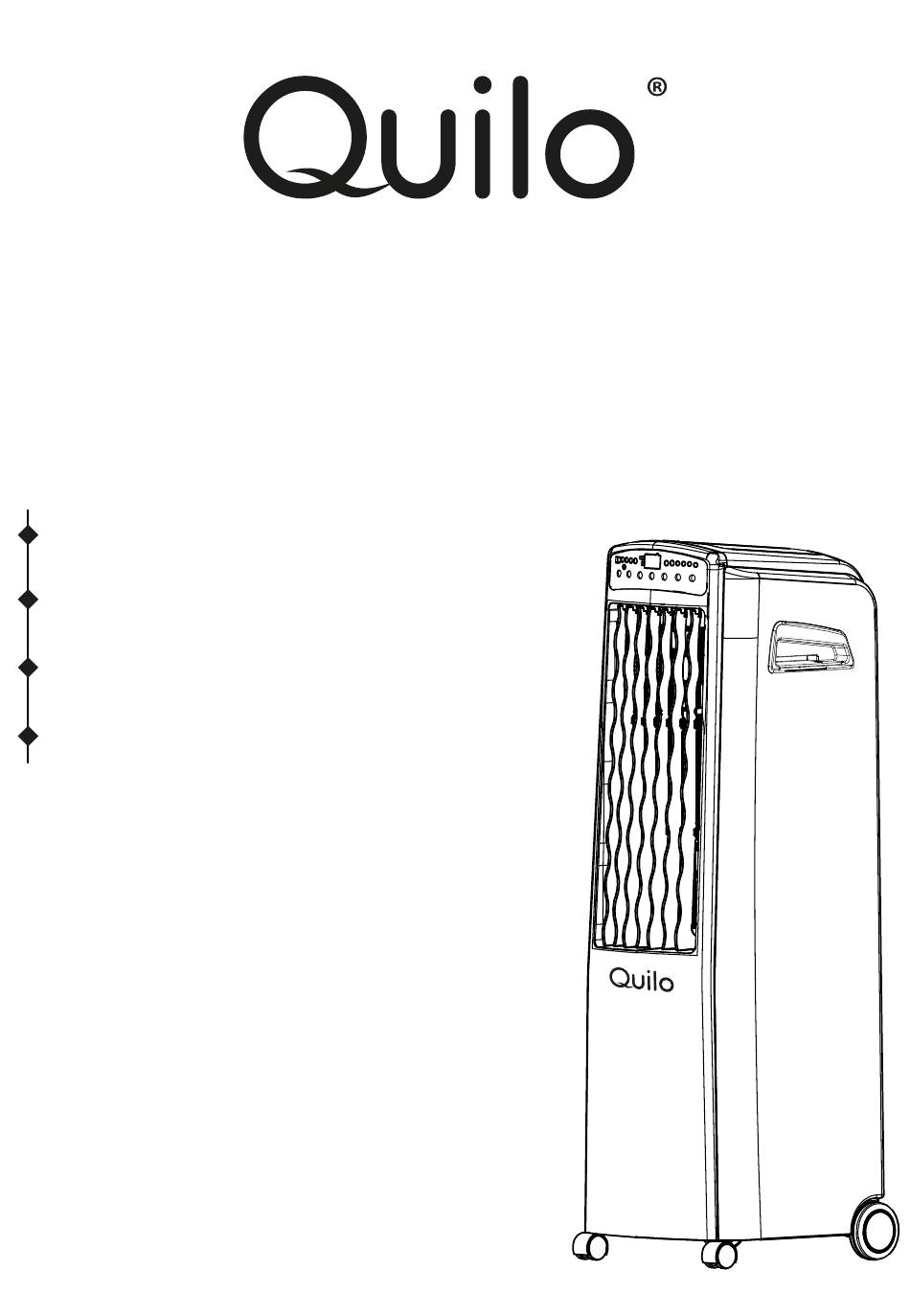

MODEL: QUILO® AVIANCE™ (QE2RVKS)

4- IN- 1 ALL SEASON AIR CLIMATIZER

Air Purifier

Evaporative Air Cooler

Humidifier

Fan

User Manual

Read these instructions before use and

keep the manual safe for future reference

JMATEK North America LLC

Mahwah, New Jersey 07495 USA

Phone: 1 800-790-7115

Email: info@quilohome.com

Web: www.quilohome.com

Table of Contents

Need help?

Do you have a question about the AVIANCE QE2RVKS and is the answer not in the manual?

Questions and answers

Summary of Contents for Quilo AVIANCE QE2RVKS

Page 1 MODEL: QUILO® AVIANCE™ (QE2RVKS) 4- IN- 1 ALL SEASON AIR CLIMATIZER Air Purifier Evaporative Air Cooler Humidifier User Manual Read these instructions before use and keep the manual safe for future reference JMATEK North America LLC Mahwah, New Jersey 07495 USA Phone: 1 800-790-7115 Email: info@quilohome.com...
Page 2 THANK YOU Congratulations on your purchase of the versatile QUILO® AVIANCE™. With 4 functions in 1 device, AVIANCE™ helps to provide comfort all year long: Air purifier – Removes up to 99.5% of airborne particles up to 0.3 microns. Helps minimize the spread of allergens and bacteria in the air, such as pollen, smog, and viruses Fan - Circulates the room air and provides ventilation.
Page 3: Activated Carbon Filter
1: EFFICIENT HEPA FILTER Removes up to 99.5% of airborne particles up to 0.3 microns. Helps minimize the spread of allergens and bacteria in the air, such as pollen, smog, and viruses. 2: ACTIVATED CARBON FILTER Removing volatile organic compounds, such as secondhand smoke and kinds of polluting gases.
Page 4: Safety Rules
QUILO® AVIANCE™ must be kept level and there must be sufficient water in the tank. Doors and windows should be opened to allow free airflow. The QUILO® AVIANCE™ works best when placed near an open window, so that outside air is drawn into the unit, circulates in the room, then exits via the door.
Page 5 WARNING– Skin or eye damage may result from directly viewing the light produced by the lamp in this apparatus. CAUTION! - This equipment should be inspected frequently and collected dirt removed from it regularly to prevent excessive accumulation that may result in flashover or a risk of fire.
Page 6 DO NOT run power cord under carpeting, or cover it with rugs or runners. Keep the cord away from areas where it may be tripped over. Always unplug the QUILO® AVIANCE™ before refilling the water tank, cleaning, servicing, or relocating the unit.
Page 7: Security Note
Security Note To avoid possible damage to you or others or financial damages, please be sure to pay attention to the following safety precautions. If the machine's power supply cord is damaged, you must ensure that the manufacturers of the machine, maintenance service center or qualified technicians replace it to avoid any potential hazard.
Page 8 Attention In case any of the below mentioned situations occur, please power off the machine immediately: A switch does not work. A circuit breaker or fuse burned. The power cord or plug abnormal fever. Finding the burning odor or abnormal sound or vibration.
Page 9: Parts Description
Parts Description In case any of the below mentioned situations occur, please power off the machine immediately: A switch does not work. A circuit breaker or fuse burned. The power cord or plug abnormal fever. Finding the burning odor or abnormal sound or vibration.
Page 10: Use And Operation
Use & Operation CONTROL PANEL Icons on Display Screen Button Functions When the machine is connected to the power supply,the unit will detect which cartridge has been selected. Before turning on the unit, please select one of the cartridges to start the operation. When Honeycomb is used, “HC”...
Page 11: Mode Button
Press SPEED button for 3 seconds to select your desired wind type: Speed + NATURAL or Speed + SLEEP (Variable). The indicator light will show the selected wind type. Speed +NATURAL : The fan speed alternates between High, Middle, Low and Off to mimic a natural breeze.
Page 12: Humidity Setting
Humidity Setting Press the ‘Swing’ button for 3 secondsto change the humidity setting. The humidity data is displayed on the display screen and flash, and the % indicator light is on. Press the MODE button to increase the humidity setting by 5%, Press the TIME button to reduce the humidity setting by 5%.
Page 13 UV button Press UV/replace button to turn on UV light, Press UV/replace button again to turn off UV light. Mode When the water in the tank is abovethe minimum level, humidifyled light automaticallyturns on and the pump starts working. Press the mode button again and the humidify ledlight will turn off and the pump stops working.
Page 14 Speed+SLEEP: This mode is for comfort during the night. When the SLEEP mode is selected, the airflow will randomly vary between High, Medium, Low as below. H+SLEEP: Running at High speed for 30 minutes, then change to mid speed for 30mins, and then Low speed until the unit is switched off.
Page 15: Remote Control
Remote Control Power: ON/OFF UV light: UV light ON/OFF FAN SPEED: Low/Middle/High Natural/Sleep: NATURAL/SLEEP SWING: Controls the motion of the louvers/Humidity setting Auto: Auto mode Mode+: Cooling mode/Humidification mode/air purification mode/adjust humidity setting Timer-: Controls the timer function for automatic off/ Adjust humidity setting Noted: Humidity setting:...
Page 16 •Remove the batteries if the unit is not going to be used for an extended period of time. •Do not drop the remote control. •Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries. •Do not mix old and new batteries. •Do not recharge the battery.
Page 17 Warning: Do not fill the water tank with dirty water or salt water. This can damage the unit and Honeycomb media. Low water alarm The unit is equipped with a low water sensor. In COOL&humidityMode, when water in the tank isbelow the minimum level, you will hear 10timesalarm sounds, and the indicator light will flashcontinuously.
Page 18 •Do not run the unit in COOL&humidity mode with stale water in the tank. You must empty the water tank and refill it with fresh water, especially if the tank has not been cleaned in a long time. •The cleaning frequency for the Honeycomb & humidifiermedia depends on local air and water conditions.
Page 19 1. Using a soft brush to clean the inlet/outlet of the air quality sensor. 2. Remove the protective cover of the airquality sensor. 3. Clean the air quality sensor, inlet, andoutlet with wet cotton swabsslightly. 4. Dry it with dry cottonswabs. 5.
Page 20: Troubleshooting Guide
Cleaning At least once a week, drain the water tank completely and refill it with fresh water. Doing this will greatly reduce mineral deposits and help to extend the life of the Honeycomb Cooling media & humidifier filter. Replace filter reference time When theHEPA filtertotal work time reach to 1000hours, the machine will notice to change the HEPA filter.
Page 21 Problem Problem cause Solution The pump is damaged or Contact Customer Service Calcium deposits have built up Center. over the blower. Not Cooling / Unit Dirt on filter or cartridge. Clear filter or cartridge. is making noise. (Continued) The blower screw is loose or the Contact Customer Service Center.
Page 22 Problem Problem cause Solution Try to activate the unit with remote control. If the unit responds, then the Control Panel on the unit may be experiencing problems - contact Damaged Control Panel on the the Customer Service Center. unit. If neither the Remote Control or The unit does not the Control Panel is working, respond...
Page 23 Problem Problem cause Solution There is a problem with the magnetic Change Magnetic switch, contact the Unit does not change switch on the rear cover. customer service centerer. to air purifier mode Change PCBA, contact the customer PCBA problem. when HEPA cartridge service center.
Page 24 Recycling Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
Page 25 JMATEK North America LLC Mahwah, New Jersey 07495 USA Phone: 1 800-790-7115 Made in China Email: info@quilohome.com © 2021 JMATEK Limited. All rights reserved. This product is manufactured by Airtek Int'l Corp. Ltd. Web: www.quilohome.com (subsidiary of JMATEK Ltd.).
