Original Issue Date: 4/02
Model: Model KC, KS, and KEP Automatic Transfer Switches
Market: Transfer Switches
Subject: User Interface Cover Kits GM22703-KP1 and GM22703-KP3
Introduction
This document provides installation instructions for the
user interface covers.
prevents unauthorized access to the transfer switch
interface panel controls. See Figure 1.
The kits have a hinged, padlockable, rain-tight sheet
metal security cover with a keylock providing restricted
access to the transfer switch controls.
include a second padlock bracket for the enclosure door
on welded enclosures. See Figure 2.
Read the entire installation procedure and compare the
kit parts with the parts list at the end of this publication
before beginning installation. Perform the steps in the
order shown.
Power Tools Required
Electric drill
D
Drill bit, 6 mm (7/32 in.)
D
INSTALLATION INSTRUCTIONS
The user interface cover
Some kits
1
1. User interface panel control
2. Transfer switch enclosure (typical)
3. Security cover

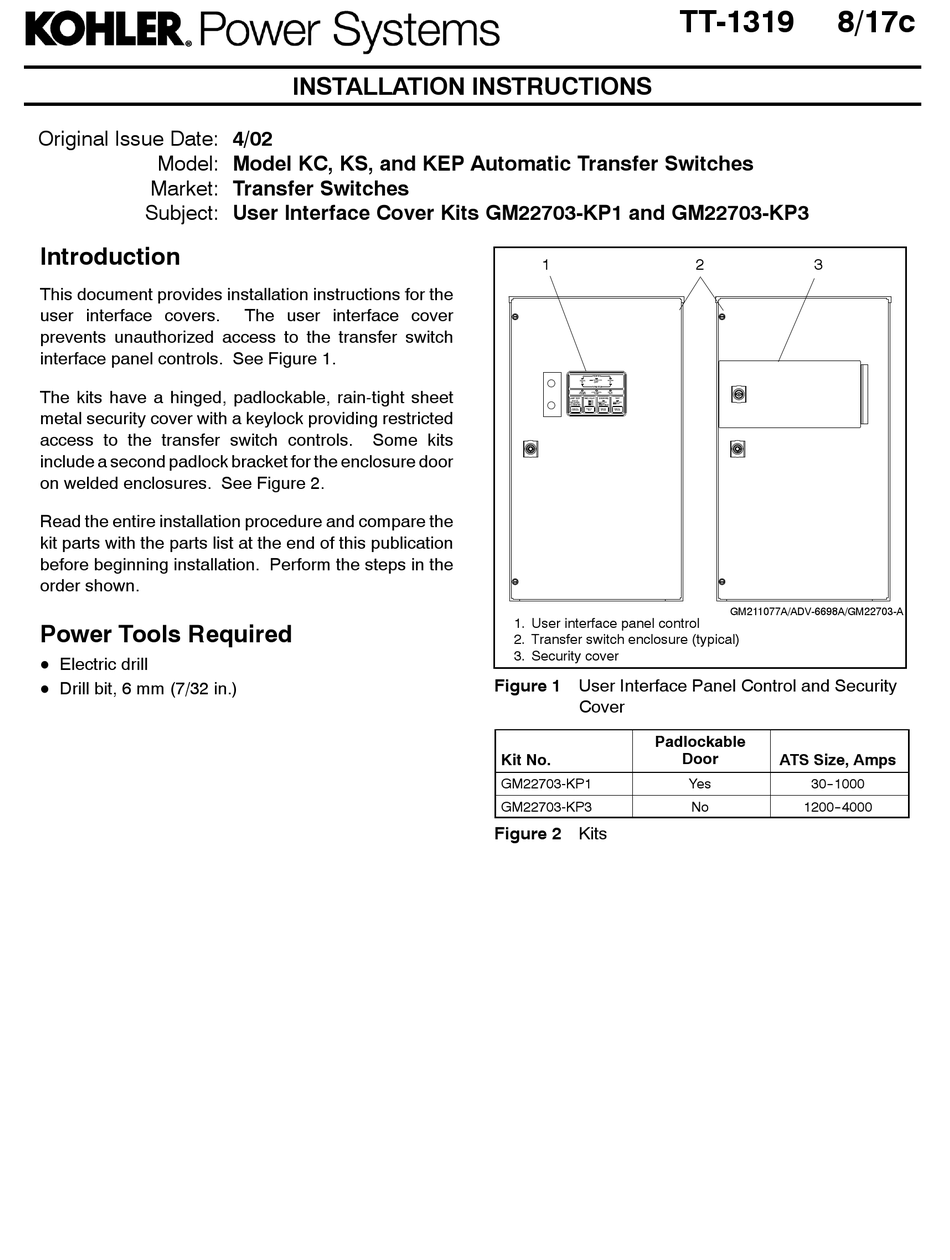

Figure 1 User Interface Panel Control and Security
Cover
Padlockable
Kit No.
GM22703-KP1
GM22703-KP3
Figure 2 Kits
TT-1319
8/17c
2
3
GM211077A/ADV-6698A/GM22703-A
Door
ATS Size, Amps
Yes
30--1000
No
1200--4000
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kohler TT-1319
Summary of Contents for Kohler TT-1319
- Page 1 TT-1319 8/17c INSTALLATION INSTRUCTIONS Original Issue Date: 4/02 Model: Model KC, KS, and KEP Automatic Transfer Switches Market: Transfer Switches Subject: User Interface Cover Kits GM22703-KP1 and GM22703-KP3 Introduction This document provides installation instructions for the user interface covers. The user interface cover prevents unauthorized access to the transfer switch interface panel controls.
-
Page 2: Safety Precautions
(1) Remove all jewelry. (2) Stand on a dry, approved electrically insulated mat. (3) Test circuits with a voltmeter to verify that they are deenergized. (RDC, DC, RDC2, DC2, Decision-Makerr 3000, 3500 and 6000 Generator Set Controllers) TT-1319 8/17... - Page 3 Figure 3 Latch Bracket Installed on the Enclosure Door (see Figure 4 for hole locations) Note: Dimensions shown are in mm. GM22703-D 1. Drill six 5.6 mm (13/64 in.) diameter holes Figure 4 Drill Holes in Transfer Switch Door TT-1319 8/17...
- Page 4 Apply gasket material to all four flanges. Top and bottom gaskets overlap end pieces as shown. GM22703-D 1. Gasket material 25486 00350 Figure 5 Gasket GM22703-A 1. Security cover 2. Hinged edge 3. Enclosure door Figure 6 Attaching Security Cover TT-1319 8/17...
- Page 5 1. Compression latch GM51992 GM20573-A 2. Enclosure door latch 2. Nut 3. Security cover GM89254 Figure 7 Attaching Padlock Bracket on Enclosure 4. Gasket Door (welded enclosures only) 5. Padlock bracket GM57166 Figure 9 Compression Latch with Padlock Bracket TT-1319 8/17...
- Page 6 Reconnect power to all devices in the system. Place all generator set master switches in the AUTO position. GM22703-A 1. Padlock bracket 2. Security cover latch Figure 10 Attaching Compression Latch and Padlock Bracket on Security Cover TT-1319 8/17...
-
Page 7: Parts List
GM57166 (qty. 1) Cover, security GM89254 Bracket, latch GM100212 Latch, compression (key operated) GM51992 Key, compression latch GM51993 Nut, 10-32 X-6210-1 Rubber, NEMA 3R Gasket (.25”T x .50”W) 25486 00350 * Cover with window is no longer available. TT-1319 8/17... - Page 8 Singapore 619159 KOHLERPower.com Phone (65) 6264-6422, Fax (65) 6264-6455 Availability is subject to change without notice. Kohler Co. reserves the right to change the design or specifications without notice and without any obligation or liability whatsoever. Contact your local Kohlerr generator set distributor for availability.
