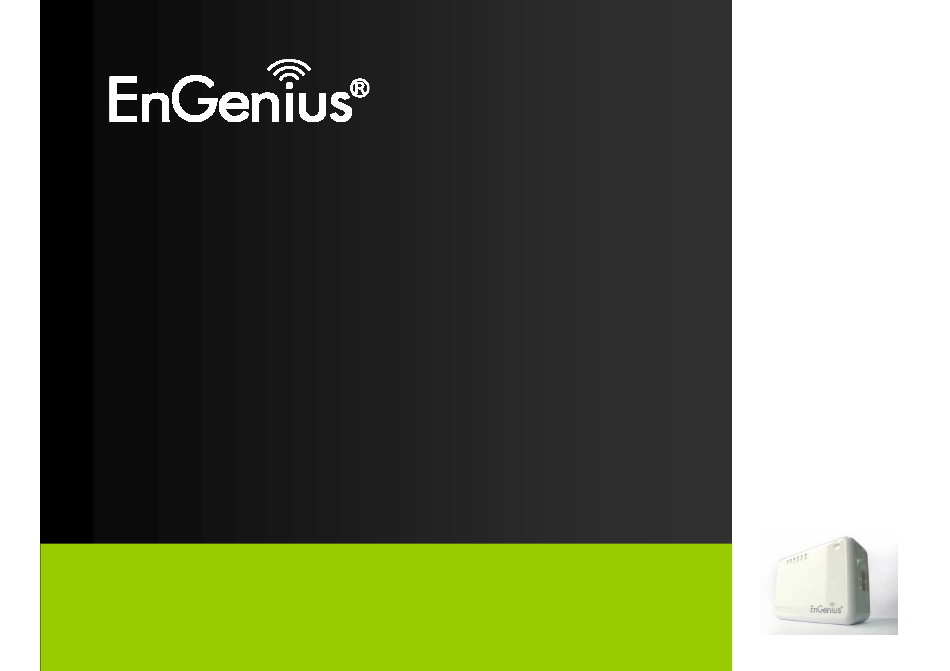

Wireless-N Pocket AP/Router
ETR9350
Ultra Portable Pocket AP (Travel Router)
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR9350 and is the answer not in the manual?

Questions and answers

Related Manuals for EnGenius TR9350

Summary of Contents for EnGenius TR9350

  • Page 1 Wireless-N Pocket AP/Router ETR9350 Ultra Portable Pocket AP (Travel Router) V1.0...

  • Page 2: Table Of Contents

    Package Contents ................................5 System Requirements ..............................5 Introduction..................................6 Features ..................................7 Hardware Overview ..............................8 Before you Begin ................................10 Considerations for Wireless Installation......................10 AP Router / AP / Client Bridge Modes .......................11 Check Network Settings (Windows XP/Vista).....................12 Hardware Installation ..............................15 Configuring Travel Router ............................17 Setup Wizard ..............................18 8.1.1 AP Router...
  • Page 3 ..............................101 8.2.6 Tools AP and Client Bridge Modes ...........................109 Client Bridge Mode ............................114 8.4.1 Wireless.............................114 Appendix A – FCC Interference Statement ..........................117 Appendix B – IC Interference Statement ..........................119...
  • Page 4 Revision History Version Date Notes October 21, 2009 Initial Release version...

  • Page 6: Package Contents

    1. Package Contents • EnGenius TRAVEL ROUTER Ultra Portable Pocket AP • AC Power Cord • RJ45 Ethernet LAN Cable • CD-ROM with User Manual and Setup Utility • QIG 2. System Requirements • RJ45 Ethernet Based or 3G USB Internet Connection •...

  • Page 7: Introduction

    4. Introduction TRAVEL ROUTER is the world’s smallest 11n Wireless Router and Access Point with 3G connectivity that brings superior convenience for users who need to create a wireless network to share the Internet, documents or multimedia files quickly between computers at speeds of up to 300Mbps.

  • Page 8: Features

    5. Features • WORLD’S SMALLEST AP Superior design to bring you the world’s smallest 11n AP Router for a true portable wireless solution • INTERNAL POWER No need to bring bulky power adapters for improved space saving convenience. • 3G MOBILE INTERNET SHARING Attach a 3G USB adapter to wirelessly share your 3G Internet connection to multiple computers.

  • Page 9: Hardware Overview

    6. Hardware Overview RJ45 3G USB This RJ45 port can be configured as WAN or LAN modes. Attach a 3G USB adapter to share your 3G Internet connection. WAN: Connect to the Internet using DSL/Cable modem. When 3G USB adapter is connected, RJ45 automatically is set to LAN mode. LAN: Connect to a computer, switch or hub.
  • Page 10 Description LED Lights icon Color – Blue Lights when 3G USB adapter is connected. Mobile 3G Blinks when 3G data transfer. Color – Blue Wireless LAN Lights when Wireless signal is activated. Blinks when Wireless data transfer. Color – Blue Blinks when WPS handshake is initialized.

  • Page 11: Before You Begin

    Here are some key guidelines to ensure that you have the optimal wireless range. 1. Keep the number of walls and ceilings between the EnGenius access point and other network devices to a minimum. Each wall or ceiling can reduce the signal strength, the degradation depends on the building’s material.

  • Page 12: Ap Router / Ap / Client Bridge Modes

    6.2 AP Router / AP / Client Bridge Modes There are three main modes to select from which will influence the installation of the TRAVEL ROUTER. This section will help you determine which mode works with your setup. AP Router Mode AP Router Mode allows you to share an Internet connection to multiple computers.

  • Page 13: Check Network Settings (Windows Xp/Vista)

    6.3 Check Network Settings (Windows XP/Vista) 1. Click Start button and open Control Panel. Windows XP Windows Vista...
  • Page 14 Windows XP, click [Network Connection] Windows Vista, click [View Network Status and Tasks] then [Manage Network Connections] Right click on [Local Area Connection] and select [Properties].
  • Page 15 4. Check “Client for Microsoft Networks”, “File and Printer Sharing”, and “Internet Protocol (TCP/IP) is ticked. If not, please install them. 5. Select “Internet Protocol (TCP/IP)” and click [Properties] 6. Select “Obtain an IP Address automatically” and “Obtain DNS server address automatically” and click [OK].

  • Page 16: Hardware Installation

    8. Hardware Installation AP Router Mode: One type of Internet connection is required. Please either connect the network cable from your DSL/Cable modem to the RJ45 port on the TRAVEL ROUTER or connect a 3G adapter to the USB port. Note: When 3G USB adapter is connected, RJ45 automatically is set to LAN mode.
  • Page 17 Connect the network cable to the RJ45 port. Wired Network Power On : Use the AC Power cord to connect TRAVEL ROUTER and outlet or any other power supplies to provide the electricity to the device.

  • Page 18: Configuring Travel Router

    9. Configuring Travel Router This section will show you how to configure the device using the web-based configuration interface. Please use your wireless network adapter to connect the TRAVEL ROUTER. Default Settings IP Address 192.168.0.1 Username / Password admin / admin Wireless Mode Enable Wireless SSID...

  • Page 19: Setup Wizard

    8.1 Setup Wizard 1. Open a web browser (Internet Explorer/Firefox/Safari) and enter the IP Address http://192.168.0.1 Note: If you have changed the default IP Address assigned to the TRAVEL ROUTER, ensure you enter the correct IP Address 2. The default username and password is admin. Once you have entered the correct username and password, click the OK button to open the web-base configuration page.
  • Page 20 3. You will see the following screen if the log on process is successful. 4. Click Wizard to enter the Setup Wizard. Then click Next to begin the wizard.
  • Page 22 5. Select the Operation Mode. Please ensure you have the proper cables connected as described in the Hardware Installation section.

  • Page 23: Ap Router Mode

    8.1.1 AP Router Mode a) The device will now automatically search for the correct Internet settings. b) The most appropriate WAN type will be determined and selected automatically. If it is incorrect, please select Others to set up the WAN settings manually.
  • Page 24 c) There are many WAN service types available. Please obtain the correct settings from your Internet Service Provider (ISP). Static IP Address If your ISP Provider has assigned you a fixed IP address, enter the assigned IP address, Subnet mask, Default Gateway IP address, and Primary DNS and Secondary DNS (if available) of your ISP provider.
  • Page 25 Dynamic IP Address The IP Address is allocated automatically. However some ISP’s will also recognize the MAC address and will reject connections if the MAC address does not match. If your ISP has recorded the MAC address of your computer’s Ethernet LAN card, please connect only the computer with the authorized MAC address, and click the Clone MAC Address button.
  • Page 26 PPP over Ethernet ISP requires an account username and password. PPP over Ethernet Username assigned to you by the ISP Username: Password: Password for this username. Service: You can assign a name for this service. (Optional) The maximum size of packets. MTU: Do not change unless mentioned by the ISP.
  • Page 27 Point-to-Point Tunneling Protocol (PPTP)
  • Page 28 PPTP WAN Interface Settings Select whether the ISP is set to Static IP or Dynamic IP addresses. WAN Interface Type: This is optional. Only required if specified by ISP Hostname: MAC: The MAC Address that is used to connect to the ISP. PPTP Settings Username assigned to you by the ISP Login:...
  • Page 29 Mobile 3G Please ensure your 3G USB card is connected to the TRAVEL ROUTER and has an active USIM card inserted. Mobile 3G Pin Code: Enter the Pin code for your USIM card if required. Enter the APN code for the network provider APN Code: Dial Number: Only required if specified by ISP...
  • Page 30 Layer-2 Tunneling Protocol (L2TP)
  • Page 31 L2TP WAN Interface Settings WAN Interface Type: Select whether the ISP is set to Static IP or Dynamic IP addresses. Hostname: This is optional. Only required if specified by ISP The MAC Address that is used to connect to the ISP. MAC: L2TP Settings Login:...
  • Page 32 Setup the level of wireless security to be used. EnGenius recommends the Highest level of security to be used. Note: 802.11n wireless speeds may not be achievable if the security is setup to Lowest and Low level. Enter the name of your wireless network.
  • Page 33 e) Check the settings are correct, and then click Reboot to apply the settings.

  • Page 34: Ap Mode

    8.1.2 AP Mode a) Select the level of wireless security to be used. EnGenius recommends the Highest level of security to be used. Note: 802.11n wireless speeds may not be achievable if the security is setup to Lowest and Low level.
  • Page 35 b) Check the settings are correct, and then click Reboot to apply the settings.

  • Page 36: Client Bridge Mode

    8.1.3 Client Bridge Mode a) In this mode, the TRAVEL ROUTER will connect to a wireless network as a client device. Please enter the SSID and security settings of that wireless network. b) Check the settings are correct, and then click Reboot to apply the settings.

  • Page 37: Web-Based Configuration

    8.2 Web-Based Configuration 8.2.1 System Status This page allows you to monitor the status of the device.
  • Page 38 Status Description of this device. Model: The device is currently in which mode. Mode: Uptime: The duration about the device has been operating without powering down or reboot. Current Date/Time: The device’s system time. If this is incorrect, please set the time in the Tools / Time page. Hardware version and Hardware information for this device.

  • Page 39: Internet

    WAN Settings Attain IP Protocol: Method used to connect to the Internet IP address: The WAN IP Address of the device. The WAN Subnet Mask of the device. Subnet Mask MAC address The MAC address of the device’s WAN Interface. Primary and Secondary Primary and Secondary DNS servers assigned to the WAN connection.

  • Page 40: Wireless

    LAN Settings IP address: The LAN IP Address of the device. Subnet Mask The LAN Subnet Mask of the device. Whether the DHCP server is Enabled or Disabled. DHCP Server WLAN Settings Channel: The wireless channel in use. ESSID: The SSID (Network Name) of the wireless network. (up to 4 SSID’s are supported) Wireless encryption is enabled for this SSID.
