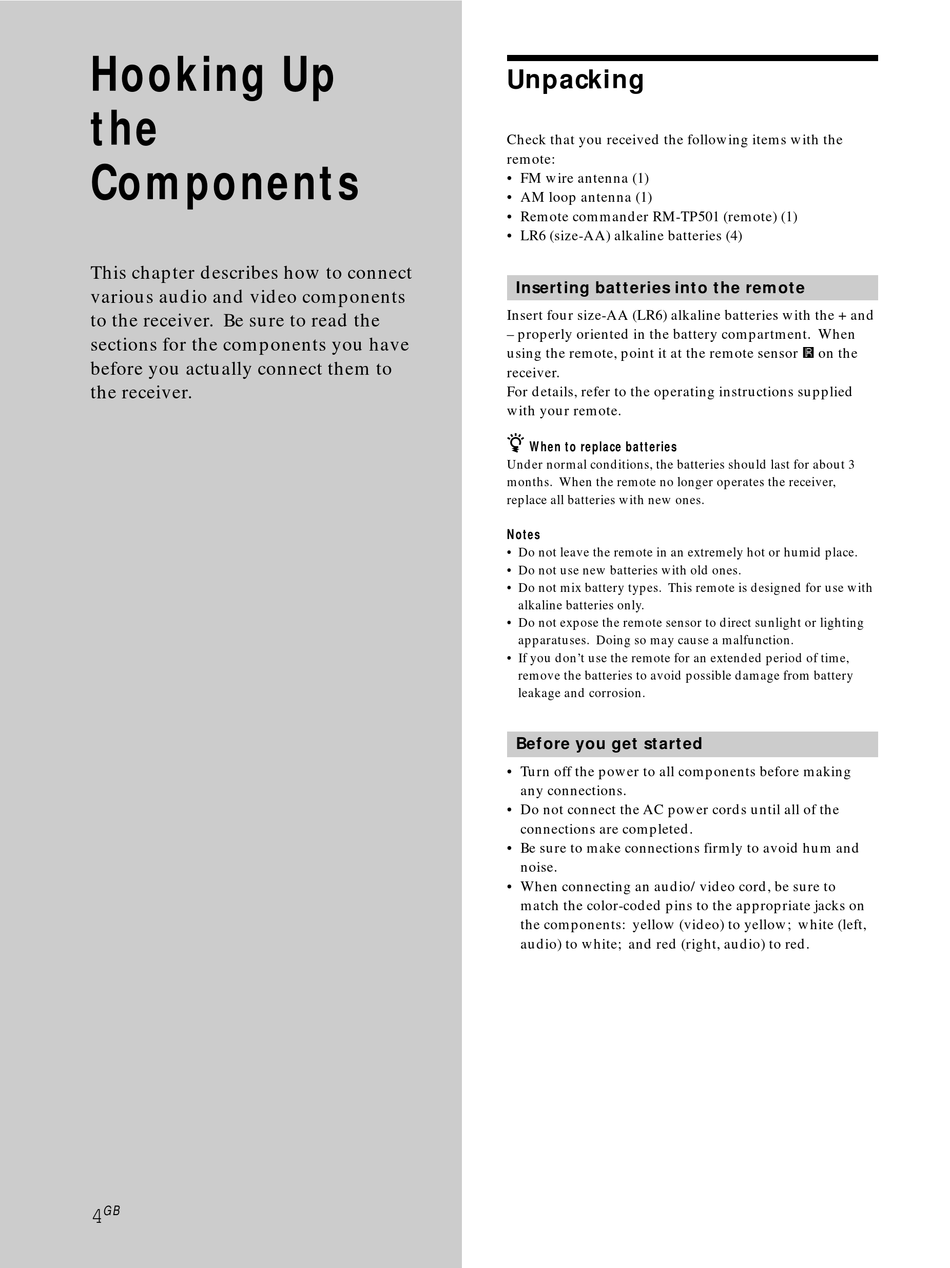

Hooking Up
the
Components
This chapter describes how to connect
various audio and video components
to the receiver. Be sure to read the
sections for the components you have
before you actually connect them to
the receiver.
4 GB

Unpacking

Check that you received the following items with the
remote:
• FM wire antenna (1)
• AM loop antenna (1)
• Remote commander RM-TP501 (remote) (1)
• LR6 (size-AA) alkaline batteries (4)
Inserting batteries into the remote
Insert four size-AA (LR6) alkaline batteries with the + and
– properly oriented in the battery compartment. When
using the remote, point it at the remote sensor g on the
receiver.
For details, refer to the operating instructions supplied
with your remote.
z
When to replace batteries
Under normal conditions, the batteries should last for about 3
months. When the remote no longer operates the receiver,
replace all batteries with new ones.
Notes
• Do not leave the remote in an extremely hot or humid place.
• Do not use new batteries with old ones.
• Do not mix battery types. This remote is designed for use with
alkaline batteries only.
• Do not expose the remote sensor to direct sunlight or lighting
apparatuses. Doing so may cause a malfunction.
• If you don't use the remote for an extended period of time,
remove the batteries to avoid possible damage from battery
leakage and corrosion.
Before you get started
• Turn off the power to all components before making
any connections.
• Do not connect the AC power cords until all of the
connections are completed.
• Be sure to make connections firmly to avoid hum and
noise.
• When connecting an audio/video cord, be sure to
match the color-coded pins to the appropriate jacks on
the components: yellow (video) to yellow; white (left,
audio) to white; and red (right, audio) to red.
