- Page 1 HOLOGRAPHIC 50z/50 INSTRUCTION MANUAL INTELLIGENT DISPLAY Nanjing DseeLab Digital Technology Ltd.
- Page 2 Grab your eyes with brilliant colors Nanjing DseeLab Digital Technology Ltd.
- Page 3 Do not disassemble the device, insert TF card without permission! To ensure that device is not damaged, For forwarding purpose, please use the following courier: SF express KDeppon KUAYUE-express...
- Page 4 List Goods Quantity Holographic Intelligent Display Dsee-50z/Dsee-50 Power adapter Remote control Wall-hung fixing parts Wall-hung expansion screws Wall-hung fixed gasket Warranty Card Certificate User manual...

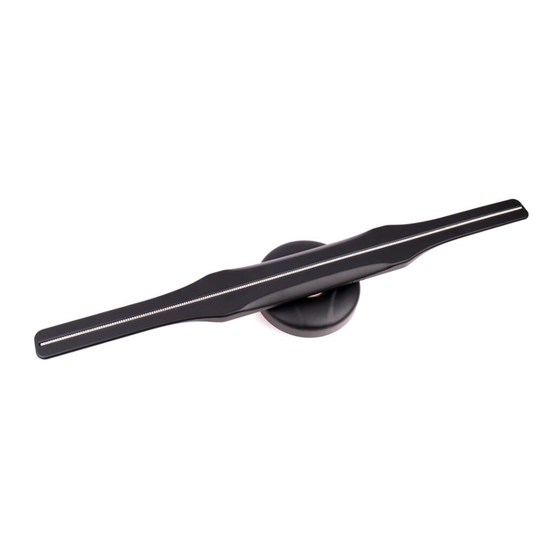

- Page 5 Product instruction Holographic intelligent screen Dsee-50z / Dsee-50 is one display device which use of human visual persistence (POV) technology, rotating imaging through one belt of ultra-high-density LED light, then presenting 3D visual effects. This device has the character of ultra-low power consumption, ultra-high attractiveness, easy to carrying and high cost performance etc.
- Page 6 Description of back interface Indicator light Settings button Slave interface2 Slave interface1 Power interface Indicator light: Indicate the power, ON/OFF, Mode-switching and so on. Setting button: Switching Mode, Pairing remote control . Slave interface: Used in slave mode (See "Slave mode") Power interface: Plug in the power adapter.
- Page 7 Remote control instruction STOP Next Previous Renew Brightness control area 100% ON： Run the device, switch stand-by status to operating status OFF： Stop the device, switch operating status to stand-by status Previous： Switch the playing screen to previous one Next： Switch the playing screen to next one Renew：...
-
Page 8: Connect Power
Operation Connect power: connect power adapter to the power interface of devcie, power on, the front side can see the lamp bead slowly light up and out, the backside indicator is red. Match remote: when device is in stand-by status, push the setting button on the backside, indicator light turns red to blue, point remote control to device and long press 100% button in brightness control area, blue light flashes and turns red, pairing successful. -
Page 9: Operation
Operation Switch display content: point remote control to devcie, press “>>”, switch to next file and display it Point remote control to device, press “<<”, switch to previous file and display it. Mode switch Device can switch between two modes, host mode and slave mode. -
Page 10: Play Settings
Play settings It needs to be connected with wifi, then using PC software to do play content settings, play mode settings, and play order. Plz follow DSEELAB™-Hologram LED FAN-User manual to install PC software. -
Page 11: Installation
Installation instructions Dsee-50/Dsee-50z can be installed on the wall and bracket. This installation is just about being installed on the wall, if you need to be installed on the bracket, plz consult with distributors. Wall-hung fixing part Installation diagram Wall-hung fixing parts You need expansion screws or common screws to fix the wall-hung fixing parts on the wall directly. - Page 12 POV CONSOLE...
-
Page 13: Download Software
Operation Download software Download the software via http://www.dseelab.com DSEE.LAB The device is not connected, please check the network Model： Select the model The device is not connected SD card remaining capacity: 4G Connect the device Connect the device Playlist Screen brightness... -
Page 14: Connect The Device
DSEE.LAB The device is not connected, please check the network Model： dsee-50z The device is not connected SD card remaining capacity: 4G Connect the device Connect the device Playlist Screen brightness Inquire malfunction Timing Connect the device PC connected to device WiFi, Select the device model to connect the device,if it reveals connect failed, click the button of inquire malfunction to check the error. - Page 15 DSEE.LAB Edit Down Empty File Name Size Cycles Operation xxx.mp4 1.1M The device is connected SD card remaining capacity: 4G xxx.jpg 1.1M Connect the device xxx.mp4 1.1M Playlist Screen brightness Timing Playlist Edit： Select the corresponding playback file, click the Edit button, modify the play times.
-
Page 16: Screen Brightness
DSEE.LAB Screen brightness The device is connected SD card remaining capacity: 4G Connect the device Playlist Screen brightness Timing Screen brightness Click the button to select the brightness. DSEE.LAB Timing Timing start-up ： ： The device is connected SD card remaining capacity: 4G Timing shutdown Connect the device ：... - Page 17 Configuration of the Phone APP...
-
Page 18: Software Downloads
Operation Software downloads Download the software via http://www.dseelab.com Wifi connection Make sure the phone is connect with the device wifi Return Setting Device Model Click to select your device model Select the device model Click the Settings button in the upper right corner of the... -
Page 19: Connect Device
The deviceis is connected Connect device After connect the device wifi, click "ON" to open the device. Upload Video and The device is connected Image Open the playlist, choose ,click the upload button to select the file, enter the file name and click OK. Playlist xxxx.mp4 Cycles ：1... -
Page 20: Delete Single File
xxxx.mp4 Delete single file: Cycles：1 Left slide the corresponding xxxx.mp4 Cycles：4 file, delete button will xx.mp4 Cycles：6 appear, clicked to complete the deletion xxxx.mp4 Cycles：10 xxxx.mp4 Cycles：1 File Name: xxxx.mp4 xxxx.mp4 Cycles：4 ： Cycles xx.mp4 Cycles：6 Cancel xxxx.mp4 Cycles：10 Setting play times of single file Left slide the corresponding file, edit button will appear, click to edit dialog box (Note: 0 for a single file loop)
