Panasonic TX-25MK1F Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. TV
  5. TX-25MK1F
  6. Service manual

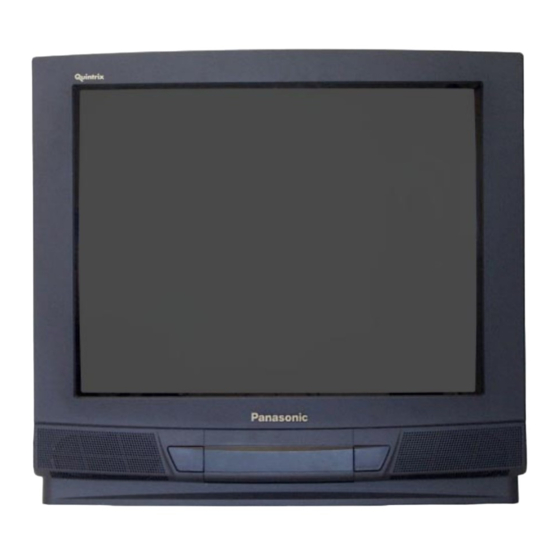

Panasonic TX-25MK1F Service Manual

Euro-4 chassis colour television
Hide thumbs Also See for TX-25MK1F:
Table of Contents

Advertisement

Quick Links

Download this manual
SPECIFICATIONS
Power Source:
220-240V a.c., 50Hz
Power Consumption:
85W
Aerial Impedance:
75Ω unbalanced, Coaxial Type
Standby Power
Consumption:
1,8W
Receiving System:
PAL-I, B/G, H, D/K, PAL-525 / 60
SECAM L/L', B/G, D/K
M.NTSC
NTSC (AV only)
Receiving Channels:
VHF E2-E12
VHF H1-H2 (ITALY)
VHF A-H (ITALY)
VHF R1-R2
VHF R3-R5
VHF R6-R12
UHF E21-E69
CATV (S01-S05)
CATV S1-S10 (M1-M10)
CATV S11-S20 (U1-U10)
CATV S21-S41 (HYPERBAND)
Intermediate Frequency:
Video
38,9MHz, 34MHz
Sound
32,9MHz, 33,16MHz, 33,4MHz
40,4MHz, 32,4MHz (A2 STEREO)
33,05MHz, 34,05MHz (NICAM)
32,66MHz, 32,4MHz (CZECH STEREO)
Colour
34,47MHz (PAL)
34,5MHz, 34,65MHz (SECAM)
Video/Audio Terminals:
AUDIO MONITOR OUT
Audio (RCAx2)
AV1 IN
Video (21 pin)
Audio (21 pin)
RGB (21 pin)
AV1 OUT
Video (21 pin)
Audio (21 pin)
AV2 IN
Video (21 pin)
Audio (21 pin)
S-Video IN
(21 pin)
AV2 OUT
Video (21 pin)
Audio (21 pin)
Selectable Output (21 pin)
AV3 IN
Audio (RCAx2)
Video (RCAx1)
28,2kV ± 1kV
High Voltage:
Picture Tube:
A59ECF50X42
Audio Output:
2 x 15W (Music Power)
8Ω Impedance
Headphones:
8Ω Impedance
Accessories supplied:
Remote Control
2 x R6 (UM3) Batteries
Dimensions:
Height:
535mm
Width:
601mm
Depth:
440mm
Net Weight:
25kg
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
NOTE:
This Service Manual should be used in conjunction with the
EURO-4 technical guide.
All manuals and user guides at all-guides.com
500mV rms1kΩ
1V p-p 75Ω
500mV rms 10kΩ
1V p-p 75Ω
500mV rms 1kΩ
1V p-p 75Ω
500mV rms 10kΩ
Y: 1V p-p 75Ω
C: 0,3V p-p 75Ω
1V p-p 75Ω
500mV rms 1kΩ
500mV rms10kΩ
1V p-p 75Ω
59cm
Colour Television
EURO-4 Chassis
CARACTÉRISTIQUES
Alimentation:
220-240V a.c., 50Hz
Consommation:
85W
Impédance d'antenne:
75Ω asymétrique sur prise coaxiale
Standby Consommation:
1,8W
Systéme de réception:
PAL-I, B/G, H, D/K, PAL-525 / 60
SECAM L/L', B/G, D/K
M.NTSC
NTSC (Entrée AV seulement)
Canaux de réception:
VHF E2-E12
VHF H1-H2 (ITALY)
VHF A-H (ITALY)
VHF R1-R2
VHF R3-R5
VHF R6-R12
UHF E21-E69
CATV (S01-S05)
CATV S1-S10 (M1-M10)
CATV S11-S20 (U1-U10)
CATV S21-S41 (HYPERBAND)
Fréquency Intermédiaire:
Video
38,9MHz, 34MHz
Sound
32,9MHz, 33,16MHz, 33,4MHz
40,4MHz, 32,4MHz (A2 STEREO)
33,05MHz, 34,05MHz (NICAM)
32,66MHz, 32,4MHz (CZECH STEREO)
Couleur
34,47MHz (PAL)
34,5MHz, 34,65MHz (SECAM)
Les bornes vidéo/audio:
SORTIE AUDIO MONITOR
Audio (RCAx2)
Entrée AV1 (21 brioches)
Video (21 pin)
Audio (21 pin)
RGB (21 pin)
Sorties AV1 (21 brioches)
Video (21 pin)
Audio (21 pin)
Entrée AV2 (21 brioches)
Video (21 pin)
Audio (21 pin)
S-Video IN
(21-pin)
Sorties AV2 (21 brioches)
Video (21 pin)
Audio (21 pin)
Être sélectionnée
Entrée AV3
Audio (RCAx2)
Video (RCAx1)
28,2kV ± 1kV
Tension d'anode:
Tube image:
A59ECF50X42
Sortie Audio:
2 x 15W (Music Power)
8Ω Impédance
Casque d'écoute:
8Ω Impédance
Accessories fournis:
Télécomande
R6 (UM3) x 2 Piles
Dimensions:
Hauteur:
535mm
Largeur:
601mm
Profondeur:
440mm
Poids (NET):
25kg
Les caractéristiques techniques sont susceptibles de modification sans
Préavis.
Le poids et les dimensions indiqués sont approximatifs.
ORDER No. 99-SM-005
TX-25MK1F
500mV rms1kΩ
1V p-p 75Ω
500mV rms 10kΩ
1V p-p 75Ω
500mV rms 1kΩ
1V p-p 75Ω
500mV rms 10kΩ
Y: 1V p-p 75Ω
C: 0,3V p-p 75Ω
1V p-p 75Ω
500mV rms 1kΩ
500mV rms10kΩ
1V p-p 75Ω
59cm
