Rigging
F R i
S P E A K E R
S Y S T E M S

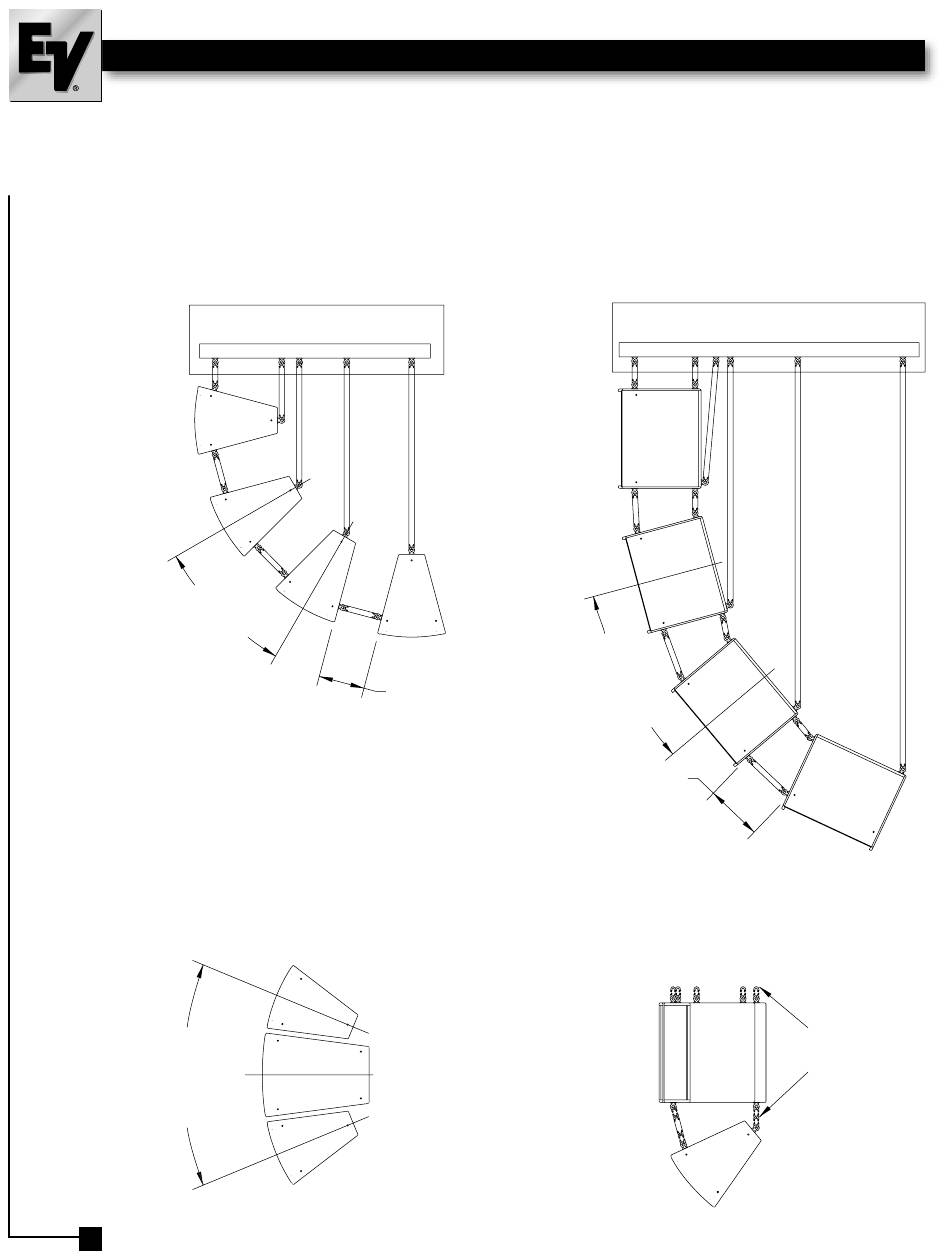

Rigging Options
VERTICAL HANG
(Side Views)
SPLAY ANGLE SHOULD BE
EQUAL TO APPLICABLE HORN
PATTERN ANGLE
(i.e. 60 OR 40)
HORIZONTAL HANG
(Top View)
SPLAY ANGLE SHOULD BE
EQUAL TO APPLICABLE HORN
PATTERN ANGLE
(i.e. 60 OR 40)
9
GRID, STRUCTURAL SUPPORT,
CABLE(S) BY OTHERS
CABINET
SPACING TO
BE AS GREAT
AS POSSIBLE
TO SATISFY
APPLICATION
CABINET SIDE DRAFT ANGLES
DESIGNED FOR NOMINAL
ARRAY PERFORMANCE
WHEN "TIGHT PACKED" WITH
FRi 1815 SUB BETWEEN TWO
FULL RANGE CABINETS.
NON-ROTATED HORNS
GRID, STRUCTURAL SUPPORT,
SPLAY ANGLE
SHOULD BE EQUAL
TO APPLICABLE HORN
PATTERN ANGLE
(i.e. 60 OR 40)
CABINET SPACING TO BE
AS GREAT AS POSSIBLE TO
SATISFY APPLICATION
HORIZONTAL HANG
(Side View)
CABLE(S) BY OTHERS
GRID, STRUCTURAL
SUPPORT, CABLE(S)
BY OTHERS
