Apollo PEX 69PTKH00143 Instruction Sheet

PEX
INSTRUCTION SHEET
PEX

Crimp Tools

1. Cut tubing end squarely. Check for and
remove any burrs.
4. Check for proper crimp with the
Go/ No-Go gauge.
To remove and replace jaws:
1
1. With the handles. fully
open, press side release
spring upward until the
hook is above the jaw pin.
2. Slide crimp ring over end of tubing.
Insert fitting into end of tubing until it
stops. Position the crimp ring 1/8" to
1/4" from the end of the tubing and
over the ribs of the fitting.

Apollo PEX Crimp Rings

APXCR3810PK
APXCR1210PK
APXCR1225PK
APXCR1250PK
APXCR12100JR
APXCR3410PK
APXCR3425PK
APXCR34100JR
APXCR15PK
APXCR125PK
For 69PTKH0015K only
2
2. Slide jaw out of position
and remove.
3/8" 10 Pack
1/2" 10 Pack
1/2" 25 Pack
1/2" 50 Pack
1/2" 100 Pack Jar
3/4" 10 Pack
3/4" 25 Pack
3/4" 100 Pack Jar
1" 5 Pack
1" 25 Pack
(Jaws cannot be replaced on any other Apollo crimp tools)
3
3. With the side release
spring pressed upward,
slide new jaw into place
and release the spring.

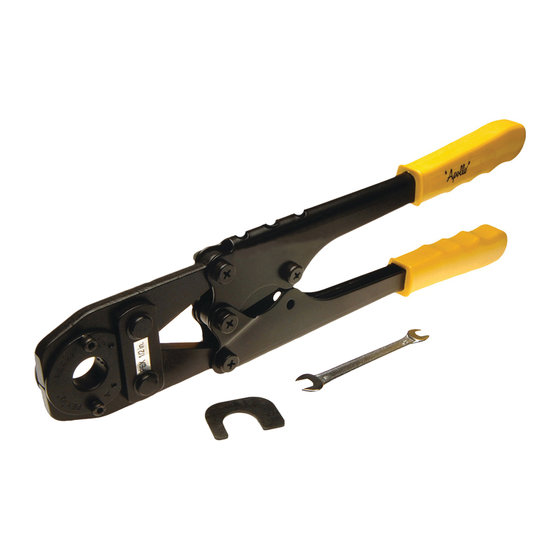

69PTKH00143 - 1/2"
69PTKH00144 - 3/4"
69PTKH0014C - 1/2" & 3/4"
69PTKH0015K - 3/8"-1"
3. Place the crimping end of tool around
the crimp ring and press the handles
together.

Apollo PEX PRO Crimp Rings

APXCR12LT 1/2"
APXCR12LTJR
1/2"
APXCR34LT 3/4"
APXCR34LTJR 3/4"
If you have a 69PTKH0015K that does not have spring
loaded jaws, but jaws that are secured with screws, sim-
ply loosen the screws located at the center of the jaws.
Remove the jaws and slide the jaws you need into place.
Replace the screws at the center of the jaws and tighten.
10 Pack
75 Pack Jar
10 Pack
50 Pack Jar
