Owner's
Manual

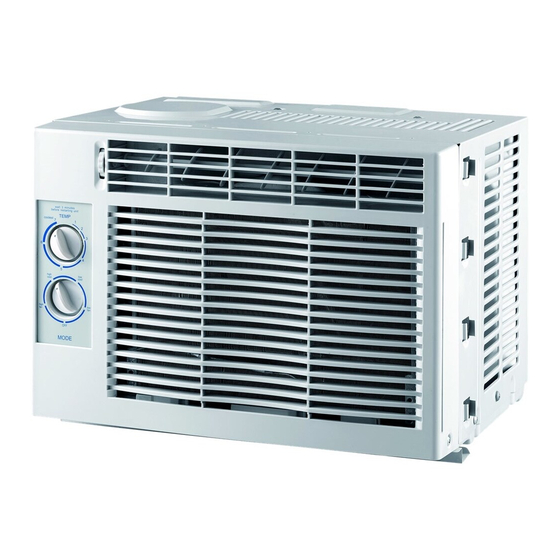

Window
Air Conditioner
G17-5MCVWAC1
G16-5MCVWAC
Write the model and serial numbers below for your records:
Model #
Serial #
Date Purchased
Please read the entire manual carefully to
ensure proper operation of the product.
To find an electronic version of this manual,
please visit www.greeproducts.com
Phone: 1-866-658-0466
Email: customerservice@greeproducts.com
Advertisement
Related Manuals for Gree G17-5MCVWAC1
Summary of Contents for Gree G17-5MCVWAC1
- Page 1 Owner’s Manual Window Air Conditioner G17-5MCVWAC1 G16-5MCVWAC Write the model and serial numbers below for your records: Model # Serial # Date Purchased Please read the entire manual carefully to ensure proper operation of the product. To find an electronic version of this manual, please visit www.greeproducts.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE IMPORTANT SAFETY INFORMATION ....................3-4 INSTALLATION INSTRUCTIONS ......................5-10 OPERATING INSTRUCTIONS ....................... 11 CLEANING & MAINTENANCE ......................12 BEFORE YOU CALL ........................13-14 WARRANTY ............................15 NOTICE: Pictures within this manual are for reference only. Please refer to the actual product for the appearance. -
Page 3: Important Safety Information
SAFETY INFORMATION SYMBOL INDICATES A HAZARDOUS SITUATION WHICH IF NOT AVOIDED COULD RESULT IN SERIOUS INJURY OR DEATH. Please read and understand this entire manual before attempting to assemble, operate or install your window air conditioner unit. Use this air conditioner only as instructed in this manual. While this manual covers a wide variety of troubleshooting, the instructions are not meant to cover every situation that may occur. - Page 4 SAFETY INFORMATION SAFETY INFORMATION Electrical Information The power cord with this air conditioner contains a current detection device designed to reduce the risk of fire. Please refer to the section “operation of current device” for details. In the event that the power cord is damaged, it cannot be repaired. It must be replaced with a power cord from the product manufacturer.
-
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS Before You Begin CAUTION When handling the unit be careful to avoid cuts from any sharp metal edges and the aluminum fins on the front / rear coils. IMPORTANT : Save these instructions for future reference. Product failure due to any improper installation is not covered under the One Year Limited Warranty. - Page 6 INSTALLATION INSTRUCTIONS Where to Install the Unit • Ensure there is no obstruction near the air-inlet or air-outlet. • Select a window where the condensation water can be dispersed easily out the back of the unit and won’t affect others. •...
- Page 7 INSTALLATION INSTRUCTIONS Parts and Tools Needed Upper Guide Rail location* Air-Outlet Frame Temp Dial Mode Dial Air-Inlet Panel Power Plug *Upper guide rail may be attached on some units Parts List Window Unit Flexible Screen (2) Upper Guide Rail Top Mounting Rail Seal Strip Flathead screwdriver Foam Top Gasket Window Sash Seal...
- Page 8 INSTALLATION INSTRUCTIONS Upper Guide Rail Upper Guide Rail* Note: For safety, all four screws must be SECURELY Remove fastened. Mounting backing from seal Rail Seal strip Strip To install the Upper Guide Rail, peel off the back side of the Top Mounting Rail Seal Strip and align it on the bottom edge of the upper guide rail.
- Page 9 INSTALLATION INSTRUCTIONS NOTE: Top Rail and sliding panels at each side are offset to provide the proper pitch to the rear of .8 cm (5/16”). This is necessary for proper condensed water utilization and drainage. If you are not using the side panels for any reason, this pitch to the rear must be maintained. Front View Upper Guide Horizontal or inclined about 3°...
- Page 10 INSTALLATION INSTRUCTIONS Foam Top Gasket (Without Adhesive) Insert the Foam Top Gasket between the glass and the window to prevent air from getting into the room. If the strip does not properly fit to your window, obtain appropriate material at a local store to provide a proper seal.
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS Dial Operation Temp Dial Mode Dial Cool Mode • Rotate to Low Cool or High Cool. Mode Dial • To set desired room temperature, rotate to the desired setting. Range of cooling is 1 to 7, Temp Dial with 7 being coolest temperature. -
Page 12: Cleaning & Maintenance
CLEANING AND MAINTENANCE WARNING • Turn off the air conditioner and disconnect the power cord from outlet before cleaning the air conditioner to avoid electric shock. • Do NOT wash the air conditioner with water to avoid electric shock. • Do NOT use harsh cleansers to clean the air conditioner. •... -
Page 13: Before You Call
BEFORE YOU CALL WARNING If the below errors occur, please turn off the air conditioner and disconnect the power cord from the outlet immediately. Please contact Customer Service at once. • Power cord is overheating or damaged. • Abnormal sound during operation. •... - Page 14 Improper installation. Refer to installation instructions. Unit is removing a large quantity of moisture from the room. This Water dripping outside when unit is cooling occurrence is normal in excessively humid, hot weather. IF THESE SOLUTIONS FAIL, PLEASE CALL 1-866-658-0466 FOR GREE CUSTOMER SERVICE...
-
Page 15: Warranty
Air Conditioner unit. This warranty does not cover, and is not intended to exclude any liability on the part of GREE, whether under this warranty or implied by law for any indirect or consequential damages for breach of warranty. - Page 16 Gree Customer Service Hours: 9am–5pm CST Monday–Friday Phone: 1-866-658-0466 Email: customerservice@greeproducts.com Website: www.greeproducts.com M110516-5MWAC...
