  • Page 1 USER MANUAL Mobeye WaterGuard-FS ® CM4300FS SW version 1.n...

  • Page 3: Table Of Contents

    Connect an external power supply (optionally) Connect a sensor to input 2 (optionally) Network connection and program mode 4. Programming when using the Mobeye SIM and portal Sign up in the Mobeye Internet Portal Register the Mobeye SIM card Configuration and synchronisation...
  • Page 4 • Do not let it fall from height. • Do not use in an environment where any inflammable gases, vapors or dust are present or could be present. • Repair of the device may only be carried out by people, trained for Mobeye ® repair.

  • Page 5: General Description

    In order to activate the device, a few steps are to be followed. First of all, you need to insert a SIM card. With the Mobeye SIM card, the WaterGuard-FS uses the 4G LTE-M network. This network has a strong network coverage, deep penetrability in buildings and also works in remote areas.

  • Page 6: Standard Behaviour

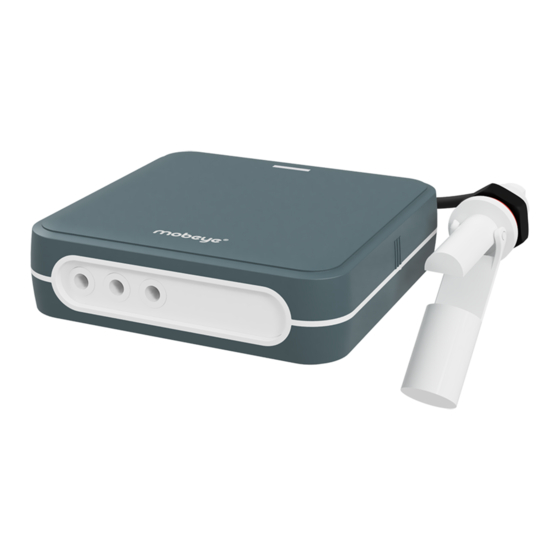

    The Mobeye WaterGuard-FS with Mobeye SIM card and registered on the Mobeye Internet Portal, has the following behaviour as factory settings: - When the float sensor is closed the Mobeye WaterGuard-FS sends an alarm message to the Mobeye Internet Portal. The Portal forwards the alarm as push notification, call (spoken message), text message and/or e- mail to the ‘alarm contacts’.

  • Page 7: Mobeye Waterguard-Fs With Own Sim Card

    The Mobeye WaterGuard-FS, equipped with your own SIM card, has the following standard behavior as factory settings: - When the float sensor is closed, the Mobeye WaterGuard-FS sends an alarm SMS text message and calls the phone numbers programmed in by the user.

  • Page 8: Getting Started

    3. GETTING STARTED To get started with the Mobeye WaterGuard-FS, at least the following steps need to be taken in the following order: 1. Open the casing and insert the SIM card 2. Connect the float sensor 3. Insert the batteries 4.

  • Page 9: Connect The Float Sensor

    When using the Mobeye SIM card: The Mobeye SIM card is PIN code secured and will only work in a Mobeye device. Please do not place it in another device. When using your own SIM card: An own SIM card has a “micro” format, is suitable for the 2G network and can make calls and send text messages.

  • Page 10: Connect An External Power Supply (Optionally)

    3.4 CONNECT AN EXTERNAL POWER SUPPLY (OPTIONALLY) Although the WaterGuard-FS is designed to run on batteries, it is possible to use an external power supply. In this mode the module is always connected with the mobile network and therefore always in program mode. When the power fails, the batteries take over and a power failure alarm message is sent.

  • Page 11: Network Connection And Program Mode

    It can also been forced to establish a network connection by re-inserting the batteries or pressing the button at the back for 5 seconds. If the WaterGuard-FS is connected to an external power supply, it has continuous network connection and is permanently in program mode.

  • Page 12: Programming When Using The Mobeye Sim And Portal

    Follow the instructions on the screen. You will receive an e-mail to confirm the new account. After confirmation login on the portal. If you do not receive this e-mail, please check your spam box or ask Mobeye (info@mobeye.com). 4.2 REGISTER THE MOBEYE SIM CARD...

  • Page 13: Configuration And Synchronisation

    4.3 CONFIGURATION AND SYNCHRONISATION The device settings can be programmed in the Mobeye Internet Portal. In this way you prepare the settings, to be picked up by the device. Since the Mobeye device is leading in the communication between the portal and the device, the data synchronisation is done after: 1) any message to the portal (e.g.
  • Page 14 Device Settings The device settings can be changed via the Mobeye Internet Portal. To do this, click on the "edit" icon and type in the security code (factory setting is "1111"). See chapter 5 for the description per setting. After saving the new settings, they must be retrieved by the device (synchronized).

  • Page 15: How To Activate The Waterguard-Fs

    How to activate the WaterGuard-FS After the previous steps the Mobeye WaterGuard-FS is ready for use. It is armed automatically. In order to switch off (disarm) the WaterGuard-FS: - Press the button at the backside for 1 second. The green LED switches off to indicate the disarmed status.

  • Page 16: System Reset

    The security code is back to factory settings as well. The SIM card is now disconnected and is visible on the "Add device" screen. The SIM card can be used again in another (or the same) Mobeye device in combination with the portal.

  • Page 17: Possible Settings

    When using Mobeye Internet Portal: an unlimited number of contacts can receive the alarm messages. These are set in the portal. When using your own SIM card: the Mobeye WaterGuard-FS can inform 5 telephone numbers in the event of an alarm. It is mandatory to set at least one number (TEL1).

  • Page 18: Input Type

    0 minutes (no repeat). 5.7 ALARM RESTORE MESSAGE In factory setting, the Mobeye WaterGuard-FS will send a recovery message on the water sensor, but does not send a recovery message if an input 2 alarm has been restored.

  • Page 19: Power Failure Message

    4 hours. 5.10 AUTOMATIC ARMING / DISARMING The Mobeye WaterGuard-FS only works if the unit is armed, which is done via the on/off button. It is possible to automatically arm and disarm the unit, based on an arming and/or disarming time scheme. Two schemes can be entered, which can be assigned to the days in the week (e.g.

  • Page 20: Buttonlock

    5.13 CALL AND/OR SMS (OWN SIM CARDS) When using your own SIM card, by default the WaterGuard-FS will call and send SMS text messages. It is possible to suppress one of these. By turning off the CALL, the unit will only send SMS text messages. By turning off the...

  • Page 21: Programming When Using Own Sim Card

    When using your own SIM card, the settings are programmed in by SMS text messages: 1. Make sure the WaterGuard-FS is in program mode (please refer to 6.1). 2. Send an SMS text message with the (security) code and the command.

  • Page 22: Program At Least One Telephone Number

    In chapter 7.1 all possible SMS commands are listed. 6.3 PROGRAM AT LEAST ONE TELEPHONE NUMBER The Mobeye WaterGuard-FS is able to send messages up to 5 telephone numbers. The first telephone number (TEL1) is mandatory. This number will receive, next to alarm message, also system messages such as battery low and keep-alive message.

  • Page 23: List Of Sms Commands For Programming With Own Sim

    Interval ‘test SMS’ TEST: 0 ··· 30 (days) Time test message TESTTIME: hhmm Identification text NAME: 20 characters Mobeye Input type water sensor TYPEIN1: NO, NC Input type input 2 TYPEIN2: NO, NC Delay on water sensor DELAY1: 0 ··· 999 (sec)
  • Page 24 Setting SMS command Options Default value SMS on/off SMS: ON, OFF Alarm text water alarm TEXT1: 20 characters Water alarm Text water restore TEXT2: 20 characters Water level OK Alarm text input 1 TEXT3: 20 characters Alarm 1 Alarm text input 2 TEXT4: 20 characters Alarm 2...

  • Page 25: How To Activate The Waterguard-Fs

    7.2 HOW TO ACTIVATE THE WATERGUARD-FS After the previous steps the Mobeye WaterGuard-FS is ready for use. It is armed automatically. In order to switch off (disarm) the WaterGuard-FS: - Press the button at the backside for 1 second. The green LED switches off to indicate the disarmed status.

  • Page 26: Sms Reports When Using Own Sim Card

    The signal strength of the used mobile network can be requested. If the network is weak, it is advised to use a SIM card of another network provider or an external antenna (a Mobeye accessory). The signal strength can be requested by sending following SMS text message:...

  • Page 27: Technical Messages

    7.5 TECHNICAL MESSAGES In the event of technical issues the telephone number programmed in at position 1 (TEL1) receives an SMS message. Possible technical messages are: Message Reason Low batteries, external power Power is available, batteries need to be replaced. supply OK No external power supply, No external power supply, batteries are able to take...

  • Page 28: Status Feedback

    8. STATUS FEEDBACK LED pattern Status Required action Blinking green, 1 second Module not configured Configure at least one on / 1 second off telephone number. 1 green flash every 3 Module is switched on, No action required. seconds powered by batteries Green LED stays on Module is switched on, No action required.
  • Page 29 Publisher. Reprinting, even in summary, is prohibited. This user manual meets the technical requirements at the moment of printing. Changes in technology and equipment are reserved. © Copyright 2021 by Mobeye, version CM4300FS-EN210601...
