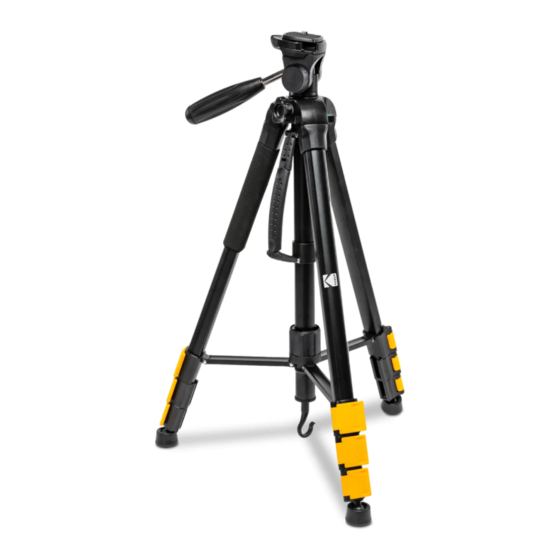

- Page 1 KODAK PHOTO GEAR TRIPOD + MONOPOD 70" / 178 cm User Guide...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION SAFETY PRECAUTIONS PACKAGE CONTENTS ABOUT THE KODAK 70" / 178 CM TRIPOD + MONOPOD PRODUCT OVERVIEW TECHNICAL SPECIFICATIONS WARRANTY INFORMATION 9-10 GET IN TOUCH TO SEE THIS GUIDE IN FRENCH, ITALIAN, GERMAN, OR SPANISH, PLEASE VISIT WWW.KODAKPHOTOPLUS.COM... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the KODAK 70" / 177 cm 2-in-1 Tripod + Monopod. This User Guide is intended to provide you with guidelines to ensure that operation of this product is safe and does not pose risk to the user. Any use that does not conform to the guidelines described in this User Guide may void the limited warranty. -
Page 4: Package Contents
YOUR SMARTPHONE TO DOWNLOAD THE FREE KODAK TRIPOD/MONOPOD E-GUIDE! ABOUT THE KODAK 70" / 178 CM TRIPOD + MONOPOD • Unique 2-in-1 design delivers a tripod with an integrated monopod • Tripod + Monopod has fully adjustable 4-section legs, removable Center Column converts to a 5-section monopod, and 3-way swivel pan head is included. -
Page 5: Product Overview
PRODUCT OVERVIEW 1. Quick-release lever 2. Monopod 3. Monopod locking knob 4. Foam grip 5. Hook 6. Center brace locking ring 7. Rubber foot 8. Leg locks 9. Folding center column handle 10. Swivel pan head handle 11. Camera mount platform tilt knob 12. - Page 6 PRODUCT OVERVIEW (CONTINUED) 1. Adjustable Legs a. Unlatch the leg locks at the bottom of the leg. b. Pull out the sections of the leg until it reaches your desired length. c. Use the center brace locking ring to adjust the center portion of the tripod up and down to maximize stability.
- Page 7 e. To adjust the central column/monopod: i. Hold the central column/monopod in one hand and grasp the bottom with the other. ii. Turn the bottom a quarter-turn to the left and extend the section. The full column may extend all at once, in which case you can skip step iii and proceed to step iv.
- Page 8 3. 3-Way Swivel Pan Head a. 1-Way - To adjust the vertical tilt of the camera mount plate: i. Loosen the vertical tilt handle. ii. Adjust to the desired angle. iii. Tighten the vertical tilt handle. iii. b. 2-Way - To adjust the horizontal pan of the camera mount plate: i.
- Page 9 4. Mounting a Camera a. Pull the quick-release lever on the side of the head to release the plate. b. Align the screw adapter with the corresponding threading on your camera. c. Holding the camera in one hand, rotate the plate to the right until it is securely attached to the camera.
- Page 10 6. Mounting a Smartphone a. Align the screw adapter with the corresponding threading on the smartphone adapter. b. Holding the smartphone adapter in one hand, turn the thumb wheel to the right until it is securely attached to the adapter. c.
-
Page 11: Technical Specifications
Tripod/Monopod Weight: 1.0 lbs (0.45 kg) WARRANTY INFORMATION LIMITED WARRANTY ON KODAK 70" / 178 cm 2-IN-1 TRIPOD + MONOPOD THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. -
Page 12: Get In Touch
WHAT DOES THIS WARRANTY COVER? This limited warranty covers defects in materials and workmanship of the KODAK 70" / 178 cm 2-in-1 Tripod + Monopod (the “product”) for the Warranty Period as defined below. - Page 13 The Kodak trademark, logo and trade dress are used under license from Eastman Kodak Company. All other products, brand names, company names, and logos are trademarks of their respective owners, used merely to identify their respective products, and are not meant to connote any sponsorship, endorsement or approval.
