Features
•

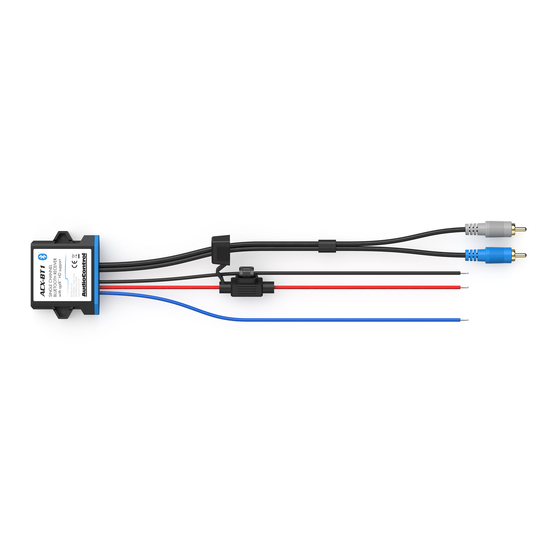

Compact, elegant design with no buttons or switches
•
aptX™ HD Support
•
BT v4.1 chip set
•
All-weather IPX5 rated
•
Universal design works with any amplifier or device with line
level (RCA) inputs
•
Unique remote turn-on output circuit
•
Pacific Northwest freshness built-in!

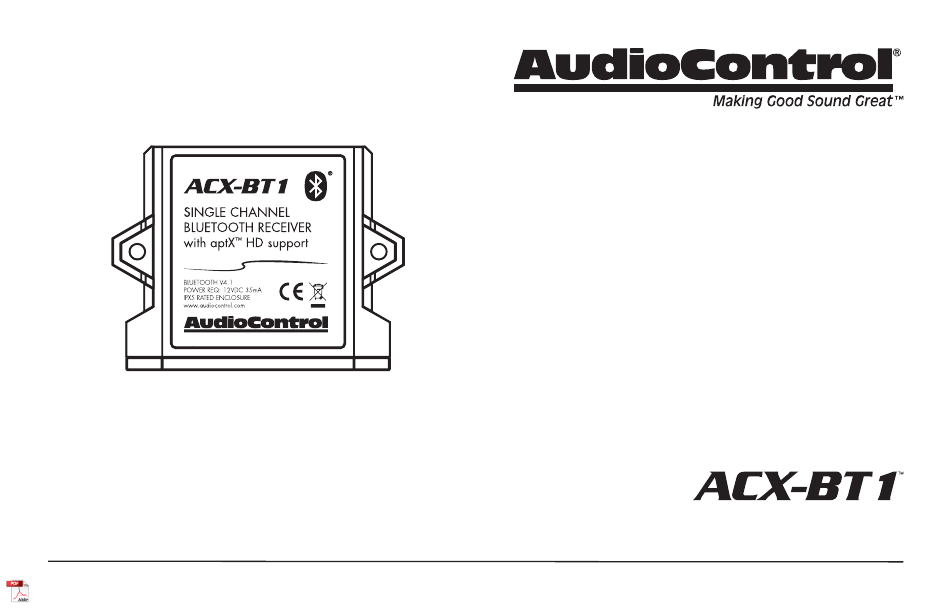

BLUETOOTH RECEIVER WITH APTX™ HD SUPPORT
Quick Start Guide
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AudioControl ACX-BT1
Summary of Contents for AudioControl ACX-BT1
- Page 1 Features • Compact, elegant design with no buttons or switches • aptX™ HD Support • BT v4.1 chip set • All-weather IPX5 rated • Universal design works with any amplifier or device with line level (RCA) inputs • Unique remote turn-on output circuit •...
- Page 2 10. Provide +12v and ground wiring of sufficient size to ensure adequate Recycling notice: If the time comes and this current to the receiver. For the ACX-BT1, this means 16-22 gauge wire. apparatus has fulfilled its destiny, do not throw it out into the trash. It has to be 11.
- Page 3 Remote, Power, and Output Connections 1. Remote Turn-On Output (Blue) – This 12v DC/20mA remote 3. Ground Input (Black) – Connect this lead to a solid ground con- output is designed to turn on a connected amplifier. This output nection from your vehicle. is only active after audio has begun playing and will remain active 4.
- Page 4 Bluetooth Pairing and Streaming: protect the Bluetooth receiver from heat, moisture, and dirt. 1. After the ACX-BT1 is powered up, you will see a small blue LED 3. The ACX-BT1 can be securely mounted using the two mounting flashing quickly from within the unit.
- Page 5 System #1: Head-unit-less All-Weather System Line-level L/R outputs...
- Page 6 Specifications All specifications are measured at 14.4 VDC (standard automotive voltage). As technology advances, AudioControl reserves the right to continuously change our specifications, like our Pacific Northwest weather, although we are working on changing that as well. ACX-BT1 Bluetooth Receiver Nominal Output Level.
