KW9184M WEATHER STATION (RC-DCF)
USER MANUAL
1. Features
1.1 Time - Radio Controlled Time
- Perpetual Calendar Up to Year 2099
- Day of week in 8 languages user selectable
- Daily Alarm Snooze Function
1.2 Humidity - Indoor & Outdoor measurable range: 20 ~ 99%
- Outdoor Humidity Record from Start-Up/Reset, and the corresponded time
- 24 Hours Min/Max Display for Outdoor Humidity
1.3 Temperature - Indoor measurable range: -10~ 50°C
- Measures °C / °F user selectable
- Outdoor measurable range: -20 ~ 50°C
- Outdoor Temperature Record from Start-Up/Reset, and the corresponded time
- 24 Hours Min/Max Display for Outdoor Temperature
- Comfort Indicator
1.4 Wireless Outdoor Sensor - Low-battery indicator for Outdoor Thermo Sensor
- Wall Mount or Table Stand
- One Wireless Thermo Sensor Included
- 433MHz RF transmitting frequency
- 100 meter transmission range in an open area
D1: Transmission Indication LED
D2: Outdoor Temperature display
D3: Outdoor Humidity display
D4: Battery Compartment
4. Getting Started:
4.1 Main Unit:
Open main unit battery compartment cover [C1]
l
Insert 2 x AA batteries observing polarity [ "+" and " –" marks]
l
Replace main unit battery compartment cover
l
Use a pin to press the RESET [B5] button on the rear of the main unit, the main
l
unit is now ready for use
4.2 Outdoor Thermo Sensor
Batteries compartment (D4) of thermo sensor is locating behind the back cover,
l
Insert 2 x AAA batteries observing polarity [ "+" and "–" marks]
l
5. Installation
5.1 Main Unit
The main unit can be placed onto any flat surface.
5.2 Outdoor Thermo sensor
The remote sensor should be securely mounted onto a horizontal surface.
Note: Transmissions between receiver and transmitter can reach up to 100m in
open area. Open Area: there are no interfering obstacles such as buildings, trees,
vehicles, high voltage lines, etc.
6. Thermometer
D5: Wall Mount Hole
D6: "RESET" button
D7: "C/F" button
D8: Stand
3

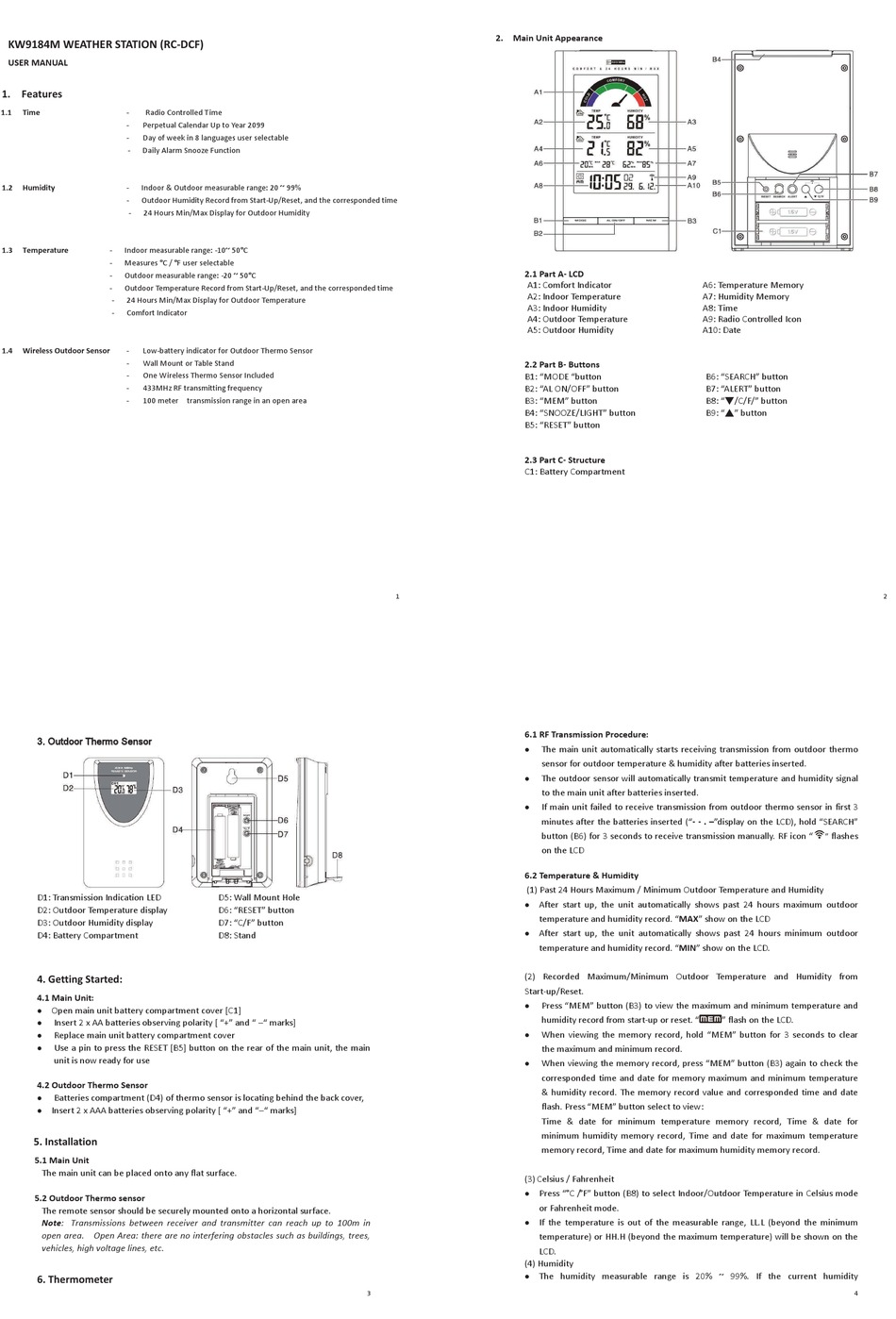

2. Main Unit Appearance
2.1 Part A- LCD
A1: Comfort Indicator
A2: Indoor Temperature
A3: Indoor Humidity
A4: Outdoor Temperature
A5: Outdoor Humidity
2.2 Part B- Buttons
B1: "MODE "button
B2: "AL ON/OFF" button
B3: "MEM" button
B4: "SNOOZE/LIGHT" button
B5: "RESET" button
2.3 Part C- Structure
C1: Battery Compartment
1
6.1 RF Transmission Procedure:
The main unit automatically starts receiving transmission from outdoor thermo
l
sensor for outdoor temperature & humidity after batteries inserted.
The outdoor sensor will automatically transmit temperature and humidity signal
l
to the main unit after batteries inserted.
If main unit failed to receive transmission from outdoor thermo sensor in first 3
l
minutes after the batteries inserted ("- - . –"display on the LCD), hold "SEARCH"
button (B6) for 3 seconds to receive transmission manually. RF icon "
on the LCD
6.2 Temperature & Humidity
(1) Past 24 Hours Maximum / Minimum Outdoor Temperature and Humidity
After start up, the unit automatically shows past 24 hours maximum outdoor
l
temperature and humidity record. "MAX" show on the LCD
After start up, the unit automatically shows past 24 hours minimum outdoor
l
temperature and humidity record. "MIN" show on the LCD.
(2) Recorded Maximum/Minimum Outdoor Temperature and Humidity from
Start-up/Reset.
Press "MEM" button (B3) to view the maximum and minimum temperature and
l
humidity record from start-up or reset. "
When viewing the memory record, hold "MEM" button for 3 seconds to clear
l
the maximum and minimum record.
When viewing the memory record, press "MEM" button (B3) again to check the
l
corresponded time and date for memory maximum and minimum temperature
& humidity record. The memory record value and corresponded time and date
flash. Press "MEM" button select to view:
Time & date for minimum temperature memory record, Time & date for
minimum humidity memory record, Time and date for maximum temperature
memory record, Time and date for maximum humidity memory record.
(3) Celsius / Fahrenheit
Press "°C /°F" button (B8) to select Indoor/Outdoor Temperature in Celsius mode
l
or Fahrenheit mode.
If the temperature is out of the measurable range, LL.L (beyond the minimum
l
temperature) or HH.H (beyond the maximum temperature) will be shown on the
LCD.
(4) Humidity
The humidity measurable range is 20% ~ 99%. If the current humidity
l
A6: Temperature Memory
A7: Humidity Memory
A8: Time
A9: Radio Controlled Icon
A10: Date
B6: "SEARCH" button
B7: "ALERT" button
B8: " /C/F/" button
B9: " " button
flashes
"
" flash on the LCD.
