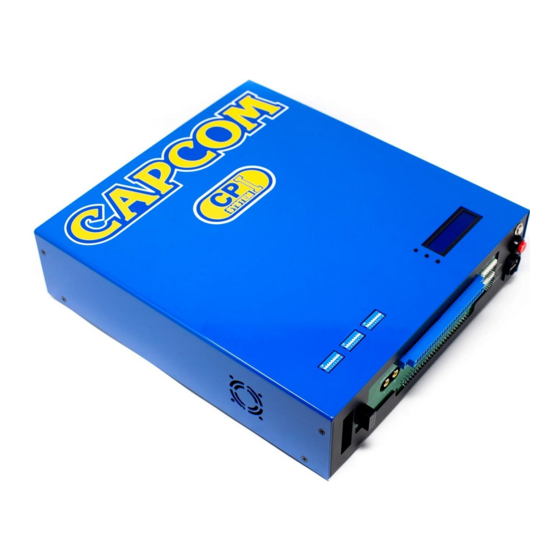

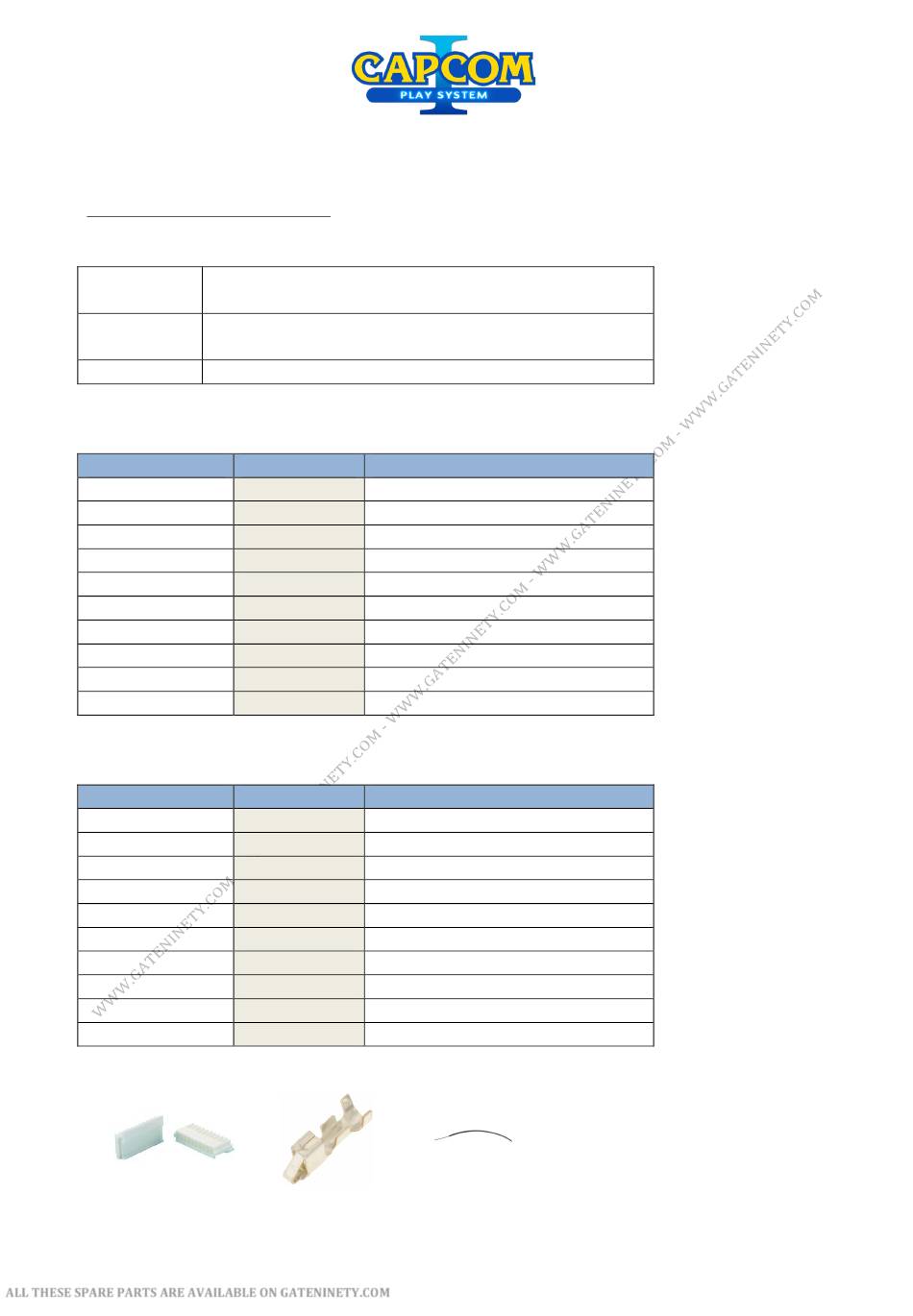

CPS1 KICK HARNESS
Spare parts
Connector
Pins
Wire
Pinout for 6 buttons games
Wire colors
Black
Black
Purple
Gray
White
Orange
Green
Blue
Pinout for 3/4 player games
Wire colors
Black
Black
Pictures
H10P-SHF-AA
ALL THESE SPARE PARTS ARE AVAILABLE ON GATENINETY.COM
H10P-SHF-AA - 10 Pin Female connector
aka JST-NH 10 Female connector
SHF-001T-0.8BS Female
aka JST NH PIN Female
22 AWG as per JST recommendation
Pin number Connections
1
GND
2
GND
3
Player 1 button 4
4
Player 1 button 5
5
Player 1 button 6
6
NC
7
Player 2 button 4
8
Player 2 button 5
9
Player 2 button 6
10
NC
Pin number Connections
1
GND
2
GND
3
Right
4
Left
5
Down
6
Up
7
Button 1
8
Button 2
9
Coin
10
Start
SHF-001T-0.8BS
WIRE 22 AWG
1
Advertisement
Table of Contents
Summary of Contents for Capcom CPS1
- Page 1 CPS1 KICK HARNESS Spare parts Connector H10P-SHF-AA - 10 Pin Female connector aka JST-NH 10 Female connector Pins SHF-001T-0.8BS Female aka JST NH PIN Female Wire 22 AWG as per JST recommendation Pinout for 6 buttons games Wire colors Pin number Connections Black GND Black GND Purple Player 1 button 4 Gray Player 1 button 5 White Player 1 button 6 Orange Player 2 button 4 Green Player 2 button 5 Blue Player 2 button 6 Pinout for 3/4 player games Wire colors Pin number Connections Black GND Black GND Right Left...
- Page 2 CONNECT 6 BUTTONS Spare parts Terminals 12 * 2.8mm Crimp Terminals Female Spade Connector Ground Use Standard Female Terminals or Crimp Closed End Connectors Enclosure Quick Disconnect Sleeve Optionnal or Quick Disconnect Enclosure How to connect to buttons ? Using Ground wire in the same connector Figure a ALL THESE SPARE PARTS ARE AVAILABLE ON GATENINETY.COM...
- Page 3 Using crimp closed end connectors Figure b Pictures 2.8mm Crimp Terminals Crimp Closed End Quick Disconnect Quick Disconnect Female Spade Connector Connectors Enclosure Sleeve ALL THESE SPARE PARTS ARE AVAILABLE ON GATENINETY.COM...
- Page 4 CONNECT 3 OR 4 PLAYER Spare parts if using microswitches with 4.8 terminals Terminals 8 * 4.8mm Crimp Terminals Female Spade Connector and 8 * 2.8mm Crimp Terminals Female Spade Connector Ground Use Standard Female Terminals or Crimp Closed End Connectors Enclosure 2.8mm Quick Disconnect Sleeve / 2.8mm Quick Optionnal Disconnect Enclosure for 2.8mm Crimp Terminals Female Spade Connector and 4.8mm Quick Disconnect Sleeve for 4.8mm Crimp Terminals Female Spade Connector How to connect the buttons and joystick ? Using Ground wire in the same connector Figure C ALL THESE SPARE PARTS ARE AVAILABLE ON GATENINETY.COM...
- Page 5 Using crimp closed end connectors The only difference with « figure c » is the ground wire using Crimp Closed End Connectors instead of linking them via the female terminals. Please refer to « figure b » for the principle. Pictures 4.8mm Crimp Terminals 2.8mm Crimp Terminals Crimp Closed End 4.8 Quick Female Spade Connector Connectors Female Spade Connector Disconnect Sleeve 2.8 Quick Disconnect 2.8 Quick Disconnect Sleeve Enclosure SANWA / SEIMITSU Are you using the 5-pin wire harness for joytick ? In this case, please use this picture as reference to connect the joystick wires to your CPS1 connector Full guide available to build your own 5-wire harness ALL THESE SPARE PARTS ARE AVAILABLE ON GATENINETY.COM...
