Summary of Contents for Computer Dynamics HDMI-11CA

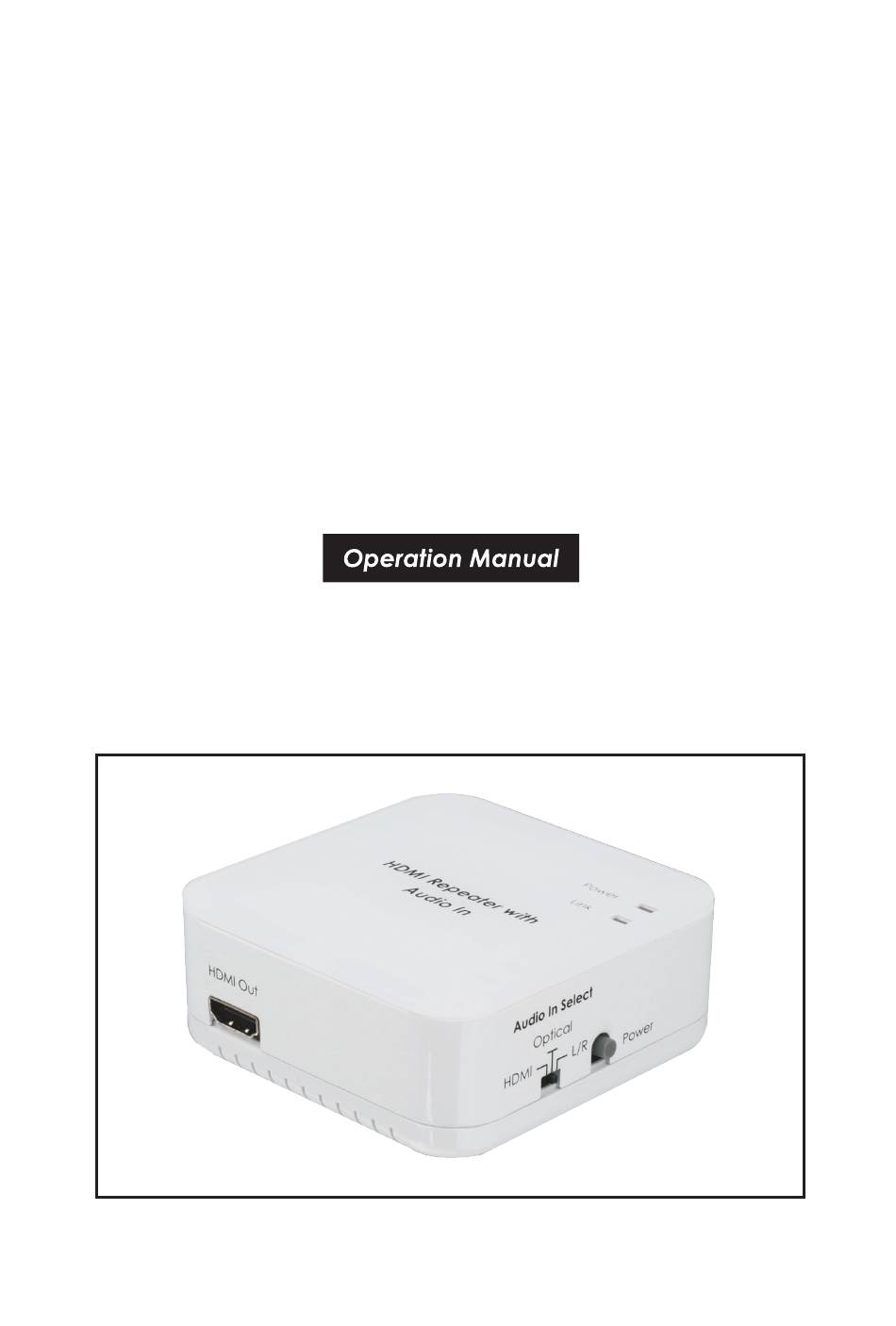

- Page 1 HDMI-11CA HDMI Repeater with Audio In...
- Page 2 Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
- Page 3 Table of Contents 1. Introduction .................. 1 2. Applications ................. 1 3. Package Contents ..............1 4. System Requirements ..............1 5. Features ..................1 6. Specifications ................2 7. Operation Controls and Functions ..........3 Top Panel ..............3 Right Panel ..............3 Left Panel ..............
- Page 4 1. Introduction The HDMI repeater with audio in is a device that guaranties your HDMI source display with alternatives selection of audio combination display. The device has optical and R/L audio input including the original HDMI audio signal for user’s favorite selection. While displaying the HDMI image, users can now enjoy the display with different type of music.
- Page 5 6. Specifications Input Port 1 x HDMI, 1 x Optical, 1 x R/L HDMI Sample Frequency Up to 192 kHz Optical Sample Frequency Up to 48 kHz Output Port 1 x HDMI HDMI Audio Format PCM2/5.1/7.1, Dolby 5.1, DTS 5.1, DD+, D-TrueHD, DTS-HD Optical Audio Format PCM2 Power Supply...
- Page 6 7. Operation Controls and Functions 7.1 Top Panel . Power LED: The red LED will illuminate when the power is connected with AC wall outlet. . LINK: The LED will illuminate in blue when both the source and the display are sync together. This LED will also blink once while the power is turned on. 7.2 Right Panel .
- Page 7 7.3 Left Panel . DC 5V: This slot is where you plug the 5V DC power supply into the unit and connect the adaptor to an AC wall outlet. 7.4 Upper Panel . Input R/L: These slots are to connect with audio source equipment such as CD player or Hi-Fi equipment with RCA jack for input audio signal.
- Page 8 8. Connection and Installation Stereo Blu-Ray Amplifier HDTV Monitor...
