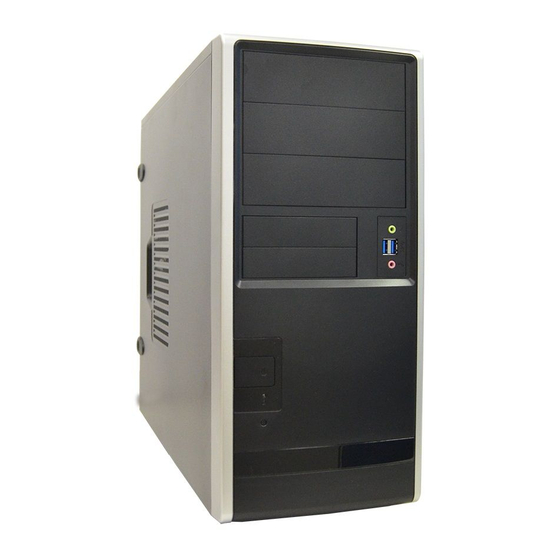

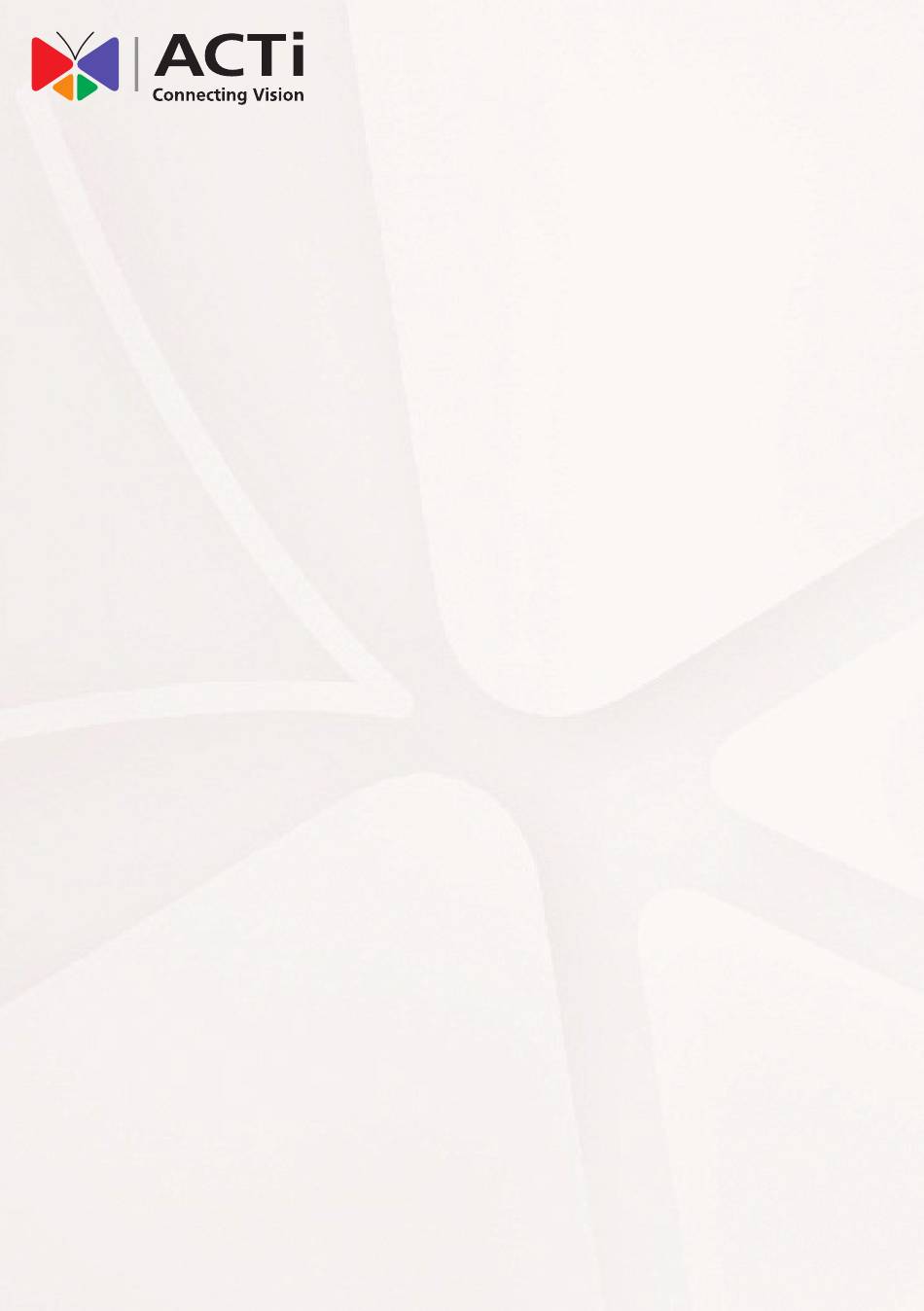

- Page 1 Quick Installation Guide TVW-301 4-Monitor Tower Standalone TV Wall V.21.09.30...
-
Page 2: Before You Start
BEFORE YOU START Thank you for purchasing ACTi Standalone TV Wall Server. This guide contains all the information you need to quickly set up the TV Wall system with a local display interface. For detailed instructions on operation, please search for the product manual on http://www.acti.com/downloadcenter. -
Page 3: Front Panel
AT A GLANCE FRONT PANEL Power Button LED Indicator Restart Button Audio Out USB 3.0 Ports x 2 Mic In REAR PANEL Power Switch Power Connector Display Port Connectors HDMI Ports DVI Ports USB 3.0 Ports USB 3.1 Ports LAN Ports x 2 Audio Input / Output Quick Installation Guide... -
Page 4: Connect The Devices
CONNECT THE DEVICES The example below displays a local network consisting of the TVW, network cameras and basic required peripherals to start using the device. NOTE: If the video Power Source connector of your USB Devices monitor is not available on TVW, use display connector converters. -
Page 5: Setup Login Password
SETUP LOGIN PASSWORD On Windows login screen, follow the on-screen instructions to setup your login password. This will be used in succeeding Windows login. It is strongly recommended not to leave the password blank. 1. Click Sign In. 2. Click OK. 3. - Page 6 ADD TV WALL TO CMS SERVER After successfully logging in to the TV Wall Server, the ACTi logo is shown on the screen. By default, the TV Wall server is ready to display monitor clients. Now, it’s time to add TV Wall to the CMS Server.
- Page 7 CREATE TV WALL VIEWS To start real-time handling of the TV Wall monitors via CMS interface, create a view on the CMS Live View screen which will act as a deck dedicated as the TV Wall Controller. 1. On the CMS, click on the View Toolbar and fill in the View properties.
- Page 8 4. As the channel window shows the TV Wall Controller background, click to save the View. 5. Scroll the left-panel menu towards TV Wall and drag the TV Wall server source onto the TV Wall Controller view. You may drag multiple TV wall servers here as you want.
- Page 9 ASSIGN VIEWS TO MONITORS To assign a camera device to the view, simply drag a camera channel to the grid on the the TV Wall View. Continue to drag another camera to the view. The TV Wall Monitor(s) will immediately display the camera views. Display on TV Wall Stations Or, you may select a live channel on the CMS Live view interface, right-click “Send to TV Wall”...
- Page 10 MANAGE TV WALL VIEWS When you click on a TV Wall source, the Controller Toolbar on top of the window becomes enabled. Use the toolbar to manage the TV Wall Views. Right-click to change View Layout View Mode: Toggle between Viewer Mode and Screen Mode. Select TV Wall View: Use this drop-down box to select and change from one view set to another. You need to create TV Wall View set first.
- Page 11 Due to continuous product improvements, some contents may have changed from the time this documentation was written. You can download the latest user documentation from http://www.acti.com/downloadcenter www.acti.com...
