88 5079 15

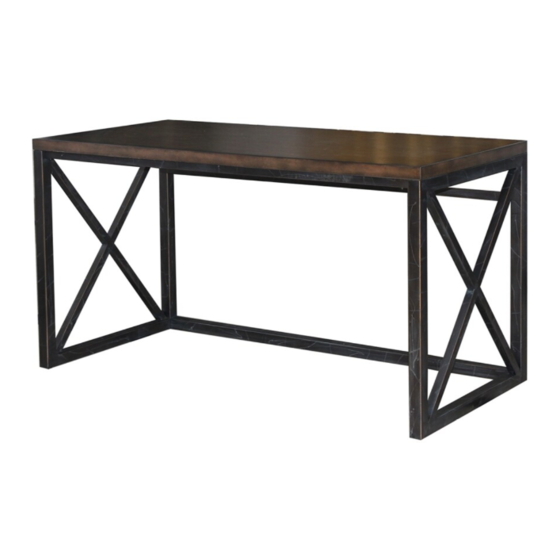

Office Desk
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Top
1 pc.
D.
Front Rail
1 pc
.
E.
Stretcher
1 pc
.
F.
Back Frame
1 pc
.
Hardware List
Small
Hex Wrench
Hex Wrench
1 pc.
1 pc.
Tools required for assembly : Level
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
M6x38
M6x16
Head Cap Bolt (long)
Head Cap Bolt
4 pcs.(+1 extra)
18 pcs.(+1 extra)
B.
C.
Side Frame
Side Frame
1 pc
.
1 pc.
G.
Stretcher
1 pc
.
Spring Washer
18 pcs.(+1 extra)
Flat Washer
18 pcs.(+1 extra)
Advertisement
Table of Contents
Related Manuals for Home Styles Xcel 88 5079 15
Summary of Contents for Home Styles Xcel 88 5079 15
- Page 1 Head Cap Bolt (long) Head Cap Bolt Spring Washer Flat Washer 1 pc. 1 pc. 4 pcs.(+1 extra) 18 pcs.(+1 extra) 18 pcs.(+1 extra) 18 pcs.(+1 extra) Tools required for assembly : Level Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/3 IMPORTANT * Do not tighten up all the Head Cap Bolts until each part is properly assembled. * You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Use a soft cloth between these parts and the floor.
- Page 3 Assembly Instructions 3/3 STEP 3 Put Top (A) upside down on a soft cloth. Attach Top (A) to unit with Head Cap Bolts, Spring Washers and Flat Washers. STEP 4 Figure 2 Turn the unit to its’ upright position. To level the unit, adjust the adjustable levelers on the bottom of side frames. (See Figure 2) Note : Unit must be level to work properly.
