Home Styles Xcel 88 5079 01 Assembly Instructions

88 5079 01

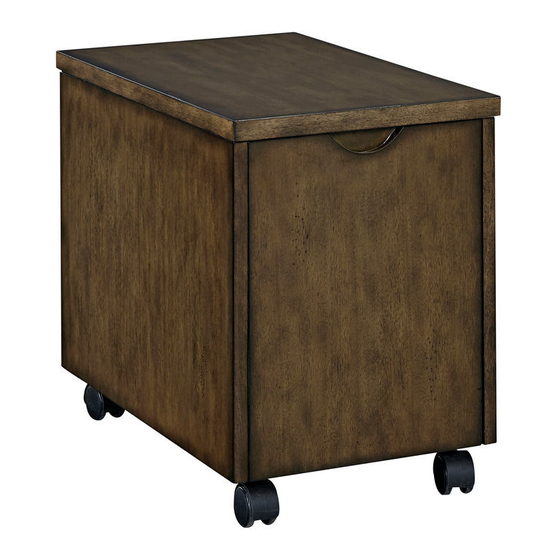

Mobile File
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Top
1 pc.
D.
Base
1 pc.
E.
Side Panel
1 pc.
Hardware List
Caster
2 Locking
2 Non Lock
4 pcs.
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
B.
Front Panel
1 pc .
F.
Side Panel
1 pc.
Hex Wrench
1 pc.
Small
Hex Wrench
1 pc.
H.
Bottom
1 pc.
M6x25
Head Cap Bolt
6 pcs.(+1 extra)
M3.5x16
Wood Screw M3x16
for Caster Wood Screw
16 pcs.(+1 extra) 10 pcs.(+1 extra)
C.
Back Panel
1 pc.
G.
Divider
1 pc.
I.
Hanger
2 pcs.
Support
1 pc.
