ONVATION 8 Series PAN Module Setup and Validation
Objectives
You will learn how to perform the following system setup procedures:
Recording required MAC ID of PURELL PAN Module
•
Installing PAN Module into 8 Series Dispenser
•
Provisioning the PAN Module to the ONVATION Hub
•
Validating PAN Module connectivity
•
Troubleshooting setup issues
•
Equipment
PURELL ONVATION 8 Series PAN Modules
•
Recording device for MAC ID
•
ONVATION Installer App
•
Module MAC I D Identification and Recording
Step

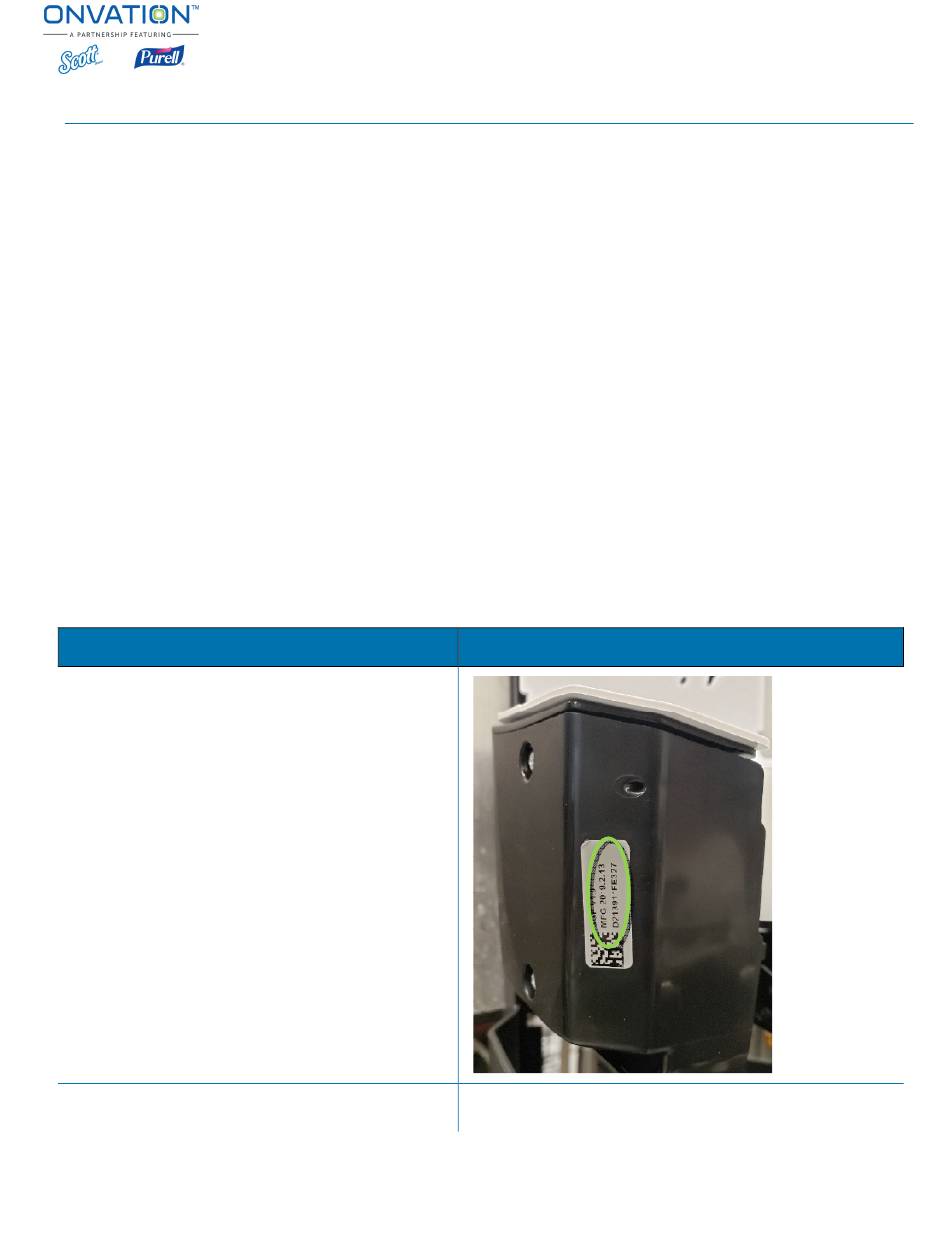

1. Open module static bag and record MAC ID onto
recorder with association to dispenser location.
2. Record Dispenser location on the static bag.
3. Using recorded MAC ID's enter them into the
ONVATION Installer App.
4. Install the Dispenser per the Dispenser
Installation Guidelines.
© 2019 GOJO Industries, Inc. All Rights Reserved
Illustration
Page 1 of 6
Advertisement
Table of Contents
Summary of Contents for Purell ONVATION 8 Series
- Page 1 ® PURELL ONVATION 8 Series PAN Module Setup and Validation Objectives You will learn how to perform the following system setup procedures: Recording required MAC ID of PURELL PAN Module • Installing PAN Module into 8 Series Dispenser • Provisioning the PAN Module to the ONVATION Hub •...
- Page 2 Step Illustration 5. Open the 8 Series dispenser by pressing in the pressing in the left and right buttons on the side to release the left and right buttons on the side to release the door on the dispenser. 6. Discard the circuit board cover. 7.
- Page 3 Wi-Fi/BLE Provisioning Exceptions Issue Code Dispenser Not Communicating with If the dispenser is not communicating with Onvation, then try Onvation Module the following steps: 1. Hold a magnet near the {Special Location} on the module. The Red and Green LEDs will turn on. Remove the magnet immediately when the LEDs turn If the magnet is held for a short period of time, the module will enter pairing mode.
- Page 4 Device Compliance Onvation Module FCC/IC Label Please include on dispenser packaging or enclosure the following: Please include on dispenser packaging or enclosure the following: "Contains FCC ID: O76ONVATION, IC: 10391B "Contains FCC ID: O76ONVATION, IC: 10391B-ONVATION" This equipment has been tested and found to comply with the limits for a Class A digital d This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of evice, pursuant to part 15 of the FCC rules.
