Installation Instructions
STEP 1
BE CERTAIN GABLE END VELCRO IS OPEN BEFORE BEGINNING INSTALLATION. CONNECT PULL ROPES TO
D-RINGS AT LOWER ENDS OF LINER MID.
STARTING AT CHANNEL OPENINGS IN BEAMS, SLIDE KEDAR INTO INSIDE CHANNELS OF BEAMS. START BOTH
SIDES OF MID AT THE SAME TIME.
MIDS WILL BE PULLED IN WITH PULL ROPES. PULLEY MAY BE ATTACHED AT TOP ARCH OF FRAME FOR THIS
PURPOSE, OR PUSH POLES CAN BE USED.
FIRST MID WITH GABLE
END ATTACHED.
GABLE END
ATTACH GABLE END TO
FRAME AT EAVE BAR.
EC

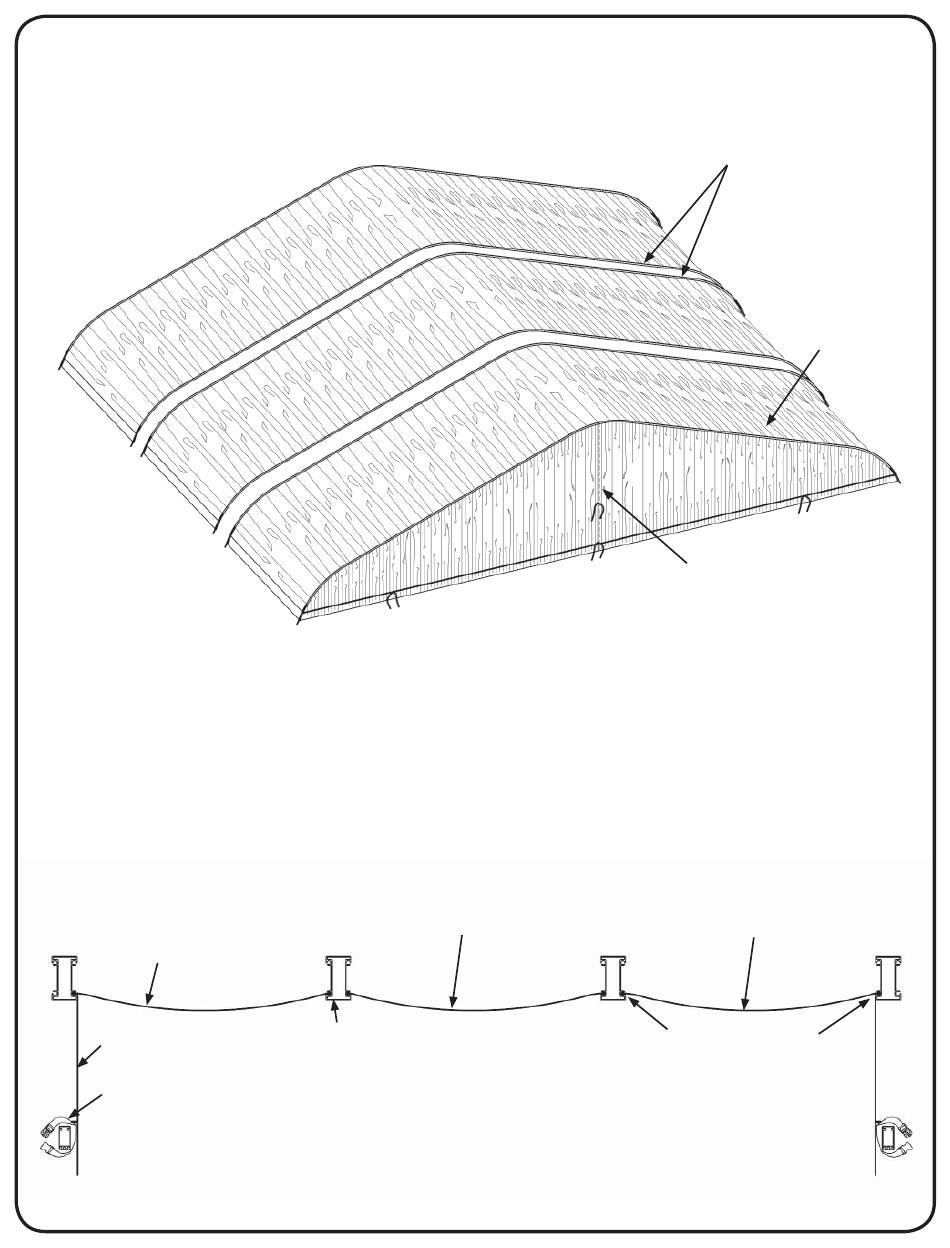

Anchor Span Liner
ANCHORSPAN
BEAM (TYP.)
CROSS SECTION LOOKING
AT SIDE OF ANCHORSPAN
MID
KEDARS
GABLE END OF
LINER - ATTACHED
TO FIRST MID.
GABLE END VELCRO
MUST BE OPEN
BEFORE PULLING
LINER IN CHANNEL.
FIRST MID WITH GABLE
END ATTACHED.
SLIDE KEDAR INTO
BOTH CHANNELS
SIMULTANEOUSLY.
