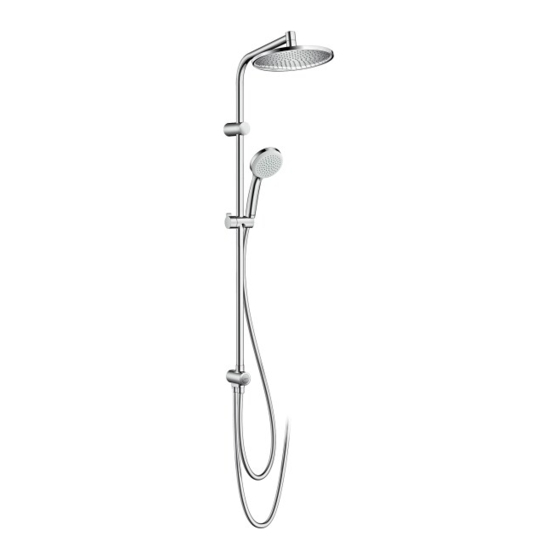

Hans Grohe Crometta S 240 1jet Showerpipe Reno 27342007 Instructions For Use/Assembly Instructions
Hide thumbs
Also See for Crometta S 240 1jet Showerpipe Reno 27342007:
- Instructions for use/assembly instructions (12 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hans Grohe Crometta S 240 1jet Showerpipe Reno 27342007
Summary of Contents for Hans Grohe Crometta S 240 1jet Showerpipe Reno 27342007
- Page 1 ® UNIDOMO Web: www.unidomo.de Telefon: 04621- 30 60 89 0 Mail: info@unidomo.com Öffnungszeiten: Mo.-Fr. 8:00-17:00 Uhr a member of DAIKIN group � Individuelle Beratung � Komplettpakete Kostenloser Versand Über 15 Jahre Erfahrung � � Hochwertige Produkte Markenhersteller � �...
-
Page 2: Zh 用户手册 / 组装说明
ZH 用户手册 / 组装说明 EN Instructions for use / assembly instructions Crometta S 240 1jet Showerpipe Reno 27342007 Crometta S 240 1jet Showerpipe Reno 27343007 Crometta E 240 1jet Showerpipe Reno 27346007 Crometta E 240 1jet Showerpipe Reno 27347007... - Page 3 中文 安全技巧 技术参数 装配时为避免挤压和切割受伤，必须戴上手套。 1 MPa 工作压强： 最大 0,25 - 0,5 MPa 推荐工作压强： 头顶花洒夹持杆只为夹持头顶花洒而设计，不得让其承载其它物品！ (1 MPa = 10 bar = 147 PSI) 不得让儿童和肢体、精神和/或意识有障碍的成人在不受监管的情况下 60°C 热水温度： 使用淋浴系统。受酒精或毒品影响的人员不得使用淋浴系统。 70°C / 4 分钟 热力消毒: 最大 必须避免让身体敏感部位（如眼睛）接触到莲蓬头喷水。必须保持莲蓬 • 自动防止回流 头与人头之间有足够的距离。 • 该产品专为饮用水设计！ 该产品不得作扶柄使用。必须安装单独的扶柄。 淋浴系统只允许作为洗浴、卫生和洁身之用。 安装提示 • 安装前必须检查产品是否受到运输损害。 安装后将不认可运输损害或表 面损伤。 • 管道和阀门必须根据通用标准进行安装、冲洗和检查。 • 请遵守当地国家现行的安装规定。 • 本安装说明中所规定的安装尺寸理想用于身高 1700 mm 左右的人士。 尺寸可根据需要进行修改。在这种情况下，您必须留意，如果安装高度 符号说明 改变，则花洒到地板的最小高度也随之改变，且必须考虑到连接尺寸的 请勿使用含有乙酸的硅！ 改变。 • 在安装产品的位置，安装人员必须确保安装面的墙面是平的（没有突出 物或瓷砖没有突起），墙体结构适合产品的安装并没有弱点。包装内的 操作 (参见第页 11) 膨胀螺丝只适用于混凝土墙体。对于其他墙体结构必须咨询膨胀螺丝生 请在使用喷头后略微倾斜，排空其中水分。...
-
Page 4: Installation Instructions
English Safety Notes Technical Data Gloves should be worn during installation to prevent crushing and cutting Operating pressure: max. 1 MPa injuries. Recommended operating pressure: 0,25 - 0,5 MPa (1 MPa = 10 bar = 147 PSI) The arm of the shower head is intended only to hold the shower head. Do not Hot water temperature: 60°C load it down with other objects! Thermal disinfection: max. 70°C / 4 min Children as well as adults with physical, mental and/or sensoric impairments must not use this product without proper supervision. Persons under the influ- • Safety against backflow ence of alcohol or drugs are prohibited from using this product. • The product is exclusively designed for drinking water! Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you. The product may not be used as a holding handle. A separate handle must be installed. The shower system may only be used for bathing, hygienic and body cleaning purposes. Installation Instructions • Prior to installation, inspect the product for transport damages. After it has been Symbol description installed, no transport or surface damage will be honoured. Do not use silicone containing acetic acid! • The pipes and the fixture must be installed, flushed and tested as per the applica- ble standards. • The plumbing codes applicable in the respective countries must be oberserved. Operation (see page 11) To empty the overhead shower after use, hold it in a slightly inclined • The installation dimensions stated in these installation instructions are ideal for position. - Page 5 Ø 6 SW 6 mm 95163000 (4 Nm) SW 3 mm...
- Page 6 SW 17 mm (10 Nm) 94246000...
- Page 7 Crometta S 240 1jet Showerpipe Reno 27342007 Ø 22 Ø 22 G1/2 Crometta S 240 1jet Showerpipe Reno 27343007 Crometta S 240 1jet Showerpipe Reno 27342007 / 27343007 0,60 0,55 0,50 0,45 0,40 Ø 22 0,35 0,30 Ø 22 0,25 0,20 0,15 0,10...
- Page 8 Crometta E 240 1jet Showerpipe Reno 27346007 Ø 22 Ø 22 G1/2 Crometta E 240 1jet Showerpipe Reno 27347007 Crometta E 240 1jet Showerpipe Reno 27346007 / 27347007 0,60 0,55 0,50 0,45 0,40 Ø 22 0,35 0,30 Ø 22 0,25 0,20 0,15 0,10...
- Page 9 SW 17 mm SW 17 mm 10 Nm > 1 min > 1 min...
- Page 10 SW 5 mm SW 5 mm (2 Nm)
-
Page 11: Warranty
中文 English 汉斯格雅产品的清洁建议 Cleaning Recommendation for Hansgrohe Products Today, modern sanitary and kitchen tapware, showers, accessories, washstands, 现代的卫浴龙头、厨房龙头、花洒、配件、盥洗台、浴盆和加热器采用的 tubs and radiators consist of very different materials to comply with the needs of the 制造材料非常迥异，以适应产品外形设计和使用功能的市场需求。 market with regard to design and functionality. 为了避免产品损坏和由此引发的投诉及争议，必须在使用和清洁产品时遵 To avoid damage and reclamations, it is necessary to consider certain criteria when 循有关规程。 cleaning. With regard to caring for the Hansgrohe products, the 在保养汉斯格雅产品时，原则上必须注意： following must in principle be heeded: • 只能使用那些有明确注明是适用于本产品的清洁剂。 • Only use cleaning material which is explicitly provided for this type of application. • 不允许使用含有盐酸、蚁酸、氯漂或醋酸的清洁剂，因为这些清洁剂会 给产品表面造成严重的损伤。 • Never use cleaning materials, which contain hydrochloric acid, formic acid, chlorine pale lye or acetic acid, as they cause considerable damage. • 含磷酸的清洁剂必须在特定条件下使用。... - Page 13 Crometta S 240 1jet Showerpipe Reno 94246000 95659000 27342007 / 27343007 Crometta E 240 1jet Showerpipe Reno 27346007 / 27347007 26727000 95401000 (27346007 / 27347007) 94246000 95659000 95406000 26724000 (27342007 / 27343007) 95365000 98129000 95163000 (14x2) 92520000 28537007 95160000 95659000 94246000 28276000 92519000...
- Page 17 Hansgrohe · Auestraße 5 – 9 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
