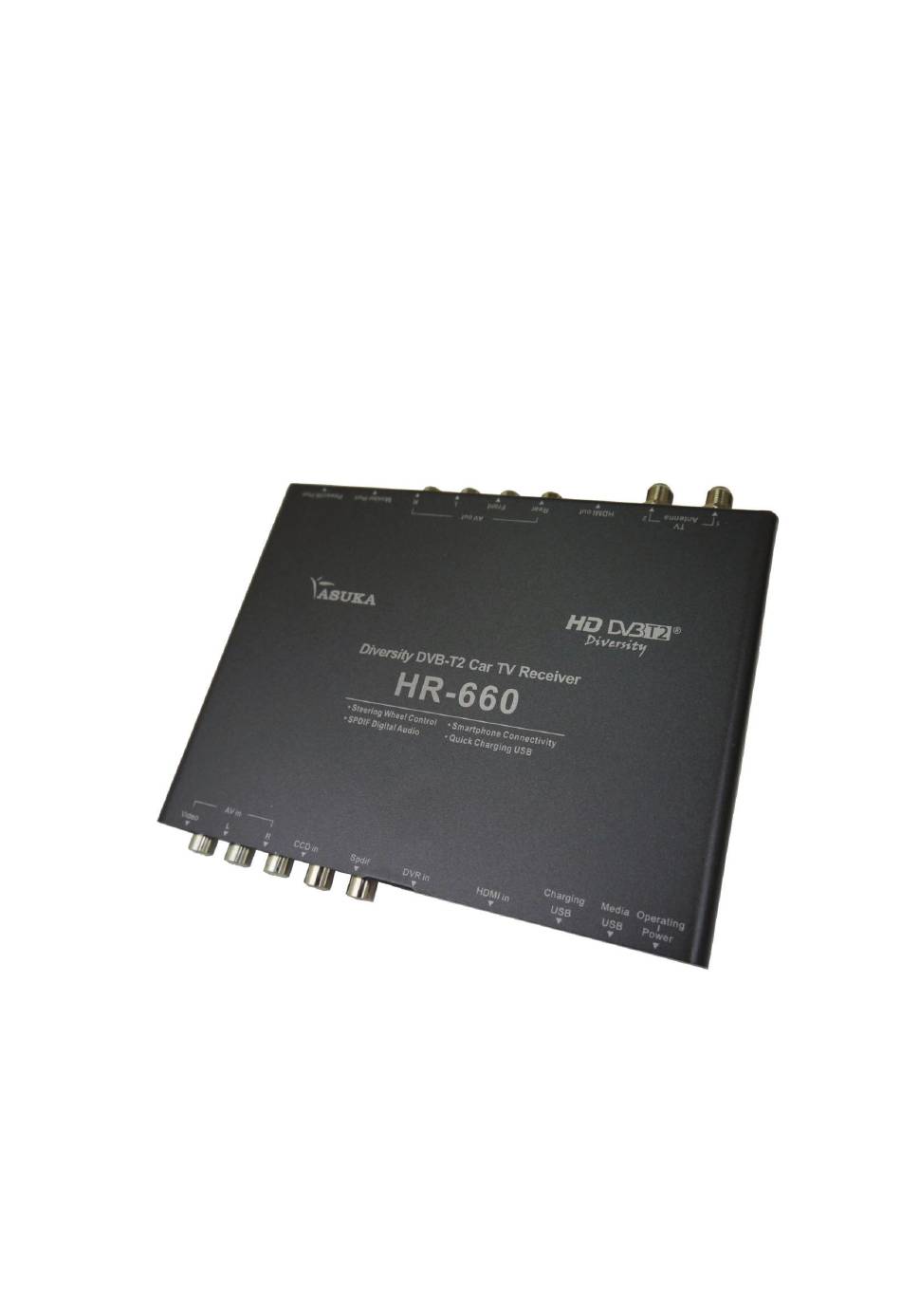

Model: HR-660
CONNECTED Car TV Diversity
Receiver
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HR-660 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Asuka HR-660

Summary of Contents for Asuka HR-660

  • Page 1 Model: HR-660 CONNECTED Car TV Diversity Receiver User Manual...
  • Page 2 The lighting flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk at electric shock to persons. CAUTION: TO REDUCE THE RISK OF ELECTRICSHOCK–...

  • Page 3: Table Of Contents

    II.1 I/O Overview............................ 10 II.2 Antenna Connection ........................12 II.3 Smart phone Connectivity ......................14 II.4 Operating HR-660 from Steering Wheel Control (SWC) ............16 II.5 Touch control with Tier-1 Head Units ..................20 II.6 When having multiple external AV devices ................23 Quick Guide for First-time User ............

  • Page 4: Table Of Contents Product Introduction

    3. Providing both CVBS and RGB TV output: In addition to CVBS output, HR-660 also provides optional RGB (progressive) TV output that is the expected video format by several well-known head unit with the RGB TV output, HR-660 is capable of inter working with an even wider range of head units in the market..

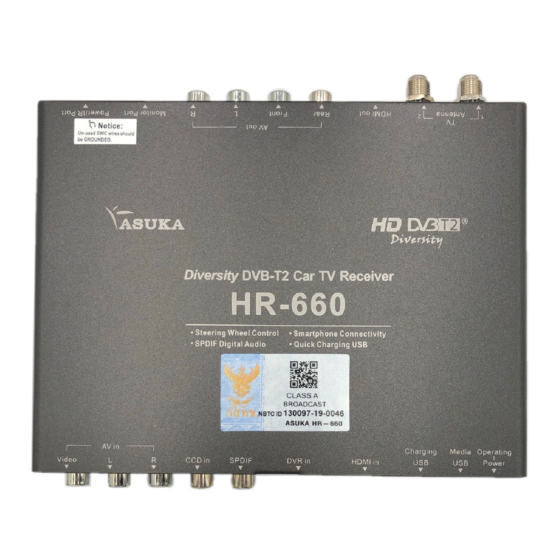

  • Page 5: Front Side

    I.1 Front Side AV in : audio/video signal input port for external devices connection such as DVD, GPS etc. CCD in : video input port for external CCD camera device connection. Spdif out DVR in : designated port for integration with ASUKAdriving recorder. HDMI in : HDMI signal input port for mobile phone connection.

  • Page 6: Rear Side

    I.2 Rear Side (10) Antenna in : antenna input port ( : the unit provides +5V phantom NOTE power through RF signal pin.) (11) HDMI out : HDMI signal output port (12) Video out : CVBS video output ports (13) Audio out : Audio left/ right sound output ports.

  • Page 7: Remote Control Operations

    I.3 Remote Control Operations Button name Function POWER Select the power-on or stand-by Select video source from DTV/AV1/CCD/DVR HOME Go to the home screen MENU Enter the setup menu [11] Select the channel up or move the cursor CH▲ Select the volume up or move the cursor Select the volume up or move the cursor [12] CH▼...

  • Page 8: Home Menu

    I.4 Home Menu This is the home menu screen. From here, you can accessrepestivelythe TV mode,LINK mode for smart phone connection, Movie mode for video playback, Music mode for music playback mode, and Setting mode for system settings. 1. Use [VOL ] and [VOL ] buttons to highlight the desired mode.

  • Page 9: Installation & Configuration Guide

    II. Installation & Configuration Guide Configuration overview The HR-660 provides three different kinds of video output ports: AV OUT, HDMI, and Monitor Port Input devices Drive Recorder USB devices AV 1/AV2 Smart phone link HR-660 CONNECTED Car TV Diversity Contents Sources...

  • Page 10: Ii.1 I/O Overview

    II.1 I/O Overview Power/SWC/IRPort Ground (black wire). Connect this cable to the vehicles chassis ground. - Reverse status (orange wire). Connect this cable to the reverse gear to see the image of the rear view camera image on the front monitor. - Keep the cable grounded if the reverse mode is not enabled.
  • Page 11 Monitor Port UART TX output UART_T RGB_B Csync RGB_R UART RX input Csync output Ground RGB_B (Video output) Ground RGB_R (Video output) Ground UART_RX RGB_G Ground RGB_G (Video output) DVR Port Ground Reserved CVBS video input Audio input IR data output UART RX input +12V ACC output Mini USB...

  • Page 12: Ii.2 Antenna Connection

    II.2 Antenna Connection In-car digital TV reception situation will vary from vehicle to vehicle and the installer may need to try anetnna mounting positions to determine the best positionfor most stable signal reception in vehicles. Important Notes on Antenna Installation: For a better reception, please place the rod antenna horizontally, and keep the rod antenna away frommetals.
  • Page 13 Antenna Cable Routing Once a suitable position of antenna placement is found, carefully route the antenna cables to the receiver unit and then connect to the Antenna Inputs on DTV receiver.

  • Page 14: Ii.3 Smart Phone Connectivity

    If you are like most people these days, you’ve made your smartphone the source for Youtube, Google Map, and any other Internet information surfing. To answer the increasing demand of Internet accesswithin a car via smartphone, HR-660 provides an efficient wayto connect your smartphone to the head unit display on car monitor.
  • Page 15 Set up the connection After proper interconnection cable is well installed, please enter the home menu as shown below. Select LINK mode and press [OK] button to execute smart phone connection. If the connection is successfully activated, the mirroring image of smart phone will become also available on car monitor asshown in the below:...

  • Page 16: Ii.4 Operating Hr-660 From Steering Wheel Control (Swc)

    TV channels promptly.Operation is Quick and No hassle! Here is a brief summary how HR-660 works to achieve this operational convenience. (1) 5 major TV function keys from steering wheel control are supported in HR-660. They are: LIST , Channel up(CH+), Channel down(CH-), ENTER, and EXIT.
  • Page 17 Connection diagram is as follows: <Case 1>If there are 2 SWC wires in your car: <Case 2>If there is only 1 SWC wire in your car: Note: The input range of HR-660 SWC is 0.2~15V. Attention: Un-used SWC wires SHOULD be GROUNDED.
  • Page 18 Since a car will have its own unique output voltage for each SWC button, a learning procedures to make HR-660 becomes familiar with the specific SWC signal becomes necessary. This following pictures will describe the steps required to achieve the SWC learning for 5 major TV function keys.
  • Page 19 7. Learning TV LIST Key: 7.1 Select the “TV LIST Key Learning” 7.2 Press the button of SWC designated for [TV LIST]...

  • Page 20: Ii.5 Touch Control With Tier-1 Head Units

    Video connection : Plug the SONY interconnection cable to the Monitor port on HR-660, and insert the other side to Navigation port on SONY head unit. Audio Connection : Plug audio L/R RCA cable to AV L/R Out on HR-660 and insert the other side to AUX IN on SONY head unit.
  • Page 21 1. Before the operation on KENWOOD/JVC head unit, please find another standard monitor first with CVBS video input fuction. Connect the CVBSoutputof HR-660 toCVBS input of that monitor and make system setting on it. 2. At HR-660, follow the steps: HOME->Setting->Monitor Port Setting, and enterthe...
  • Page 22 System setting at KENWOOD/JVC head unit : • KENWOOD 2-DIN At KENWOOD or JVC head unit, everytime, when you intend to change current application source to watch TV, please be sure that the following steps are done accordingly. Step 1: Go to the HOME MENU of the head unit. Step 2: Enter AUX and return back to HOME MENU.

  • Page 23: Ii.6 When Having Multiple External Av Devices

    II.6 When having multiple external AV devices HR-660 serves an excellent way to integrate multiple external AV devices such as rear CCD camera, driving recorder (DVR) and other AV devices simultaneously into your car entertaining system. The following is to explain how to configure external AV sources withHR-660.

  • Page 24: Quick Guide For First-Time User

    III. Quick Guide for First-time User III.1 TV Watching Step 1: Turn on the unit 1. Turn on the vehicles ACC or IGN. (or start the vehicle) 2. When the unit is powered, the POWER LED indicator show below will illuminate RED.
  • Page 25 Step 3: Setyour located country, prefered OSD language, Summer Time and LCN option. NOTE: Time zone setting will be automatically updated once the Region setting is changed. Step 4: Perform auto search to find available TVchannels. 1. Select “Start” on Setup Wizard and press OK to active it. 2.

  • Page 26: Iii.2 Tv Recording

    III.2 TV Recording 1. While watching TV, press [REC] to start recording TV programs. The timer menu will appear on the lower left screen. This timer menu will disappear automatically when no operation is performed within 10 seconds. 2. Select favorite recording time on timer menu and press [OK] to start the recording.

  • Page 27: Iii.3 Smart Phone Connection

    The section below will explain how to configure the smart phone devices with HR-660. 1. Please connect your smart phones or smart devices with HR-660 by appropriate interconnection cable. The detailed connection instruction please refer to Chap II.3 . 2. After the interconnection cable is well installed, please enter the screen of HR-660 home menu.

  • Page 28: Iii.4 Movie Watching

    III.4 MOVIE Watching The section below will explain how to quickly play a video file stored on USB device. Press the [Home] button to get back tothe home screen. Select “Movie” section toward next setting. NOTE: Make sure that your USB device has been plugged into the receiver’s USB port, otherwise this function cannot be used.

  • Page 29: Iii.5 Music Listening

    III.5 MUSIC Listening The section below will explain how to quickly play a music file stored on USB device. Press the [Home] button to get back to the home screen. Select “Music” section toward next setting. NOTE: Make sure that your USB device has been plugged into the receiver’s USB port, otherwise this function can not be used.

  • Page 30: Tv Mode

    IV. TV Mode IV.1 TV Menu Enter TV mode first, and then press the [MENU] button to make TV menu appear. By navigating the different options, you can have the access to the channel list,audio settings, channel info, auto search, channel management, display...

  • Page 31: Iv.1.2 Audio

    the selected program. 7. Press the [EXIT]/[MENU] button to return to the “Channel List”. c. Program Information 1. Select one of the desired TV channel schedule and press the [OK] button. 2. The program information will appear and describe the selected channel. 3.

  • Page 32: Iv.1.4 Auto Search

    IV.1.4 Auto Search To re-search the available channels automatically 1. Highlight the “Automatic Search” option. NOTE: you can also pressthe [AUTO SCAN] button to enterthe “Automatic Channel Search” while enjoying TV. 2. Press the [OK] button to restart the channel search again.

  • Page 33: Iv.1.6 Display

    screen. 2. Press the [OK] button to delete the channel. NOTE: this function will permanently delete the channel from the current program list. Users will only restore the previous channels back by performing theauto search again. IV.1.6 Display To set up and adjust the image with preference.
  • Page 34 III.1.7.3 Antenna power : to set up the antenna power 1. Select the “Ant.Power” option on TV menu to enter “Antenna Power” menu. 2. Press the [OK] button to select the power. Note: if the power is “on”, it means that the antenna will have +5V to empower the signal.

  • Page 35: Movie Mode

    V. MOVIE Mode In the Movie Menu, the users can adjustthe playing mode, repeat mode, aspect ratio, audio, and the subtitle. 1. Press the [MENU] to enter “Menu”. 2. Highlight the item you want to adjust. 3. Select one by pressing the [OK] button or exit the setting by pressing the [EXIT]/[MENU] button.

  • Page 36: Music Mode

    VI. MUSIC Mode First, please select the “music” symbol at the start screen menu. After the music has already played, please press the [MENU] button to invoke the music menu. Through this menu, the users can adjust the palying mode, and the repeat mode.

  • Page 37: System Setting

    VII. System Setting This is the system settings menu screen. Theusers can adjust the country/language setting, display setting, HDMI setting, reset default, and proceed to a software upgrade. Use the [VOL ] and the [VOL ] buttons to highlight the desired item and press the [OK] button to enter one item.

  • Page 38: Viii.4 Steering Wheel Control (Swc) Learning

    EXIT and TV LIST. The procedure to perform SWC learning is summarized as shown below. Before SWC learning, please make sure the connecton wires betweeb SWC signal and HR-660 are well connected. 1. Start Steering Wheel Control Learning: 2. Learning Channel up (CH+) Key: 1.1 Back to Main Menu...
  • Page 39 7. Learning TV LIST Key: 7.1 Select the “TV LIST Key Learning” 7.2 Press the button of SWC designated for [TV LIST]...

  • Page 40: Viii.5 Hdmi Setting

    VIII.5 HDMI Setting To choose AV output through HDMI and adjust output color 1. Highlight the option that you want to adjust. 2. Select one by pressing the [OK] button or exit setting pressing [EXIT]/[MENU] button. 3. After adjusting, press the [EXIT]/[MENU] button to exit the “HDMI Setting”...

  • Page 41: Trouble Shooting Q&A

    VIII. Trouble Shooting Q&A Most of the troubleshooting issues can easily be solved. The common cases and their respective solutions are listed in the table below. If the problem is more complicated, please contact the after sales service. Problem Possible Issue Solution The power cord is not properly inserted into the...
  • Page 42 No “line-of-sight” between Ensure there are no obstacle unit and controller between the controller and the unit.

  • Page 43: Specification

    IX. Specification RF Input Antenna Active antenna supported (F-Connector) Frequency range VHF (170-230 MHz) and UHF band (470-862 MHz) RF input impedance 75 Ohm Channel bandwidth 6/7/8 MHz for DVB-T; 1.7/5/6/7/8/10 MHz for DVB-T2 TV System ETSI EN 302-755 v1.3.1 standard Transmission Support all DVB-T2 modes, including, standard...
  • Page 44 Dimension and Weight Dimension 185*130*30 mm Weight 630 g...
