5. 4 A djus ting the devic e
Pos: 71 /DinA4 - Anleitungen Online/Ueberschriften/3./Abschlusswiderstand @ 19\mod_1321958079906_15.docx @ 110083 @ 3 @ 1
5. 4.1 T erminal res is tor
Pos: 72 /DinA4 - Anleitungen Online/Inhalt/KNX/DoorEntry/Bedienung/Abschlusswiderstand setzen 83220-AP-xxx @ 19\mod_1310723392369_15.docx @ 107841 @ @ 1

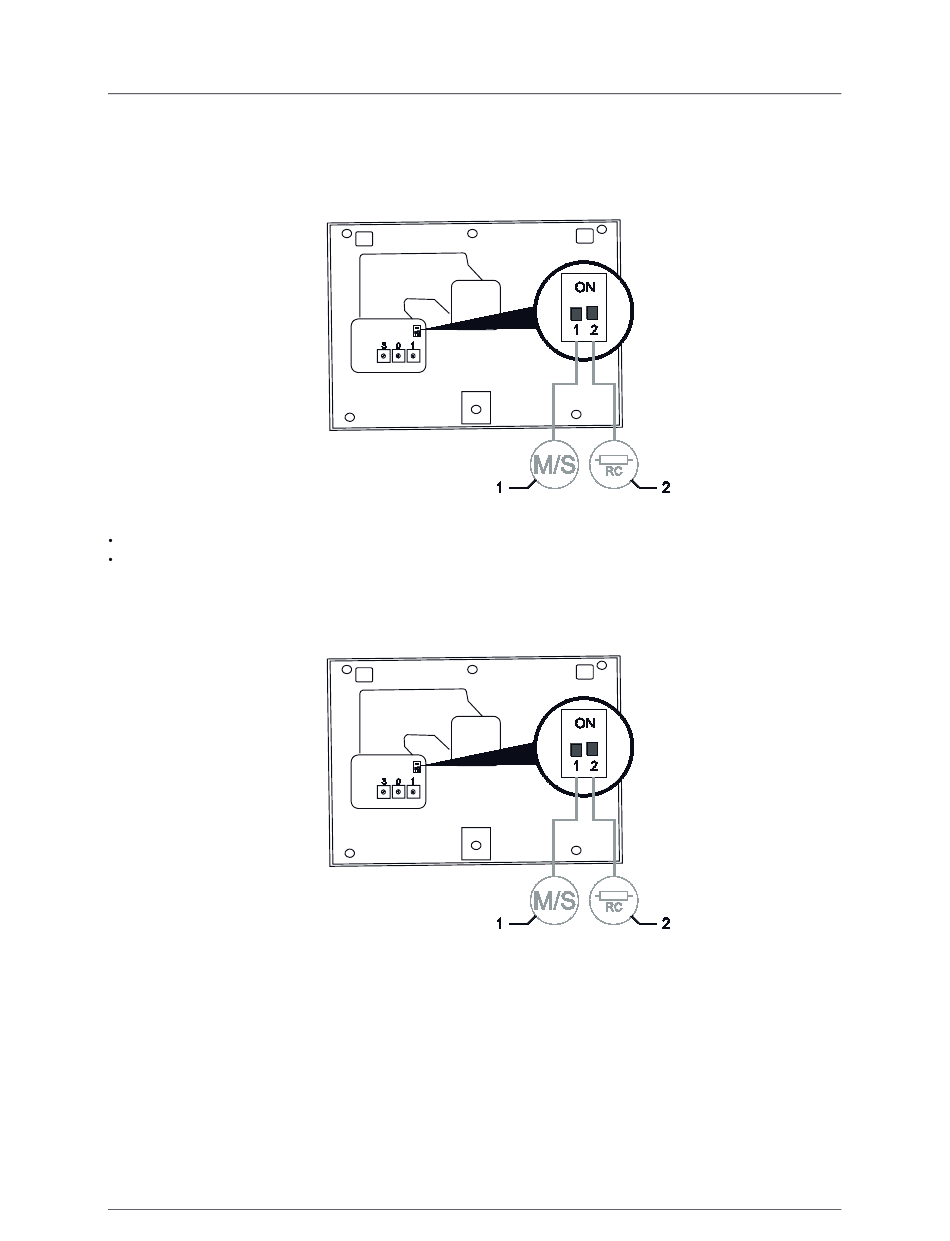

Fig. 19:
In pure audio installations always set the terminal resistor (2) on "OFF".
In video installations or mixed audio and video installations set the terminal resistor for the the last devices of
a branch on "ON".
Pos: 73 /DinA4 - Anleitungen Online/Ueberschriften/3./Master-Slave -- Schalter setzen @ 19\mod_1321958721399_15.docx @ 110106 @ 3 @ 1
5. 4.2 S etting the mas ter/s la ve s witc h
Pos: 74 /DinA4 - Anleitungen Online/Inhalt/KNX/DoorEntry/Bedienung/Master/Slave Schalter setzen 83220-AP-xxx @ 19\mod_1310723320966_15.docx @ 107833 @ @ 1
Fig. 20:
One station in each apartment must be set as "Master". All additional indoor stations in the same apartment must
be set as "Slave".
Indoor s tation that is to be s et a s " Ma s ter"
Set the switch "M"(1-1) on "ON".
F or all other indoor s tations
Set the switch "S"(1-2) on "OFF".
