5. 2.7. 3 Dis pla y
Pos: 53 /DinA4 - Anleitungen Online/Inhalt/KNX/DoorEntry/83220-AP-xxx/Einstellungen Display- 83220-AP-xxx @ 20\mod_1323859176842_15.docx @ 112275 @ @ 1
When changing to "Display", the following functions become available:
No. F unc tion
1 Brightness
- Set the brightness of the display via the "Plus / minus" buttons.
2 Screen saver
– The display is preset as digital clock
– If an SD card with suitable pictures is located in the device, you can select a screen saver via the fold-
down menu. If several pictures are stored on the SD card they are displayed as a slide show.
Slide show (electronic picture frame)
– Each picture appears for 20 seconds.
Picture requirements:
– The pictures must be stored on the SD card in directory "DCIM" (Digital Camera Images) on the first
level.
– The maximum admissible size of the picture is 2048 x 1960 pixel.
– The maximum admissible resolution of a picture is 800 x 480 pixel.
– The resolution of the display is 800 x 600. Larger pictures will be reduced to this resolution.
– The format supported is "jpg".
3 Touch feedback
– By tipping on the checkbox you activate or deactivate the feedback tone which sounds when the display
is touched.
4 The entire screen
– Activate or deactivate the full-page mode of the door camera by tipping on the checkbox. The full-page
mode remains active for the period the picture of the visitor is shown after the door bell has been rung.
5 OK
– By tipping on this button you activate the settings.
6 Back
– By tipping on this button you return to the start page without saving the settings.
7 Calibration
– If the buttons and the associated graphics of the display are no longer superimposed, the monitor must
be calibrated.
– Tip on the calibration button and then consecutively on the 5 displayed position crosses. Finally confirm
the dialogue box displayed.
The display has been calibrated.
| 0073-1-7516

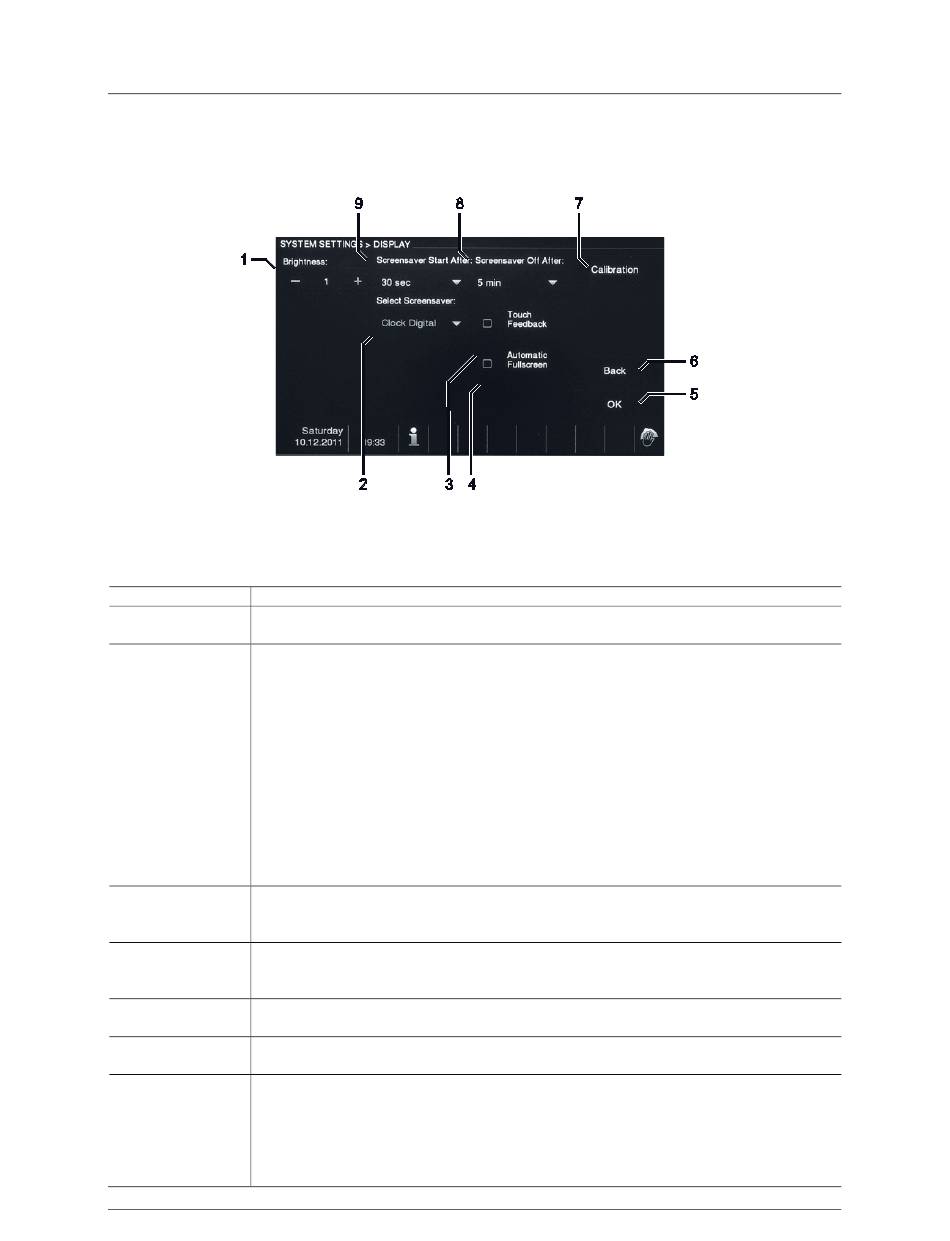

Fig. 13: Display settings
