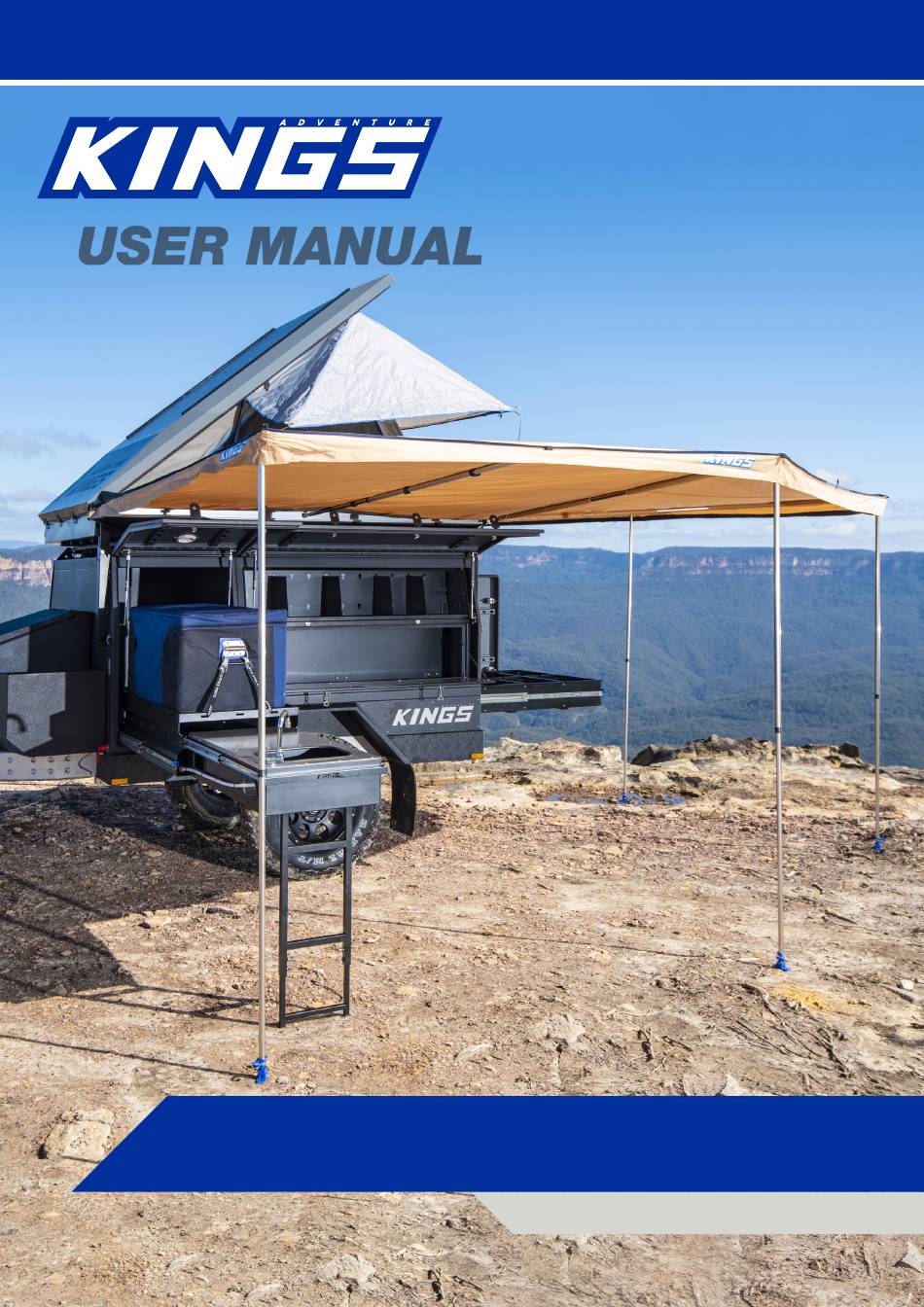

- Page 1 USER MANUAL 270° SQUARE SIDE AWNING SKU: AKTA-AWN270SQR_01 V1.1...
-
Page 2: Table Of Contents
CONTENTS 1. GENERAL INFORMATION WARNINGS/SAFETY INFORMATION 1.1 Conditions of Use 1.2 Inspections & Maintenance 2. FITTING INSTRUCTIONS 2.1 OPTION 1: Mounting Directly to a Roof Rack 2.2 OPTION 2: Mounting Directly to Roof Rack Mesh 2.3 OPTION 3: Mounting Directly to Roof Cross Bar or Canopy 2.4 OPTION 4: Mounting Directly to MT1 Camper Trailer Bracket 3. -
Page 3: General Information
1. GENERAL INFORMATION WARNINGS/SAFETY INFORMATION • DO NOT ATTEMPT TO SETUP AWNING IN WINDY CONDITIONS OR EXTREME WEATHER EVENTS. • ALL GUY ROPES MUST BE ATTACHED AND PEGGED TO THE GROUND AT ALL TIMES. • ALL VERTICAL POLES MUST BE PEGGED TO THE GROUND AT ALL TIMES. •... -
Page 4: Fitting Instructions
2. FITTING INSTRUCTIONS Please read the following instructions which include four of the most common methods for fitting the Square Side 270° to your vehicle. It is the owner’s responsibility to ensure that the awning is securely fastened and safe for use as well as vehicle travel. It is important when mounting the awning to ensure that all the mounting brackets supplied are spaced far enough apart to adequately support the weight of the awning. -
Page 5: Option 2: Mounting Directly To Roof Rack Mesh
2.2 OPTION 2: MOUNTING DIRECTLY TO ROOF RACK MESH 1. Supplied in the awning kit is two fabricated mounting brackets, four clamp plates and required fasteners. See Figure 4. 2. Place the long edge of the supplied mounting brackets on top of the roof rack mesh. 3. -
Page 6: Option 3: Mounting Directly To Roof Cross Bar Or Canopy
2.3 OPTION 3: MOUNTING DIRECTLY TO ROOF CROSS BAR OR CANOPY 1. Supplied in the awning kit is two fabricated mounting brackets and required fasteners. See Figure 7. 2. Place the long edge of the supplied mounting brackets on top of the roof cross bar. 3. -
Page 7: Option 4: Mounting Directly To Mt1 Camper Trailer Bracket
2.4 OPTION 4: MOUNTING DIRECTLY TO MT1 CAMPER TRAILER BRACKET 1. Slide the supplied bolts into the top and bottom rail on the awning extrusion. 2. Align the bolts with MT1 camper trailer awning brackets mounts. 3. Secure awning to awning bracket using the supplied nuts. - Page 8 4. Whilst holding the awning poles and the canvas at the front, begin to walk in an arc towards the rear of the vehicle allowing the awning to rotate around the rear pivot. Once the first triangular section of canvas is tight and the first pole won’t rotate anymore you can un-clip and lower the vertical twist lock pole.
- Page 9 8. Raise or lower the twist lock vertical poles to adjust the height of the awning. See Figure 21. 9. Fully secure the awning by using two pegs in the bottom of each vertical pole and pegging out the supplied guy ropes. All vertical twist lock poles, pegs and guy ropes must be used when the awning is setup.
-
Page 10: Pack Up Instructions
4. PACK UP INSTRUCTIONS Prior to packing away the Square Side 270° awning ensure that the vehicle is stationary with the handbrake applied and that the awning setup area has been cleared of any obstacles or trip hazards. Packing up of the Square Side 270° is the reverse order of the setup instructions. •... -
Page 11: Warranty
6. WARRANTY 12 MONTH LIMITED WARRANTY WARRANTY PERIOD: Full 12 month warranty from date of purchase against all manufacturing defects. WHAT DOES THE WARRANTY COVER? Under normal usage conditions, this warranty covers: a. Any defect in design or manufacture which results in the product failing to perform substantially as described in authorised advertising or literature.
