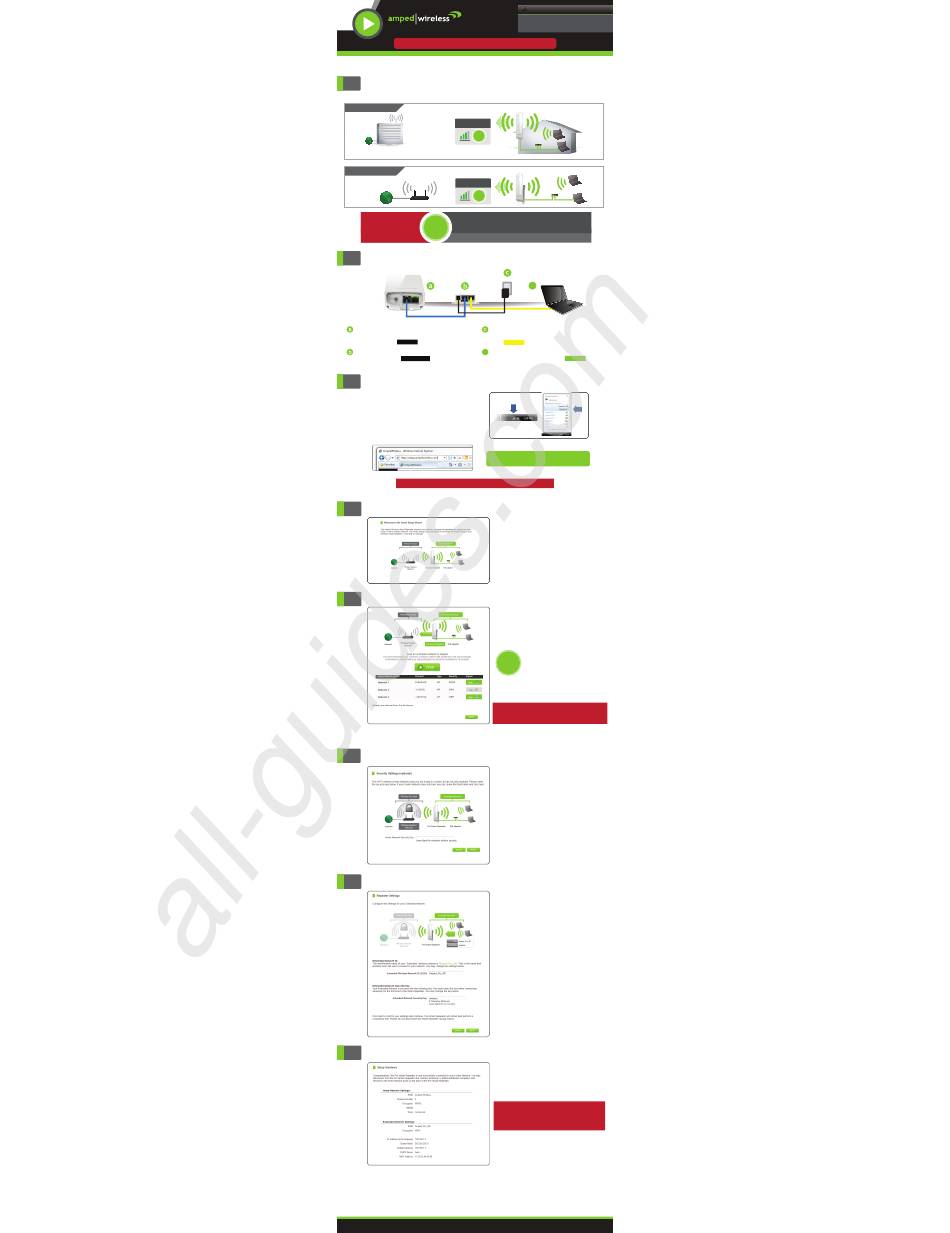

SETUP GUIDE
— R E A D F I R S T

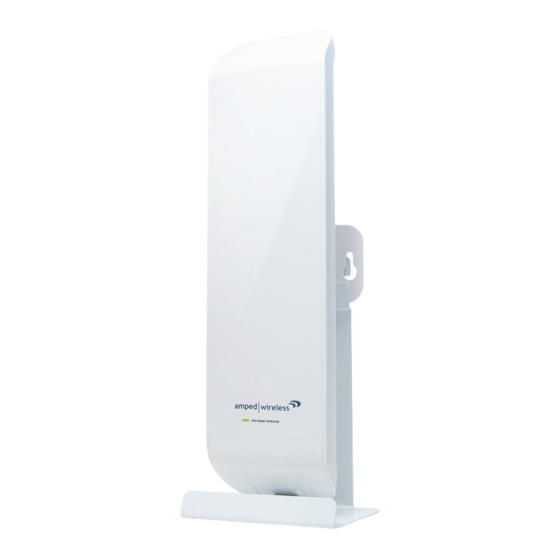

High Power Wireless-N 600mW Pro Smart Repeater
1

Find a location for installation

View the package insert for instructions on how to optimally position the Pro Smart Repeater.
OUTDOOR SETUP
RECOMMENDED
SIGNAL STRENGTH
>70%
Hot Spot
INDOOR SETUP
RECOMMENDED
SIGNAL STRENGTH
>70%
PLACE THE PRO SMART REPEATER IN A LOCATION WHERE IT
IMPORTANT: >70%
CAN RECEIVE A STRONG SIGNAL FROM YOUR WIRELESS ROUTER
This can be done before or after setup is complete. The Repeater will save your settings.
2

Hardware Connections

PWR REPEATER LAN
Open the lid of the Pro Smart Repeater and Locate the power adapter and connect one
check that the 30 ft PoE cable is securely end to a power outlet and the other end to
fastened to the port. the
POE
Locate the PoE Adapter and connect the 30 ft d Use the included network cable to connect
PoE cable to the port on the PoE your PC to the PoE adapter's
REPEATER
Adapter.
3
Disconnect your PC from Wireless Networks and open your Web Browser
Windows 7 & Vista
(Example)
Click on the Wireless icon to see available
wireless networks (For Vista, click Start >
Connect To). Select your currrent wireless
network and click Disconnect.
Open your Web Browser
Enter the setup web address into your browser:
http://setup.ampedwireless.com
If the URL fails to open, then try: http://192.168.1.240
Note: Accessing the setup menu does not require Internet access
4
Welcome to the Smart Setup Wizard
The wizard will guide you through the
setup of your Smart Repeater.
Click
5

Scan for a Wireless Network to Repeat

Click
less networks.
Highlight and select the wireless network
that you wish to repeat.
>70%
Click
Note: If you do not see your desired wireless
network, move the Pro Smart Repeater closer to the
router and scan again as it may be out of range.
6

Home Network Security Settings (If necessary)

If your wireless home network has security
enabled, you will need to enter the security
code here.
If your wirleess home network does not have
security enabled, leave the security field
blank.
Click
7

Configure Settings for your Extended Network

The ID of your Extended Network is:
Amped_Pro_SR
To change it, enter a new name in the SSID
field. Users connecting wirelessly to the Pro
Smart Repeater will use this ID to identify
your Extended Network.
The default Security Key (WPA) of your
Extended Network is:
To change it, enter a new key in the Secu-
rity Key field. The key must be at least 8
characters long.
Click
Repeater will reboot. This process may take
up to 2 minutes. Do not refresh the web
page. The page will automatically reload
with the connection status.
8
Setup Summary
Congratulations, the Pro Smart Repeater is now
successfully configured. Your settings are now
saved. You may now detach the Ethernet
cable from your computer and connect
wirelessly to the Pro Smart Repeater.
If you haven't already positioned your Pro Smart
Repeater in an optimal location, you may do so
now. Your settings will be saved if the Pro Smart
Repeater is powered off.
You may also attach any wired network
devices you may have using the LAN ports on
the Pro Smart Repeater and PoE Adapter.
If there was a problem with your configuration the
Smart Setup Wizard will inform you of the possible
problems. If you continue to experience problems,
please contact Amped Wireless support department:
? Need Help? Give us a call.
Phone: 888-573-8820
Email: techsupport@ampedwireless.com
Web: www.ampedwireless.com/support
—
SR600EX
See back side for mounting instructions.
d
port on the PoE adapter.
POWER
port.
LAN
Wireless Network
Wireless Network
Next to begin.
Scan to begin scanning for nearby wire-
Recommended Signal
Select the wireless network with
a signal strength greater than 70% for
the most reliable connection.
Poor signal connections may cause slow
speeds or dropped connections.
Next to continue.
Next to continue .
wireless
Next to apply your settings. The Smart
Phone: 888-573-8820
Email: techsupport@ampedwireless.com
Web: www.ampedwireless.com/support
