VERSION
# 21-02-04
1 / 10
MODEL #
CM7008 EK / CK VN
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
3 - Pe ople
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Winn Park CM7008EK
Summary of Contents for Furniture of America Winn Park CM7008EK

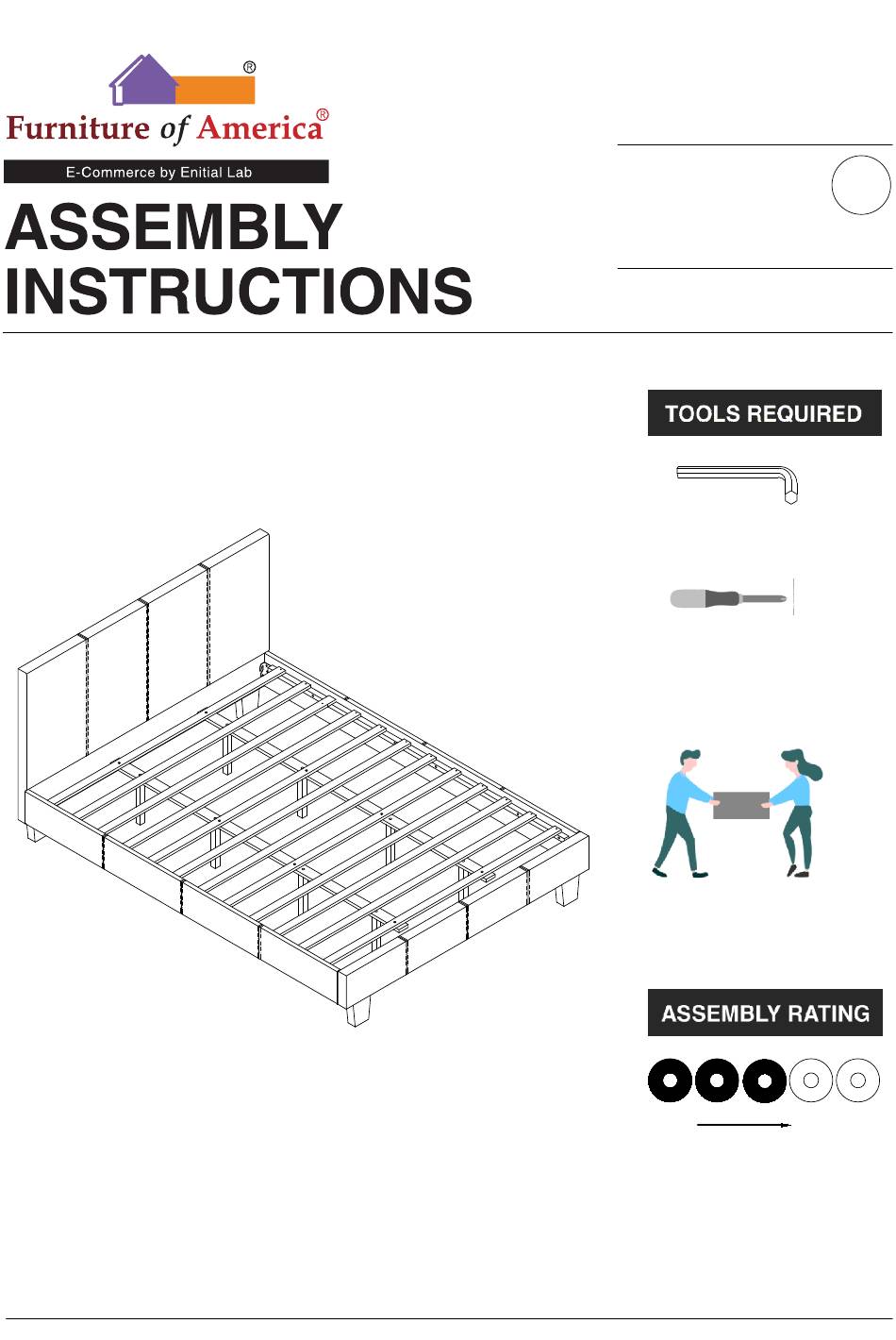

- Page 1 MODEL # CM7008 EK / CK VN Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - Pe ople Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 10...
- Page 5 CM7008EK/CK #1 1pc #2 1pc #3 2pcs #4 4pcs Headboard Panel Bed Rail Footboard #5 1set #6 2pcs #7 8pcs Ø1/4" Support leg Slat Center Support Bed Slat (12pcs) 256x30x30mm #C 16pcs #A 8pcs #B 16pcs Lock Washer Ø5/16" Bolt Ø5/16" x 4" Flat Washer Ø5/16"...
-
Page 6: Exploded View
Exploded View 6 / 10... - Page 7 CM7008EK/CK VN is packed in 2 cases Hardware Part Carton Disignation #A x 8pcs #B x 16pcs Headboard Panel #C x 16pcs #D x 8pcs #F x 1pc CM7008EK/CK-HB Bed Slat #E x 32pcs Bed Rail Footboard CM7008EK/CK-FBR Slat Center Support Support leg Ø1/4"...
- Page 8 ASSEMBLY INSTRUCTIONS Part #1 x1pc #5 x 1set Back #4 x 4pcs #A x 8pcs #B x 16pcs #C x 16pcs #D x 8pcs #F x 1pc #E x 32pcs Align legs (#4) to the headboard (#1), then secure by using bolts (#A) with washers (#B,C). Part #1 x1pc Part #4 x2pcs Hardware #A x4 pcs...
- Page 9 ASSEMBLY INSTRUCTIONS Part #2 x1pc Part #4 x2pcs Hardware #A x4 pcs Hardware #B x4 pcs Hardware #C x4 pcs Align legs (#4) to the footboard (#2), then secure by using bolts (#A) with washers (#B,C). Align side rails (#3) to the headboard (#1) and footboard (#2), then secure by using bolts (#D) with washers (#B,C).
- Page 10 ASSEMBLY INSTRUCTIONS Attach support legs (#7) to the slats (#6), then adjust the levelers on the support legs (#7) according to ground level. Part #6 x1pc Part #7 x4pcs Align slats (#5) to side rails (#3) and center slats (#6), Part #5 x12pcs then secure by using screws (#E).
