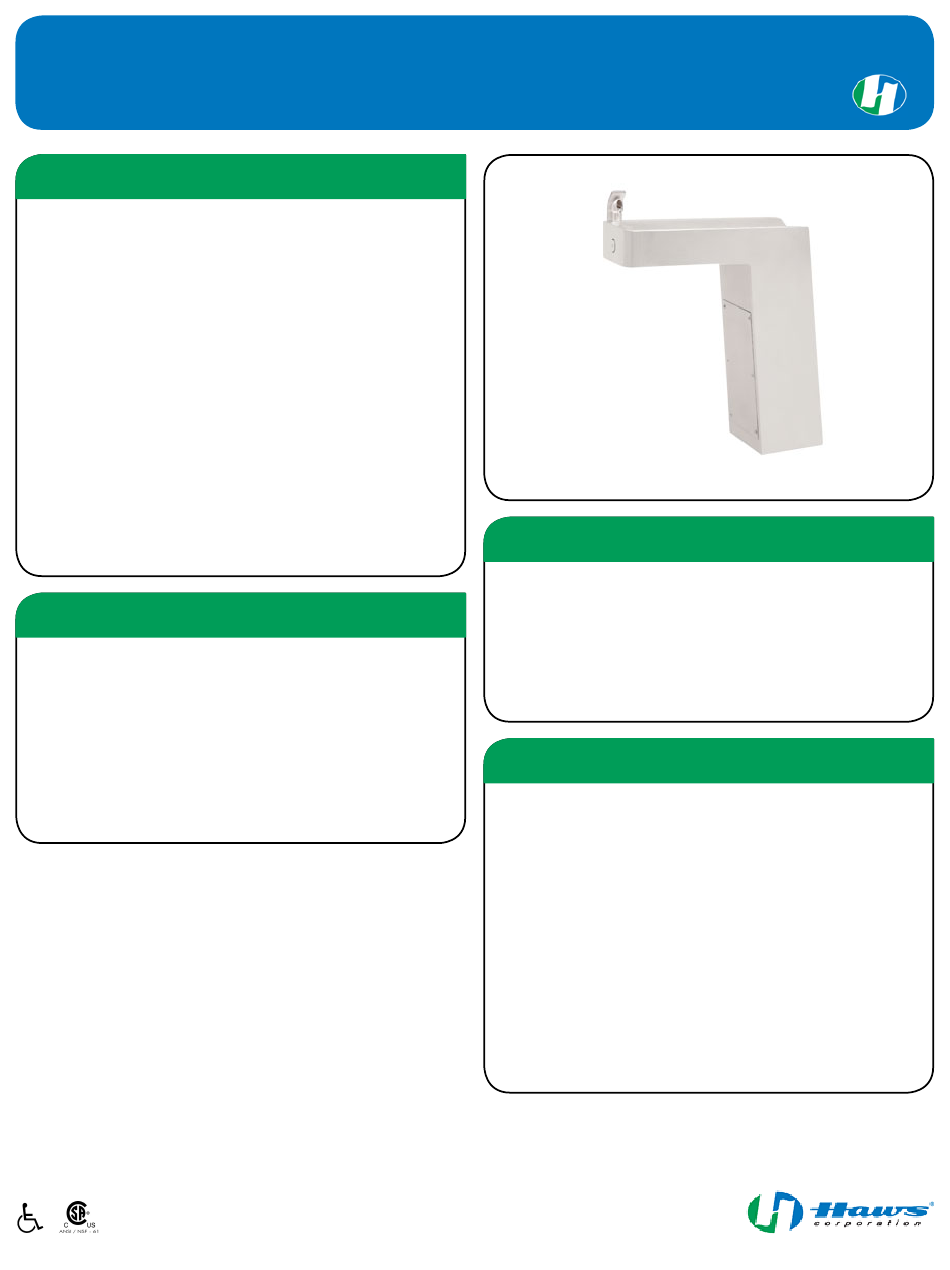

Haws 3202G Installation, Operation & Maintenance Instructions Manual

3202G

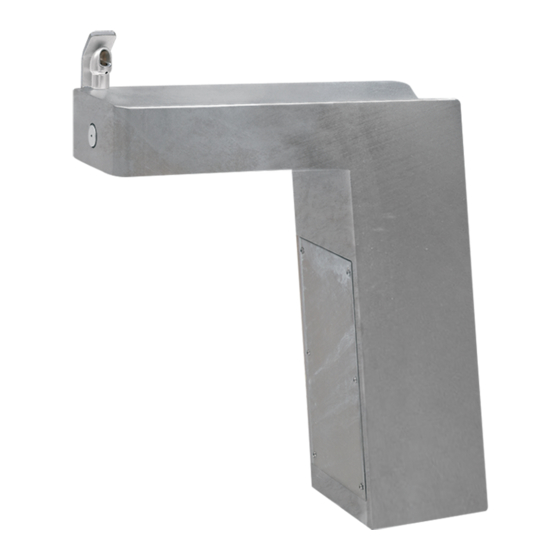

Pedestal Mounted Drinking Fountain
FEATURES & BENEFITS
Bubbler Head
Polished chrome-plated brass bubbler head features an integral
basin shank for added strength, and is equipped with a shielded,
anti-squirt orifice that provides a steady sanitary source of water.
Construction
Heavy-duty 12 gauge galvanized steel finish that incorporates a
recessed push button and welded bubbler guard to provide extra
durability, a large access panel for ease of service, and a
vandal-resistant bottom plate for added peace of mind.
Drain Free
Unique design allows this pedestal fountain to be placed in the
harshest of outdoor environments without the worry of a clogged
drain. When water is activated, the excess flow runs from its
trough basin off the back and onto the ground - perfect for
beaches, play grounds, and other areas high in debris.
Push Button
With its patented (Pat.# 6,981,692) push-button valve assembly
which allows for front access stream adjustment as well as
cartridge and strainer access, this fountain offers the ultimate in
ease of maintenance.

OPTIONS

o
Bubbler Head: Model 5725 EnviroGard™ bubbler is a polished
chrome-plated solid brass bubbler head with stainless steel
water activated pop up canopy. (Pat.# 7,025,282)
o
Hose Bib: Model 6275, compression hose bib faucet assembly
with rough chrome-plated finish.
o
Bib Faucet: Model 6250LF, self-closing, plain end, lead-free,
brass bib faucet with polished chrome-plated finish.
o Filter: Model 6426, 12" x 2", in-line lead removal element that
reduces lead from incoming water supply.
DISCLAIMER: Continued product improvements make specifications subject to change without notice. Check www.hawsco.com for the latest product information and updates.
1455 Kleppe Lane | Sparks, NV 89431 | [p] 775.359.4712 | [f] 775.359.7424 | [e] info@hawsco.com | www.hawsco.com | 4 March, 2009

SPECIFICATIONS

Model 3202G barrier-free pedestal drinking fountain shall include a
12 gauge galvanized steel pedestal, push-button operated valve
with front-accessible cartridge and flow adjustment, polished
chrome-plated brass vandal-resistant bubbler head backed against
a pedestal guard, trough design in the pedestal instead of a waste
to eliminate clogging and a 1/4" spacer to raise the pedestal off the
ground which reduces the potential for corrosion, integral mounting
feet, and an over-size vandal-resistant access plate.

APPLICATIONS

Perfect for either public or private settings, the 3202G trough style
fountain is a great fit in areas more prone to drain clogging.
Completely eliminating the need for a traditional fountain drain,
trough fountains are a nice complement to outdoor environments
where a gravel fill can be implemented.
galvanized finish make for a solid freestanding design that will hold
up and blend in with the environment.
fountain is applicable in forest/campground environments as well
as parks, schools, and other outdoor areas where drinking facilities
are needed.
Model meets all current Federal Regulations for the disabled
including those in the Americans with Disabilities Act.
manufactures drinking fountains, electric water coolers and electric
drinking fountains to be lead-free by all known definitions including
ANSI/NSF Standard 61, Section 9, California Proposition 65, and
the Federal Safe Drinking Water Act.
Heavy-duty steel and
More specifically, this
Haws
