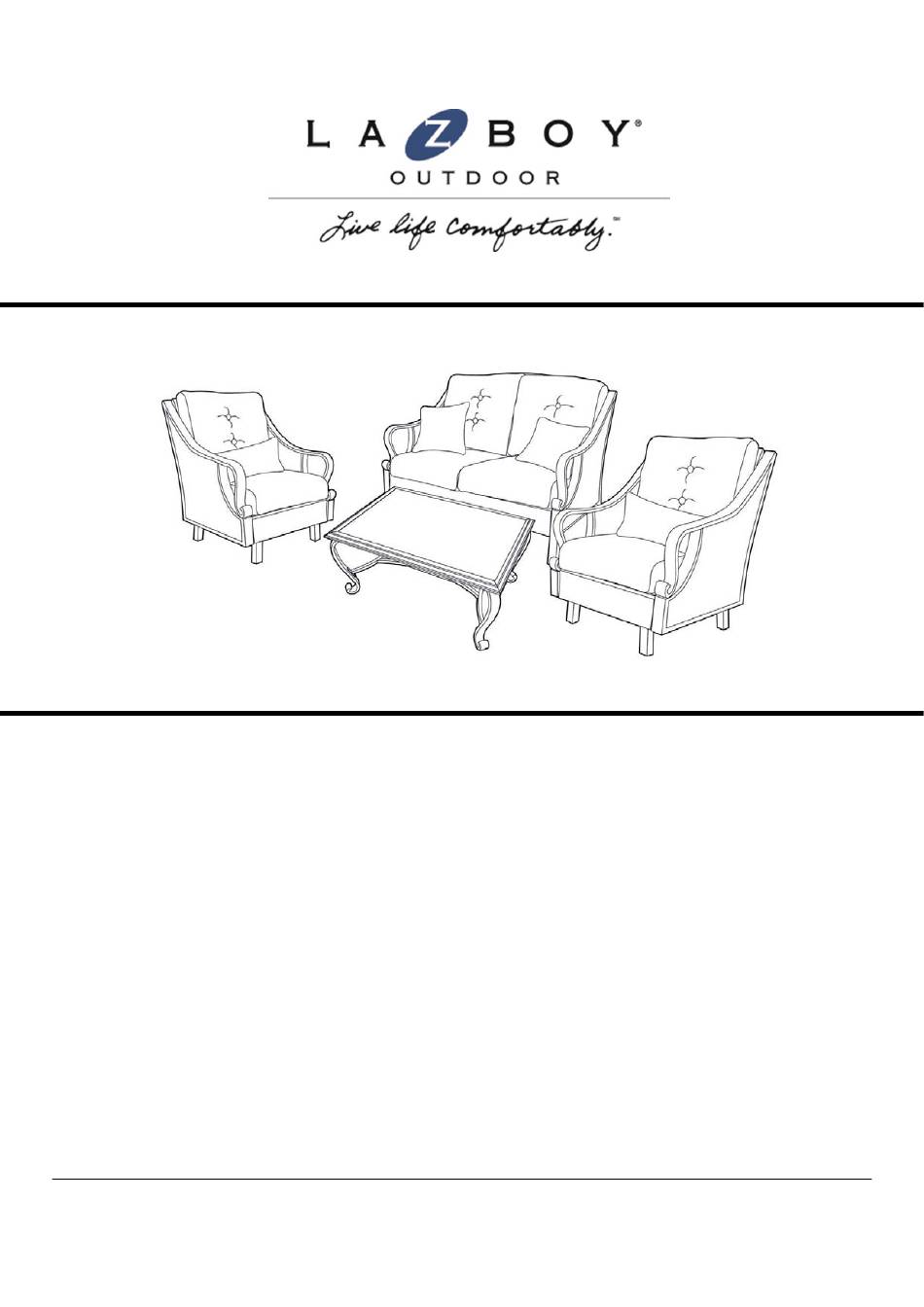

- Page 1 USE AND CARE GUIDE Sears Peyton 4pc Seating Set Product Code: D71 M80900 UPC Code: 7-22938-07945-2 Date of Purchase: __ / __ / __ La-Z-Boy® is a registered trademark of La-Z-Boy Incorporated and is used under license to BJI, Inc.
-
Page 2: Table Of Contents
Thank you for your purchase THANK YOU FOR YOUR PURCHASE! We are pleased that you have chosen Sears for your outdoor furniture purchase. We hope that you enjoy the unmatched quality, comfort, and style of your new patio set. Every piece is meticulously considered all the way down to the smallest details, exclusively for you, by our world class design team. -
Page 3: Safety Information
Safety Information SET UP YOUR FURNITURE PROPERLY Ensure that all parts are assembled □ properly and fully tightened as per the WARNING: instructions. 1. Do not crawl, stand, or sit on table tops. 2. Do not set or lay heavy items on table When placing in the desired location, □... -
Page 4: Care And Maintenance
Warranty (continued) Proof of purchase (dated register receipt) is required for warranty claims. We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in production. For a copy of our full limited warranty, please contact our customer service team below. Contact the Customer Service Team at 1-866-391-4868 or visit www.bjifurniture.com. -
Page 5: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY PLEASE READ COMPLETE USE AND CARE GUIDE PRIOR TO ASSEMBLY! Identify all parts packed in the carton against the parts list. Remove all protective materials and place the parts on a nonabrasive surface to avoid scratching. It takes about 45 minutes for 3 persons to complete all the assembly. - Page 6 Pre-Assembly (continued) LOVESEAT HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6*45mm hex bolt M6*15mm Hex Bolt M6 washer M6 bolt cap Hex wrench COFFEE TABLE HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6*20mm hex bolt...
- Page 7 Pre-Assembly (continued) ACTION LOUNGE CHAIR PACKAGE CONTENTS Part Description Quantity Right arm Left arm Back frame Seat frame Base Seat cushion Back cushion Lumbar pillow...
- Page 8 Pre-Assembly (continued) LOVESEAT PACKAGE CONTENTS Part Description Quantity Right arm Left arm Back frame Seat frame Seat cushion Back cushion Toss pillow...
- Page 9 Pre-Assembly (continued) COFFEE TABLE PACKAGE CONTENTS Part Description Quantity Table rim Leg connector Ring Ceramic tile Safety Information EVERY BOLT NEEDS TO BE USED WITH A WASHER. □ DO NOT FULLY TIGHTEN BOLT UNTIL INDICATED IN STEP 2 & 3 FOR ACTION LOUNGE □...
-
Page 10: Assembly Instructions
Action Lounge Assembly Instruction Attaching the arm □ Attach the right arm (A) to the back (C) using M6 hex bolts (AA) and M6 washers (CC). □ Repeat these instructions to attach the left arm (B) to the back (C). □... - Page 11 Action Lounge Assembly Instruction (continued) Attaching the seat □ Attach the seat (D) to the right arm (A) using M6 hex bolts (AA) and M6 washers (CC). □ Tighten all M6 hex bolts (AA) with the hex wrench (HH). Attach the M6 hex bolt caps (FF).
- Page 12 Action Lounge Assembly Instruction (continued) Attaching the base □ Attach the base (E) to the seat (D) using M8 Hex bolts (BB), M8 nuts (EE) and M8 washers (DD). □ Tighten all M8 hex bolts (BB) with the hex wrench (HH). Attach the M8 bolt caps (GG).
- Page 13 Action Lounge Assembly Instruction (continued) Adding the cushions □ Place the seat cushion (F), back cushion (G) and lumbar pillow (H) onto the action lounge chair. □ Repeat these instructions to another action lounge. □ Action lounges are ready for your enjoyment.
-
Page 14: Loveseat
Loveseat Assembly Instruction Attaching the arm □ Attach the right arm (A) to the back (C) using hex bolts (AA) and washers (CC). □ Repeat these instructions to attach the left arm (B) to the back (C). □ Do not tighten the hex bolts until assembly is complete. - Page 15 Loveseat Assembly Instruction (continued) Attaching the seat □ Attach the seat (D) to the left arm (B) using hex bolts (AA) and washer (CC). □ Repeat these instructions to attach the seat (D) to the right arm (A). □ Attach the seat (D) to the back (C) using hex bolts (BB) and washer (CC). □...
- Page 16 Loveseat Assembly Instruction (continued) Adding the cushions □ Place the seat cushion (E), the back cushion (F) and toss pillow (G) onto the loveseat. □ The loveseat is now ready for use.
-
Page 17: Coffee Table
Coffee Table Assembly Instruction Attaching the table rim □ Remove the plastic clamps from the table rim (A), and remove the ceramic tile top (D) form the table rim (A), and carefully place the ceramic top (D) on a soft surface. □... - Page 18 Coffee Table Assembly Instruction (continued) Attaching the connector ring □ Attach the leg (B) to the connector ring (C) using hex bolt (AA) and washer (BB). □ Ensure all bolts are aligned and assembled correctly. □ Tighten all hex bolts (AA) with the hex wrench (DD). Attach the hex bolt caps (CC).
- Page 19 Coffee Table Assembly Instruction (continued) Replacing the ceramic top WARNING: 1. Do not crawl, stand, or sit on tile table tops. 2. Do not set or lay heavy items on tile table tops. 3. Avoid extreme hot &cold items being placed on tile table tops.
- Page 20 Please refer to part number when reordering Questions, problems, missing parts? Before returning to the store, call our Customer Service 8 a.m. - 5 p.m., EST, Monday-Thursday 8 a.m. – 4 p.m., EST, Friday 1-866-391-4868 Made in/ Hecho en CHINA Distributed by Sears, Roebuck and Co., Hoffman Estates, IL60179 See our extensive assortment of outdoor living products on-line at www.sears.com and www.kmart.com...
