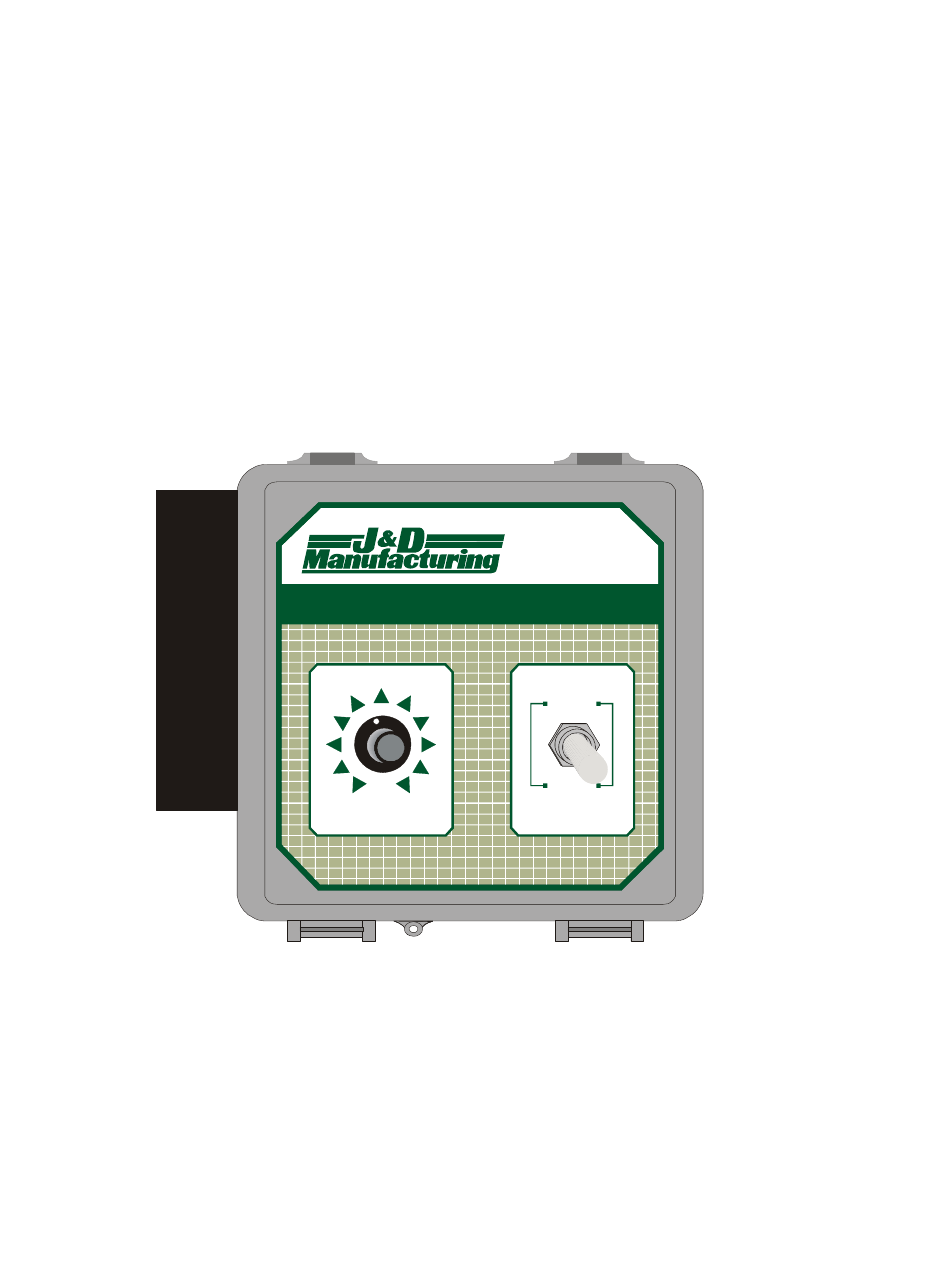

- Page 1 MANUAL JD-MV1 Manual Variable Speed Control JD-MV1 SPEED Installation / User’s Guide...
-
Page 2: Mounting Hardware Required
JD-MV1 This guide will inform the electrician on proper wiring and installation procedures and, will also inform the user on how to use the JD-MV1 controller. The manufacturer recommends that the following installation instructions be followed to as closely as possible, and that all work be performed by a certified electrician. -
Page 3: General Installation Guidelines
JD-MV1 General installation guidelines JD-MV1 It is recommended to install the unit in a hallway to limit the JD-MV1 exposure to noxious gases. In order to avoid condensation problems inside the JD-MV1, it is recommended to install the module on an inside wall. If it is not possible, use spacers to have an air gap between the wall and the controller. - Page 4 JD-MV1 Mounting The enclosure must be mounted in a location that will allow the cover to be completely opened. Fasten the four brackets to the four mounting holes on the back of the enclosure using the four screws provided with the brackets.
-
Page 5: Wiring Procedure
5. Make sure that the voltage selector switch is set to the correct voltage before powering up the JD-MV1 (refer to figure 3 for the location of the switch). 6. Power up the JD-MV1 controller. Verify that the controller operates correctly. - Page 6 JD-MV1 Figure 2: Wiring Diagram 230V LINE VOLTAGE 115/230 WARNING! To avoid electric shock, disconnect power source prior to installation or troubleshooting. Make sure that the voltage selector switch is set to the correct voltage before powering up the controller.
- Page 7 JD-MV1 Using the JD-MV1 With the JD-MV1 you can manually control a variable output. Refer to figures 3 and 4 for the location of the different switches and selectors of the controller. Figure 3: Electronic Board and component location 15A/250V...
- Page 8 JD-MV1 Figure 4: JD-MV1 Faceplate JD-MV1 SPEED 1. Speed Selector This selector is used to set the speed at which the output will run. 2. ON/OFF Switch This switch is used to activate or not the variable output. Page 8...
- Page 9 JD-MV1 The JD-MV1 controller will make the fan modulate according to the Speed Selector and the ON/OFF Switch on the faceplate (refer to figure 4). It is also possible to adjust the Minimum Speed with the potentiometer located inside the controller box on the electronic board (refer to figure 3).
-
Page 10: Specifications
JD-MV1 Specifications DESCRIPTION VALUE Storage temperature -4°F to 131°F (-20°C to 55°C) Operating temperature 32°F to 113°F (0°C to 45°C) Humidity 90% maximum Non-condensing Weight 1,4 lb (0,6 kg) Size 5 15/16” x 5 15/16” x 3 9/16” (15 cm x 15 cm x... -
Page 11: Limited Warranty
JD-MV1 Limited Warranty The manufactured equipment and supplied components have gone through rigorous inspection to assure optimal quality of product and reliability. Individual controls are factory tested under load, however the possibility of equipment failure and/or malfunction may still exist. - Page 12 JD-MV1 VER : 1.2 April 5, 2011...
