  • Page 1 FUELPORT FULL-SIZE FUELPORT...
  • Page 2 Last Revision Date: March 8, 2016 For the most up-to-date information for this product and others, please contact Simplex, Inc. at (800) 637-8603 or visit us on the web at http://www.simplexdirect.com.

  • Page 3: Table Of Contents

    Table of Contents Warnings and Cautions ............1 Safety information symbols Cautions Nameplates and Placards ............. 3 Description and Specification ..........4 Unpacking ................9 Included Components and Parts Primary Inspection Installation ................10 Welding FuelPort to Tank Attaching FuelPort to Post Attaching FuelPort to Base Mounting FuelPort Recessed into Wall Mounting Full-Size FuelPort...
  • Page 4 Table of Figures Specifications .....................5 FuelPort Dimensions ..................6 Full-Size FuelPort Dimensions..............7 Recessed-Mount FuelPort Dimensions .............8 Weld Brackets ....................10 FuelPort Post ....................10 FuelPort Base ....................10...

  • Page 5: Warnings And Cautions

    1 WARNINGS AND CAUTIONS The following images indicate important safety information: afety information This General warning symbol points out important SymbolS information that, if not followed, could endanger personal safety and/or property. This Explosion warning symbol points out poten- tial explosion hazards. This Fire warning symbol points out potential fire hazards.
  • Page 6 (ampacity) to which they will be subjected. • Before installing or servicing this (and related) equipment, make sure that all power voltage supplies are completely turned off at their source. Failure to do so will result in haz- ardous and possibly fatal electrical shock. •...

  • Page 8: Description And Specification

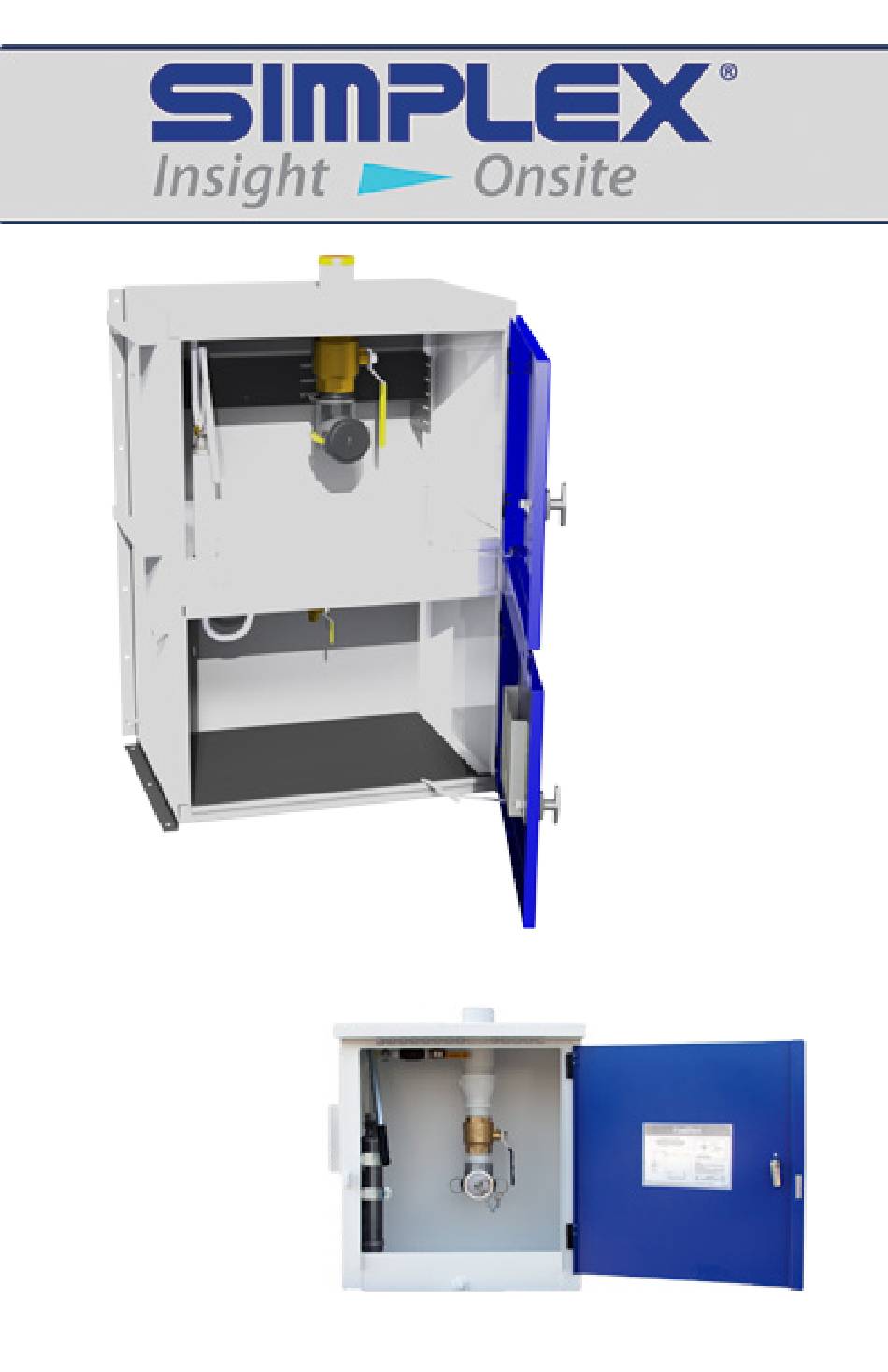

    3 DESCRIPTION AND SPECIFICATION The Simplex FuelPort is a compact, economical solution for simple filling and spill prevention for fuel-storage tanks. The Fu- elPort includes all valves and fittings necessary for hose connec- tion from a pumper truck. The FuelPort is available in two models: The standard Fu- elPort, which is 32 inches tall and has a 7-gallon containment capacity, and the Full-Size FuelPort, which is 51.5 inches tall and...
  • Page 9 Table 1 Specifications Delivery Type Pumper truck Enclosure Weatherproof, lockable box with 7 gallon spill contain- ment Inlet Connection Quick disconnect hose coupling with dust plug Shutoff Manual Types of Fuel Class I liquids, < 100°F flash point (Gasoline) Class II liquids, 100°F - 140°F flash point (Diesel fuel) Inlet Fitting Size 2”, 3”...
  • Page 10 Figure 1 FuelPort Dimensions 6 — Description and Specification...
  • Page 11 Figure 2 Full-Size FuelPort Dimensions Description and Specification — 7...
  • Page 12 Figure 3 Recessed-Mount FuelPort Dimensions 8 — Description and Specification...

  • Page 13: Unpacking

    4 UNPACKING The following items are included with your FuelPort. If nCluded any of the following are not included, please contact Simplex, omponentS Inc., at 800-637-8603. artS 1. FuelPort 2. Manual Preventative visual inspection of the rimary shipping crate and the fuel port is advised.

  • Page 14: Installation

    Figure 5 FuelPort Post and bolting the FuelPort to them. Follow all necessary safety procedures when welding the brackets to your tank. Simplex is not responsible for damages or injuries sus- tained due to improper safety precautions. With the post mount-...

  • Page 15: Attaching Fuelport To Base

    FuelPort and attach it via the predrilled mounting flange. Ensure that the wall and mounting eCeSSed into hardware are sufficient to support the FuelPort’s weight. Simplex is not responsible for damages occurring as a result of insuffi- cient support.

  • Page 16: Operating Instructions

    6 OPERATING INSTRUCTIONS 1. Connect ground cable 2. Unlock FuelPort and open door 3. Connect delivery hose to hose coupling 4. Open valve on truck and valve in FuelPort 5. Start fill pump 6. Stop fill pump when tank is full or as needed 7.

  • Page 17: Appendix A - Product Warranty

    APPENDIx A — PRODUCT WARRANTY SIMPLEX, Inc., warrants the industrial electrical control, test and accessory equipment and parts and accessories thereof to be the kind and quality described in SIMPLEX’s specifications and to be free from defects in material or workmanship under normal...
  • Page 18 At Simplex, we are experts at building products that meet our customers’ exact requirements. For a complete listing of Simplex products visit www.simplexdirect.com.
  • Page 19 LOAD BANK RENTAL AND SERVICE CENTERS Simplex Onsite can place Load Banks, Cables, Transformers, and Fuel Polish- ers rentals as well as service technicians at your fingertips anywhere in the United States quickly and cost effectively. For information call 855-767-5483 or visit www.simplexonsite.com.
  • Page 20 Simplex, Inc. 5300 Rising Moon Road 2100 Boggs Road Springfield, IL 62711-6228 Duluth, GA 30096-4691 (800) 637-8603 www.simplexdirect.com...
