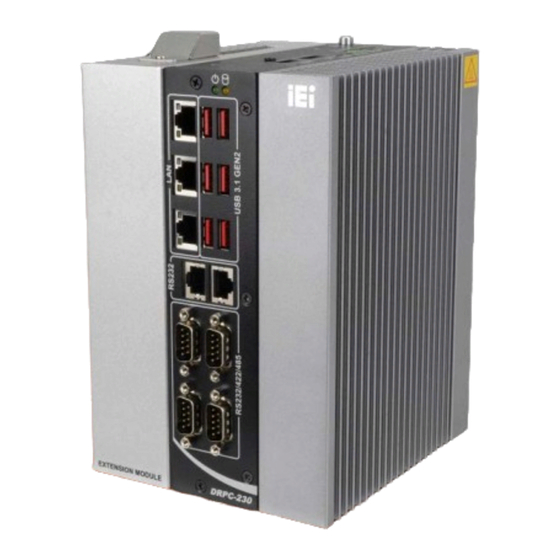

DRPC-230-ULT5 Embedded System
MODEL:
DRPC-230-ULT5
Fanless Embedded System with Intel® Core™ i5-8365UE /
Celeron® 4205U CPU, Triple GbE, Four RS-232/422/485,
Two RS-232, USB 3.2 Gen 2, HDMI, DisplayPort,
DIN Rail Mounting Support, RoHS Compliant
User Manual
Page i
Rev. 1.02 – April 9, 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRPC-230-ULT5 and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology DRPC-230-ULT5

Summary of Contents for IEI Technology DRPC-230-ULT5

  • Page 1 DRPC-230-ULT5 Embedded System MODEL: DRPC-230-ULT5 Fanless Embedded System with Intel® Core™ i5-8365UE / Celeron® 4205U CPU, Triple GbE, Four RS-232/422/485, Two RS-232, USB 3.2 Gen 2, HDMI, DisplayPort, DIN Rail Mounting Support, RoHS Compliant User Manual Page i Rev. 1.02 – April 9, 2021...
  • Page 2 DRPC-230-ULT5 Embedded System Revision Date Version Changes April 9, 2021 1.02 Updated operating temperature December 9, 2020 1.01 Added information of the DRPC-230-ULT5-C/8G/S SKU April 20, 2020 1.00 Initial release Page ii...
  • Page 3 DRPC-230-ULT5 Embedded System Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 DRPC-230-ULT5 Embedded System Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product.

  • Page 5: Table Of Contents

    1.5 T ......................... 5 ANEL 1.6 T ..................6 ECHNICAL PECIFICATIONS 1.7 D ....................... 8 IMENSIONS 1.7.1 DRPC-230-ULT5-i5/8G/S & DRPC-230-ULT5-C/8G/S ........8 1.7.2 DRPC-230-ULT5-i5/8G ..................9 2 UNPACKING ....................... 10 2.1 A ..................11 STATIC RECAUTIONS 2.2 U ..................11 NPACKING RECAUTIONS 2.3 P...
  • Page 6 DRPC-230-ULT5 Embedded System 3.11 DIN R .................... 30 OUNTING 3.12 P ..................32 OWER ROCEDURE 3.12.1 Installation Checklist ..................32 3.12.2 Terminal Block Pinouts .................. 32 3.12.3 Power-on Procedure ..................33 3.13 A ....................34 VAILABLE RIVERS 3.13.1 Driver Download ................... 34 4 TROUBLESHOOTING AND MAINTENANCE .............
  • Page 7 DRPC-230-ULT5 Embedded System 5.3.7 F81866 Super IO Configuration ..............56 5.3.7.1 Serial Port n Configuration ............... 57 5.3.8 Serial Port Console Redirection ..............58 5.3.8.1 Legacy Console Redirection Settings ............59 5.3.8.2 Console Redirection Settings ..............60 5.3.9 USB Configuration ................... 62 5.3.10 CSM Configuration ..................
  • Page 8 DRPC-230-ULT5 Embedded System B.1 S ..................... 93 AFETY RECAUTIONS B.1.1 General Safety Precautions ................93 B.1.2 Anti-static Precautions ..................94 B.1.3 Explanation of Graphical Symbols ..............94 B.1.4 Product Disposal ..................... 95 B.2 M ............96 AINTENANCE AND LEANING RECAUTIONS B.2.1 Maintenance and Cleaning ................
  • Page 9 Figure 1-1: DRPC-230-ULT5 Series ....................2 Figure 1-2: Front Panel ........................4 Figure 1-3: Top Panel ........................5 Figure 1-4: DRPC-230-ULT5-i5/8G/S & DRPC-230-ULT5-C/8G/S Dimensions (mm) ....8 Figure 1-5: DRPC-230-ULT5-i5/8G Dimensions (mm) ..............9 Figure 3-1: Internal Access Panel Retention Screws ..............17 Figure 3-2: HDD Installation ......................18...
  • Page 10 DRPC-230-ULT5 Embedded System List of Tables Table 1-1: DRPC-230-ULT5 Model Variations ................3 Table 1-2: Technical Specifications ....................7 Table 3-1: PCIe Mini Card Slot (MINI_PCIE1) Pinouts ...............21 Table 3-2: M.2 Module Slot (M2_A1) Pinouts ................26 Table 3-3: RS-232/422/485 DB-9 Connector Pinouts ..............27 Table 3-4: RS-232 RJ-45 Connector Pinouts ................27...

  • Page 11: Introduction

    DRPC-230-ULT5 Embedded System Chapter Introduction Page 1...

  • Page 12: Overview

    DIN rail mounting method. The DRPC-230-ULT5 accepts a wide range of DC power input (12 V ~ 24 V), allowing it to be powered anywhere. It is equipped with up to six USB 3.2 Gen 2 (10Gb/s), three GbE, four RS-232/422/485, two RS-232 ports, one HDMI and one DisplayPort to provide rich I/O options for various applications.

  • Page 13: Model Variations

    DRPC-230-ULT5 Embedded System 1.2 Model Variations The model variations of the DRPC-230-ULT5 are listed below. Model No. PCIe x4 Expansion Width ® Intel Core™ i5-8365UE 81 mm DRPC-230-ULT5-i5/8G/S ® Intel Core™ i5-8365UE Supports 127 mm DRPC-230-ULT5-i5/8G accelerator cards ® Intel Celeron®...

  • Page 14: Front Panel

    DRPC-230-ULT5 Embedded System 1.4 Front Panel The DRPC-230-ULT5 front panel contains:  3 x RJ-45 Gigabit LAN ports  4 x RS-232/422/485 serial ports (DB-9)  2 x RS-232 serial ports (RJ-45)  USB ports i5 models: six USB 3.2 Gen 2 (10Gb/s) C model: four USB 3.2 Gen 2 (10Gb/s) + two USB 2.0...

  • Page 15: Top Panel

    DRPC-230-ULT5 Embedded System 1.5 Top Panel The DRPC-230-ULT5 top panel contains:  1 x 12 V ~ 24 V DC power terminal block  1 x Earth ground connector  1 x HDMI connector  1 x DisplayPort connector ...

  • Page 16: Technical Specifications

    DRPC-230-ULT5 Embedded System 1.6 Technical Specifications The DRPC-230-ULT5 technical specifications are listed in Table 1-2. DRPC-230-ULT5-i5/S DRPC-230-ULT5-i5 DRPC-230-ULT5-C/S ® ® ® CPU (SoC) Intel Core™ i5-8365UE processor 1.6 GHz Intel Celeron 4205U (up to 4.1 GHz, quad core, TDP=15W) (1.8 GHz, dual-core,...

  • Page 17: Table 1-2: Technical Specifications

    DRPC-230-ULT5 Embedded System Interior Expansion PCIe Mini 1 x Full-size (PCIe / USB 3.0 / SATA) 1 x Internal on-board SIM slot (A WWAN module must be installed in the PCIe Mini slot to provide WWAN communication.) 1 x M.2 2230 A-Key (PCIe x1 / USB 2.0) 1 x M.2 2230 A-Key...

  • Page 18: Dimensions

    DRPC-230-ULT5 Embedded System 1.7 Dimensions The physical dimensions of the DRPC-230-ULT5 series are shown below. 1.7.1 DRPC-230-ULT5-i5/8G/S & DRPC-230-ULT5-C/8G/S Figure 1-4: DRPC-230-ULT5-i5/8G/S & DRPC-230-ULT5-C/8G/S Dimensions (mm) Page 8...

  • Page 19: Drpc-230-Ult5-I5/8G

    DRPC-230-ULT5 Embedded System 1.7.2 DRPC-230-ULT5-i5/8G Figure 1-5: DRPC-230-ULT5-i5/8G Dimensions (mm) Page 9...

  • Page 20: Unpacking

    DRPC-230-ULT5 Embedded System Chapter Unpacking Page 10...

  • Page 21: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the DRPC-230-ULT5. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the DRPC-230-ULT5 or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

  • Page 22: Packing List

    If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the DRPC-230-ULT5 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@ieiworld.com.

  • Page 23: Optional Items

    DRPC-230-ULT5 Embedded System 2.4 Optional Items The following table lists the optional items that can be purchased separately. Optional Power adapter , 60 W (P/N: 63040-010060-210-RS) 1&2 Power adapter , 96 W (P/N: 63040-010096-230-RS) Power cable , DC jack to 3-pin terminal block,...
  • Page 24 1. It is required to order a power cable together with the power adapter for power usage. 2. Please select 96W adapter if intend to add accelerator cards. 3. Each Wi-Fi module needs two antennas and two RF cables to fully support Wi-Fi function. 4. Only applicable for the DRPC-230-ULT5-i5/8G-R10 Page 14...

  • Page 25: Installation

    DRPC-230-ULT5 Embedded System Chapter Installation Page 15...

  • Page 26: Installation Precautions

     Qualified Personnel: Never open the equipment. For safety reasons, the DRPC-230-ULT5 should be opened only by qualified skilled person. It must be installed and operated only by trained and qualified personnel. Maintenance, upgrades, or repairs may only be carried out by qualified personnel who are familiar with the associated dangers.

  • Page 27: Internal Access Panel Removal

    3.2 Internal Access Panel Removal Before installing or maintaining the internal components, the internal access panel must be removed from the DRPC-230-ULT5. Follow the steps below to complete the task. Step 1: Remove the six retention screws indicated in Figure 3-1.

  • Page 28: Hdd Installation

    Please install a solid state drive (SSD) when the DRPC-230-ULT5 is used in a harsh environment with extreme shock and vibration. The DRPC-230-ULT5 allows installation of one 2.5" HDD/SSD. To install a HDD into the system, please follow the steps below.

  • Page 29: Pcie Mini Card Installation

    DRPC-230-ULT5 Embedded System 3.4 PCIe Mini Card Installation The DRPC-230-ULT5 has one full-size PCIe Mini slot (MINI_PCIE1) on the motherboard for mSATA SSD or WWAN module installation. To install a full-size PCIe Mini module, follow the instructions below. Step 1: Remove the internal access panel from the DRPC-230-ULT5.

  • Page 30: Figure 3-5: Inserting The Pcie Mini Card Into The Slot At An Angle

    DRPC-230-ULT5 Embedded System Step 4: Line up the notch on the card with the notch on the slot. Slide the PCIe Mini card into the socket at an angle of about 20º (Figure 3-5). Figure 3-5: Inserting the PCIe Mini Card into the Slot at an Angle...

  • Page 31: Pcie Mini Card Slot Pinouts (Mini_Pcie1)

    DRPC-230-ULT5 Embedded System 3.4.1 PCIe Mini Card Slot Pinouts (MINI_PCIE1) The MINI_PCIE1 slot supports USB, SATA and PCIe signal for installing mSATA or WWAN modules. PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCIE_WAKE# VCC3 1.5V UIM_PWR UIM_DATA PCIE_CLK# UIM_CLK PCIE_CLK UIM_RST...

  • Page 32: Sim Card Installation

    DRPC-230-ULT5 Embedded System 3.5 SIM Card Installation NOTE: A WWAN module must be installed in the PCIe Mini slot (MINI_PICE1) to provide WWAN communication. To install a SIM card, please follow the steps below. Step 1: Locate the SIM card slot (Figure 3-7).

  • Page 33: Figure 3-9: Sim Card Installation

    DRPC-230-ULT5 Embedded System Step 3: Open the slot cover and place a SIM card onto the slot. The cut mark on the corner should be facing away from the slot as shown in Figure 3-9. Figure 3-9: SIM Card Installation...

  • Page 34: Module Installation

    DRPC-230-ULT5 Embedded System 3.6 M.2 Module Installation The DRPC-230-ULT5 has one M.2 2230 A-key slot on the motherboard. To install a M.2 module, follow the instructions below. Step 1: Remove the internal access panel from the DRPC-230-ULT5. See Section 3.2.

  • Page 35: Module Slot Pinouts (M2_A1)

    DRPC-230-ULT5 Embedded System Step 4: Secure the M.2 module with the retention screw removed previously (Figure 3-13). Figure 3-13: Securing the M.2 Module 3.6.1 M.2 Module Slot Pinouts (M2_A1) The M2_A1 slot supports USB 2.0 and PCIe signal for installing a variety of M.2 2230 A-key modules.

  • Page 36: Table 3-2: M.2 Module Slot (M2_A1) Pinouts

    DRPC-230-ULT5 Embedded System PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCIE_TX0+ PCIE_TX0- PCIE_RX0+ PCIE_RX0- CLK_PCIE0+ CLK_PCIE0- BUF_PLT_RST# PCIE_CLKREQ# Pull Up +V3.3A PCIE_WAKE# Pull Up +V3.3A +V3.3A +V3.3A Table 3-2: M.2 Module Slot (M2_A1) Pinouts Page 26...

  • Page 37: Rs-232/422/485 Serial Port Connection

    PIN NO. RS-232 RS-422 RS-485 Table 3-3: RS-232/422/485 DB-9 Connector Pinouts 3.8 RS-232 Serial Port Connection The DRPC-230-ULT5 has two RJ-45 connectors for RS-232 connection. The pinouts of the RJ-45 connectors are listed below. PIN NO. RS-232 RING INDICATOR (RI)

  • Page 38: Lan Connection

    DRPC-230-ULT5 Embedded System 3.9 LAN Connection The LAN connectors allow connection to an external network. Description Description LAN_MDI0P LAN_MDI2P LAN_MDI0N LAN_MDI2N LAN_MDI1P LAN_MDI3P LAN_MDI1N LAN_MDI3N Table 3-5: LAN Pinouts Figure 3-14: RJ-45 Ethernet Connector The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green LED indicates activity on the port and the yellow LED indicates the port is linked.

  • Page 39: At/Atx Mode Selection

    DRPC-230-ULT5 Embedded System 3.10 AT/ATX Mode Selection AT and ATX power modes can both be used on the DRPC-230-ULT5. The selection is made through an AT/ATX switch on the top panel as shown below (Figure 3-15). Figure 3-15: AT/ATX Switch Location...

  • Page 40: Din Rail Mounting

    DRPC-230-ULT5 Embedded System 3.11 DIN Rail Mounting To mount the DRPC-230-ULT5 onto a DIN rail, please follow the steps below. Step 1: Prepare the DIN rail mounting bracket by sliding the small metal block into the slot of the bracket as shown below.

  • Page 41: Figure 3-18: Attach The Mounting Bracket To The Din Rail

    DRPC-230-ULT5 Embedded System NOTE: In the diagrams below, the DIN rail is already installed on a surface or on a chassis. Step 3: Attach the upper edge of the mounting bracket to the DIN rail as shown in Figure 3-18.

  • Page 42: Power -O N Procedure

    The system is securely mounted 3.12.2 Terminal Block Pinouts The DRPC-230-ULT5 model has a 12 V–24 V power input terminal block. The terminal block pinouts are shown below. Make sure that the power and ground wires are attached to the correct sockets of the connector.

  • Page 43: Power-On Procedure

    Step 2: Use the M4*6 screw that came with the package to secure the grounding cable with the grounding connector on the top panel of the DRPC-230-ULT5. Step 3: ATX mode (default): Long press the power button for around 5 seconds until the power LED turns to green.

  • Page 44: Available Drivers

    DRPC-230-ULT5 Embedded System 3.13 Available Drivers All the drivers for the DRPC-230-ULT5 are available on IEI Resource Download Center (https://download.ieiworld.com). Type DRPC-230-ULT5 and press Enter to find all the relevant software, utilities, and documentation. Figure 3-21: IEI Resource Download Center 3.13.1 Driver Download...
  • Page 45 DRPC-230-ULT5 Embedded System Step 3: Click the driver file name on the page and you will be prompted with the  following window. You can download the entire ISO file ( ), or click the small  arrow to find an individual driver and click the file name to download (...

  • Page 46: Troubleshooting And Maintenance

    DRPC-230-ULT5 Embedded System Chapter Troubleshooting and Maintenance Page 36...

  • Page 47: System Maintenance Overview

    Failure to follow these instructions may lead to personal injury and system damage. To preserve the working integrity of the DRPC-230-ULT5 embedded system, the system must be properly maintained. If embedded system components need replacement, the proper maintenance procedures must be followed to ensure the system can continue to operate normally.

  • Page 48: The System Doesn't Boot Up

    If all troubleshooting measures have been taken and the system still fails to start, contact the IEI reseller or vendor you purchased the DRPC-230-ULT5 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@ieiworld.com.

  • Page 49: Clear Cmos

    Step 0: 4.3.1 Clear CMOS If the DRPC-230-ULT5 fails to boot due to improper BIOS settings, the clear CMOS button clears the CMOS data and resets the system BIOS information. To do this, push the clear CMOS button for a few seconds.

  • Page 50: Me Override Jumper

    DRPC-230-ULT5 Embedded System 4.3.2 ME Override Jumper The ME Override jumper (ME_FLASH1) allows users to enable or disable the ME firmware update. Refer to Figure 4-2 and Table 4-1 for the jumper location and settings. Setting Description Open Disabled (default)

  • Page 51: Bios

    DRPC-230-ULT5 Embedded System Chapter BIOS Page 41...

  • Page 52: Introduction

    DRPC-230-ULT5 Embedded System 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 53: Getting Help

    DRPC-230-ULT5 Embedded System Function Decrease the numeric value or make changes Esc key Main Menu – Quit and not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu...

  • Page 54: Main

    DRPC-230-ULT5 Embedded System The following sections completely describe the configuration options found in the menu items at the top of the BIOS screen and listed above. 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered.

  • Page 55: Advanced

    DRPC-230-ULT5 Embedded System The System Overview field has two user configurable fields:  System Date [xx/xx/xx] Use the System Date option to set the system date. Manually enter the day, month and year.  System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

  • Page 56: Cpu Configuration

    DRPC-230-ULT5 Embedded System 5.3.1 CPU Configuration Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications and configure the CPU. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced CPU Configuration When enabled, a VMM can...
  • Page 57 DRPC-230-ULT5 Embedded System  Active Processor Cores [All] Use the Active Processor Cores BIOS option to enable numbers of cores in the processor package.  Enable all cores in the processor package. EFAULT  Enable one core in the processor package.

  • Page 58: Pch-Fw Configuration

    DRPC-230-ULT5 Embedded System 5.3.2 PCH-FW Configuration The PCH-FW Configuration menu (BIOS Menu 4) allows Intel® Active Management Technology (AMT) options to be configured. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced AMT BIOS Features [Enabled] When disabled AMT BIOS...

  • Page 59: Ptt Configuration

    DRPC-230-ULT5 Embedded System 5.3.2.1 PTT Configuration Use the PTT Configuration menu (BIOS Menu 5) to configure settings related to the Trusted Platform Module (TPM). Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced PTT Capability / State Select TPM device: PTT or dTPM.

  • Page 60: Trusted Computing

    DRPC-230-ULT5 Embedded System 5.3.3 Trusted Computing Use the Trusted Computing menu (BIOS Menu 6) to configure settings related to the Trusted Computing Group (TCG) Trusted Platform Module (TPM). Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced Configuration...

  • Page 61: Acpi Settings

    DRPC-230-ULT5 Embedded System 5.3.4 ACPI Settings The ACPI Settings menu (BIOS Menu 7) configures the Advanced Configuration and Power Interface (ACPI) options. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced ACPI Settings Select the highest ACPI sleep state the system...

  • Page 62: Rtc Wake Settings

    DRPC-230-ULT5 Embedded System 5.3.5 RTC Wake Settings The RTC Wake Settings menu (BIOS Menu 8) configures RTC wake event. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced Wake system with Fixed Time [Disabled] Enable or disable System wake on alarm event.

  • Page 63: Iwdd H/W Monitor

    DRPC-230-ULT5 Embedded System Wake up second After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off. 5.3.6 iWDD H/W Monitor The iWDD H/W Monitor menu (BIOS Menu 9) contains the fan configuration submenus and displays operating temperature, fan speeds and system voltages.

  • Page 64: Smart Fan Mode Configuration

    DRPC-230-ULT5 Embedded System +VDDQ +V1.05A +VCCSA +3.3V +3.3VSB 5.3.6.1 Smart Fan Mode Configuration Use the Smart Fan Mode Configuration submenu (BIOS Menu 10) to configure fan temperature and speed settings. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc.
  • Page 65 DRPC-230-ULT5 Embedded System  The fan adjusts its speed using these Auto Mode EFAULT settings: Auto mode fan start temperature Auto mode fan off temperature Auto mode fan start PWM Auto mode fan slope PWM  Auto mode fan start temperature [40]...

  • Page 66: F81866 Super Io Configuration

    DRPC-230-ULT5 Embedded System fan off temperature, the fan speed change to be lowest. To set a value, select the Auto mode fan off temperature option and enter a decimal number between 1 and 100.  Auto mode fan start PWM [30] The Auto mode fan start PWM option can only be set if the CPU_FAN1 Smart Fan control option is set to Auto Mode.

  • Page 67: Serial Port N Configuration

    DRPC-230-ULT5 Embedded System 5.3.7.1 Serial Port n Configuration Use the Serial Port n Configuration menu (BIOS Menu 12) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced Serial Port 1 Configuration Enable or Disable Serial...

  • Page 68: Serial Port Console Redirection

    DRPC-230-ULT5 Embedded System 5.3.8 Serial Port Console Redirection The Serial Port Console Redirection menu (BIOS Menu 13) allows the console redirection options to be configured. Console redirection allows users to maintain a system remotely by re-directing keyboard input and text output through the serial port.

  • Page 69: Legacy Console Redirection Settings

    DRPC-230-ULT5 Embedded System  Console Redirection [Disabled] Use Console Redirection option to enable or disable the console redirection function.  Disabled the console redirection function Disabled EFAULT  Enabled Enabled the console redirection function 5.3.8.1 Legacy Console Redirection Settings The Legacy Console Redirection Settings menu (BIOS Menu 14) allows the legacy console redirection options to be configured.

  • Page 70: Console Redirection Settings

    DRPC-230-ULT5 Embedded System  COM6  COM7 (Pci Bus0, Dev0, Func0) (Disabled) 5.3.8.2 Console Redirection Settings The Console Redirection Settings menu (BIOS Menu 15) allows the console redirection options to be configured. The option is active when Console Redirection option is enabled.
  • Page 71 DRPC-230-ULT5 Embedded System  Bits per second [115200] Use the Bits per second option to specify the serial port transmission speed. The speed must match the other side. Long or noisy lines may require lower speeds.  Sets the serial port transmission speed at 9600.

  • Page 72: Usb Configuration

    DRPC-230-ULT5 Embedded System  Stop Bits [1] Use the Stop Bits option to specify the number of stop bits used to indicate the end of a serial data packet. Communication with slow devices may require more than 1 stop bit.

  • Page 73: Csm Configuration

    DRPC-230-ULT5 Embedded System USB drivers loaded. When this option is enabled, any attached USB mouse or USB keyboard can control the system even when there is no USB driver loaded onto the system.  Enabled Legacy USB support enabled EFAULT ...

  • Page 74: Nvme Configuration

    DRPC-230-ULT5 Embedded System 5.3.11 NVMe Configuration Use the NVMe Configuration (BIOS Menu 18) menu to display the NVMe controller and device information. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc. Advanced NVMe controller and Drive information No NVMe Device Found --------------------- : Select Screen...

  • Page 75: Iei Feature

    DRPC-230-ULT5 Embedded System 5.3.12 IEI Feature Use the IEI Feature menu (BIOS Menu 19) to configure One Key Recovery function. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced iEi Feature Auto Recovery Function Reboot and recover Auto Recovery Function...

  • Page 76: Chipset

    DRPC-230-ULT5 Embedded System 5.4 Chipset Use the Chipset menu (BIOS Menu 20) to configure the system chipset. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit > System Agent (SA) Configuration System Agent (SA) >...

  • Page 77: Memory Configuration

    DRPC-230-ULT5 Embedded System  VT-d [Disabled] Use the VT-d option to enable or disable VT-d support.  Disable VT-d support. Disabled EFAULT  Enabled Enable VT-d support. 5.4.1.1 Memory Configuration Use the Memory Configuration submenu (BIOS Menu 22) to display the memory information.

  • Page 78: Graphics Configuration

    DRPC-230-ULT5 Embedded System 5.4.1.2 Graphics Configuration Use the Graphics Configuration menu (BIOS Menu 23) to configure the graphics settings. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Chipset Graphics Configuration Select which of Auto/IGFX/PCIE Graphics Primary Display [Auto]...
  • Page 79 DRPC-230-ULT5 Embedded System  Enable the internal graphics device. The following Enabled EFAULT options/submenu appear with values that can be selected: DVMT Pre-Allocated DVMT Total Gfx Mem LCD Control  DVMT Pre-Allocated [32M] Use the DVMT Pre-Allocated option to set the amount of system memory allocated to the integrated graphics processor when the system boots.

  • Page 80: Pch-Io Configuration

    DRPC-230-ULT5 Embedded System 5.4.2 PCH-IO Configuration Use the PCH-IO Configuration menu (BIOS Menu 24) to configure the PCH-IO chipset. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Chipset PCH-IO Configuration Select AC power state when power is re-applied after...
  • Page 81 DRPC-230-ULT5 Embedded System  Power Saving Function(ERP) [Disabled] Use the Power Saving Function(ERP) BIOS option to enable or disable the power saving function.  Disabled Power saving function is disabled. EFAULT  Enabled Power saving function is enabled. It will reduce power consumption when the system is off.

  • Page 82: Pci Express Configuration

    DRPC-230-ULT5 Embedded System 5.4.2.1 PCI Express Configuration Use the PCI Express Configuration submenu (BIOS Menu 25) to configure the PCI Express slots. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Chipset PCI Express Configuration PCI Express Root Port Settings.
  • Page 83 DRPC-230-ULT5 Embedded System  M2_A1 / MINI_PCIE1 / PCIEX4_1 [Enabled] Use the M2_A1 / MINI_PCIE1 / PCIEX4_1 option to enable or disable the M.2, PCIe Mini or PCIe x4 expansion slots.  Disabled Disables the expansion slot.  Enabled Enables the expansion slot.

  • Page 84: Sata And Rst Configuration

    DRPC-230-ULT5 Embedded System 5.4.2.2 SATA And RST Configuration Use the SATA And RST Configuration menu (BIOS Menu 27) to change and/or set the configuration of the SATA devices installed in the system. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc.
  • Page 85 DRPC-230-ULT5 Embedded System  SATA Mode Selection [AHCI] Use the SATA Mode Selection option to configure how the SATA controller(s) operate.  Configures SATA devices as AHCI device. AHCI EFAULT  Intel RST Configures SATA devices as RAID device. Premium...

  • Page 86: Security

    DRPC-230-ULT5 Embedded System 5.5 Security Use the Security menu (BIOS Menu 28) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Password Description Set Administrator Password If ONLY the Administrator’s password is set,...

  • Page 87: Boot

    DRPC-230-ULT5 Embedded System 5.6 Boot Use the Boot menu (BIOS Menu 29) to configure system boot options. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Boot Configuration Select the keyboard...
  • Page 88 DRPC-230-ULT5 Embedded System  Quiet Boot [Enabled] Use the Quiet Boot BIOS option to select the screen display when the system boots.  Normal POST messages displayed Disabled  Enabled OEM Logo displayed instead of POST messages EFAULT  Launch PXE OpROM [Disabled] Use the Launch PXE OpROM option to enable or disable boot option for legacy network devices.

  • Page 89: Save & Exit

    DRPC-230-ULT5 Embedded System 5.7 Save & Exit Use the Save & Exit menu (BIOS Menu 30) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Main...
  • Page 90 DRPC-230-ULT5 Embedded System  Save as User Defaults Use the Save as User Defaults option to save the changes done so far as user defaults.  Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options.

  • Page 91: Interface Connectors

    DRPC-230-ULT5 Embedded System Chapter Interface Connectors Page 81...

  • Page 92: Peripheral Interface Connectors

    DRPC-230-ULT5 Embedded System 6.1 Peripheral Interface Connectors The DRPC-230-ULT5 embedded system motherboard comes with a number of peripheral interface connectors and configuration jumpers. The connector locations are shown in Table 6-1. The Pin 1 locations of the on-board connectors are also indicated in the diagrams.

  • Page 93: Internal Peripheral Connectors

    DRPC-230-ULT5 Embedded System 6.2 Internal Peripheral Connectors Internal peripheral connectors on the motherboard and are only accessible when the motherboard is outside of the chassis. The table below shows a list of the connectors on the motherboard. Pinouts of these connectors can be found in the following sections.

  • Page 94: Digital I/O Connector (Dio1)

    DRPC-230-ULT5 Embedded System 6.2.2 Digital I/O Connector (DIO1) PIN NO. DESCRIPTION Output 3 Output 2 Output 1 Output 0 Input 3 Input 2 Input 1 Input 0 Table 6-3: Digital I/O Connector (DIO1) Pinouts 6.2.3 Fan Connectors (CPU/FAN1, CPU/FAN2) PIN NO.

  • Page 95: Sata Connector (Sata1)

    DRPC-230-ULT5 Embedded System 6.2.5 SATA Connector (SATA1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION +V5S SATA_RX+ SATA_RX- +V5S +V5S SATA_TX- +V5S SATA_TX+ +V5S Table 6-6: SATA 6Gb/s Connector (SATA1) Pinouts 6.2.6 SMBus Connector (SMB1) PIN NO. DESCRIPTION SMBus (I C) Data...

  • Page 96: Tpm Connector (Tpm1)

    DRPC-230-ULT5 Embedded System 6.2.8 TPM Connector (TPM1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION SPI_TPM_CS0# PM_RSTRSM# SPI_TPM_CLK Pull High SPI_TPM_SO SPI_TPM_HOLD# SPI_TPM_SI SPI_TPM_CS2# SPI_TPM_WP SPI_TPM_INT# +3.3V+TPM PCIE_RST# Table 6-9: TPM Connector (TPM1) Pinouts 6.2.9 USB DOM Connector (DOM1) PIN NO. DESCRIPTION PIN NO.

  • Page 97: A Regulatory Compliance

    DRPC-230-ULT5 Embedded System Appendix Regulatory Compliance Page 87...
  • Page 98 DRPC-230-ULT5 Embedded System DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives:  EMC Directive 2014/30/EU  Low-Voltage Directive 2014/35/EU  RoHS II Directive 2015/863/EU If the user modifies and/or install other devices in the equipment, the CE conformity declaration may no longer apply.
  • Page 99 DRPC-230-ULT5 Embedded System Ελληνική [Greek] IEI Integration Corp ΔΗΛΩΝΕΙ ΟΤΙ ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ. Français [French] IEI Integration Corp déclare que l'appareil est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
  • Page 100 DRPC-230-ULT5 Embedded System Slovensky [Slovak] IEI Integration Corp týmto vyhlasuje, že zariadenia spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES. Suomi [Finnish] IEI Integration Corp vakuut aa täten että l itteet on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
  • Page 101 DRPC-230-ULT5 Embedded System FCC WARNING This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:  This device may not cause harmful interference, and  This device must accept any interference received, including interference that may cause undesired operation.

  • Page 102: B Safety Precautions

    DRPC-230-ULT5 Embedded System Appendix Safety Precautions Page 92...

  • Page 103: Safety Precautions

    DRPC-230-ULT5 Embedded System B.1 Safety Precautions WARNING: The precautions outlined in this appendix should be strictly followed. Failure to follow these precautions may result in permanent damage to the DRPC-230-ULT5. Please follow the safety precautions outlined in the sections that follow: B.1.1 General Safety Precautions...

  • Page 104: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the DRPC-230-ULT5. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the DRPC-230-ULT5 is opened and any of the electrical components are handled, the following anti-static precautions are strictly adhered to.

  • Page 105: Product Disposal

    DRPC-230-ULT5 Embedded System B.1.4 Product Disposal CAUTION: Risk of explosion if the battery is replaced by an incorrect type; Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types);...

  • Page 106: Maintenance And Cleaning Precautions

    Some components in the DRPC-230-ULT5 may only be cleaned using a product specifically designed for the purpose. In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the DRPC-230-ULT5. ...

  • Page 107: C Digital I/O Interface

    DRPC-230-ULT5 Embedded System Appendix Digital I/O Interface Page 97...
  • Page 108 DRPC-230-ULT5 Embedded System The DIO connector on the DRPC-230-ULT5 is interfaced to GPIO ports on the Super I/O chipset. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices. Data can be read or written to the selected address to enable the DIO functions.
  • Page 109 DRPC-230-ULT5 Embedded System AH – 6FH Sub-function: AL – 9 :Set the digital port as OUTPUT :Digital I/O output value Assembly Language Sample 2 AX, 6F09H ;setting the digital port as output BL, 09H ;digital value is 09H Digital Output is 1001b...

  • Page 110: D Watchdog Timer

    DRPC-230-ULT5 Embedded System Appendix Watchdog Timer Page 100...
  • Page 111 DRPC-230-ULT5 Embedded System NOTE: The following discussion applies to DOS. Contact IEI support or visit the IEI website for drivers for other operating systems. The Watchdog Timer is a hardware-based timer that attempts to restart the system when it stops working. The system may stop working because of external EMI or software bugs.
  • Page 112 DRPC-230-ULT5 Embedded System NOTE: The Watchdog Timer is activated through software. The software application that activates the Watchdog Timer must also deactivate it when closed. If the Watchdog Timer is not deactivated, the system will automatically restart after the Timer has finished its countdown.

  • Page 113: E Error Beep Code

    DRPC-230-ULT5 Embedded System Appendix Error Beep Code Page 103...

  • Page 114: Pei Beep Codes

    DRPC-230-ULT5 Embedded System E.1 PEI Beep Codes Number of Beeps Description Memory not Installed Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed...

  • Page 115: F Hazardous Materials Disclosure

    DRPC-230-ULT5 Embedded System Appendix Hazardous Materials Disclosure Page 105...

  • Page 116: Rohs Ii Directive (2015/863/Eu)

    DRPC-230-ULT5 Embedded System F.1 RoHS II Directive (2015/863/EU) The details provided in this appendix are to ensure that the product is compliant with the RoHS II Directive (2015/863/EU). The table below acknowledges the presences of small quantities of certain substances in the product, and is applicable to RoHS II Directive (2015/863/EU).

  • Page 117: China Rohs

    DRPC-230-ULT5 Embedded System F.2 China RoHS 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求。 Page 107...

This manual is also suitable for:

Drpc-230-ult5-i5/8g/sDrpc-230-ult5-i5/8gDrpc-230-ult5-c/8g/s

Table of Contents
