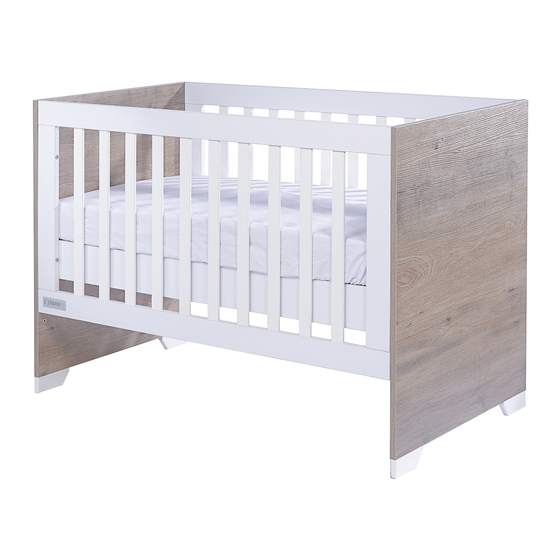

Ancona cot / Torino cot
Save this instruction for furture reference.
Assembly of this furniture is best under taken by two people.
Torino cot
Torino toddler bed
This instruction show the assembly of the
Ancona cot, however the Torino cot is designed
of the same base, this instruction is applicable
across the Torino cot.
SJC Brands Pty Ltd
abn.
58 106 988 578
4-6 Merryvale Rd, Minto, NSW 2566
t.
02 9603 5000
f. 02 9603 7000
e.
customer.service@sjcbrands.com.au
p.o. box
5878 Minto,DC,NSW 2566
www.tasmaneco.com.au
w.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SJC brands tasman ECO Urban Collection Ancona
Summary of Contents for SJC brands tasman ECO Urban Collection Ancona

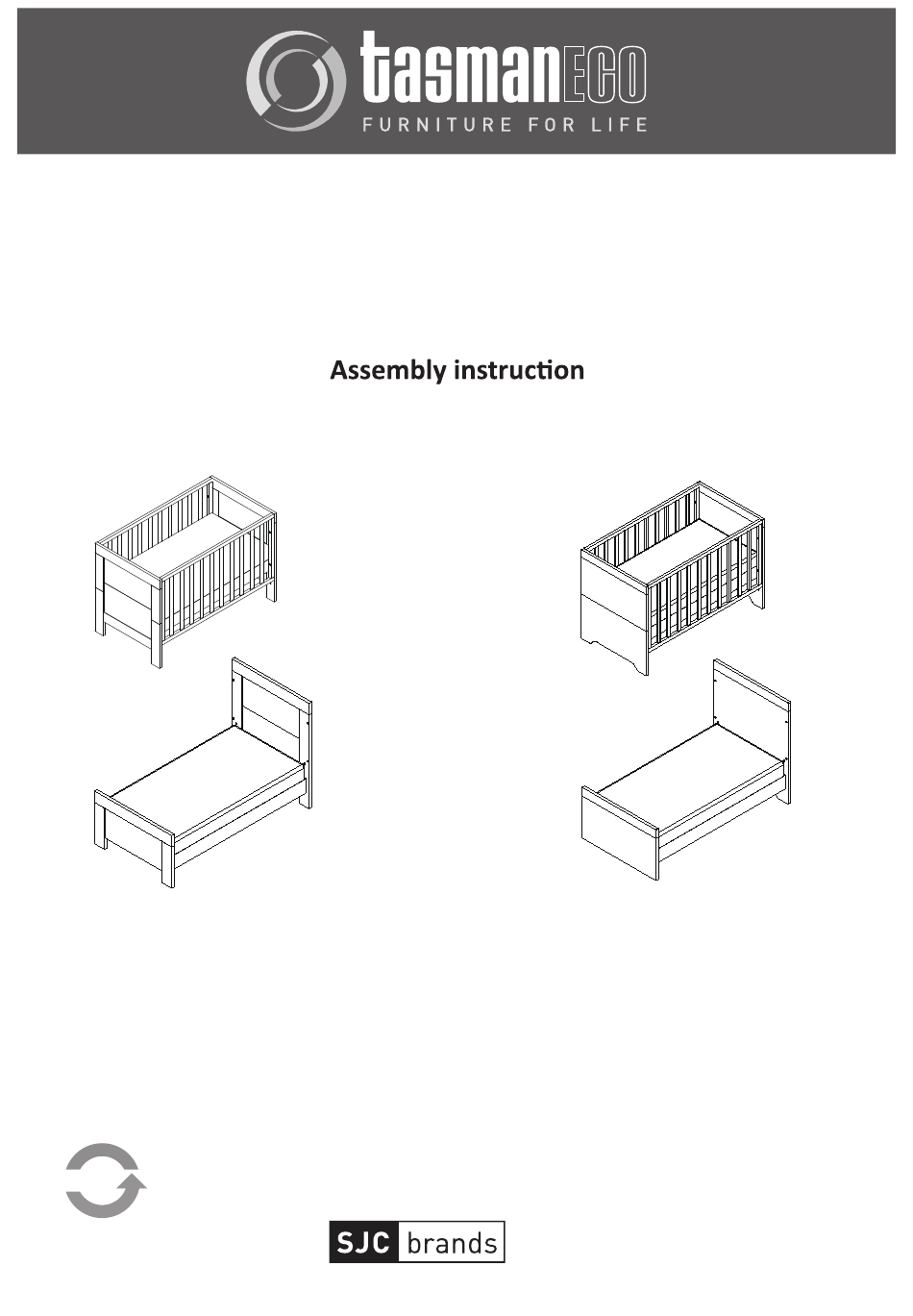

- Page 1 Torino cot. Save this instruction for furture reference. RECYCLED Assembly of this furniture is best under taken by two people. customer.service@sjcbrands.com.au SJC Brands Pty Ltd abn. 58 106 988 578 Packaging and instructions 4-6 Merryvale Rd, Minto, NSW 2566 p.o.
- Page 2 Parts List Cot side x 2 Cot rail x 2 Base Slats x 2 Ancona cot Headboard Right headboard x 1 Torino cot Headboard Left headboard ( bottom ) Left headboard ( Top ) Right headboard x 1...
- Page 3 Hardware List M6 x 50mm Bolt x 12 M6 x 15mm Cap screw x 8 M6 x 35mm Cap screw x 24 Allen key & Screw driver Lunar washer x 4 M6 x 20mm Double ended x 4 Base bracket x 4 M4x 20mm Bolt x 16 Care &...
- Page 4 Step1- Connect the base slats to cot rails secure with M6 x 35mm bolts. M6 x 35mm Bolt x 24 se lunar ashers to connect rails to headboards hen xing mm bolts to headboards Step2- x 1 mm cap scre s to unused holes M6 x 15mm cap bolt x 4 Right headboard Left headboard ( bottom )
- Page 5 Step3- M6 x 15mm Bolt x 2 Connect the side panels to headboards secure with M6 x 50mm bolts and M6 x20mm double endeds. Step4- Side panel Side panel Side panel M6 x 50 mm Bolt x 4 M6 x 50 mm Bolt x 4 M6 x 20mm Double ended x 2 M6 x 20mm Double ended x 2...
- Page 6 Regularly check cot for weakness in timber joints and timber panels. If any weaknesses are found, report immediately to SJC Brands via: www.tasmaneco.com.au Do not use cot if it has been damaged in any way and always use genuine Tasman Eco parts. Contact your nearest Tasman Eco...
- Page 7 Step 1- M4x20mm Bolt x 16 Right headboard Base bracket x 4 Lunar waher x 4 M6x 50mm Bolt x 4 Step2- Fix M6 x 15mm bolts with M6 x 20mm double endeds on unused holes. M6 x 20mm Double ended x 2 M6 x 15mm Bolt x 8...
- Page 8 The replacement product will be identical to the originally purchase product wherever possible, though in situations where the identical model is discontinued or out of stock, then SJC Brands Pty Ltd will replace the product with a model that is functionally equivalent This Guarantee is made to the purchaser and/or original owner only.
