Summary of Contents for Blueworks BLH Series

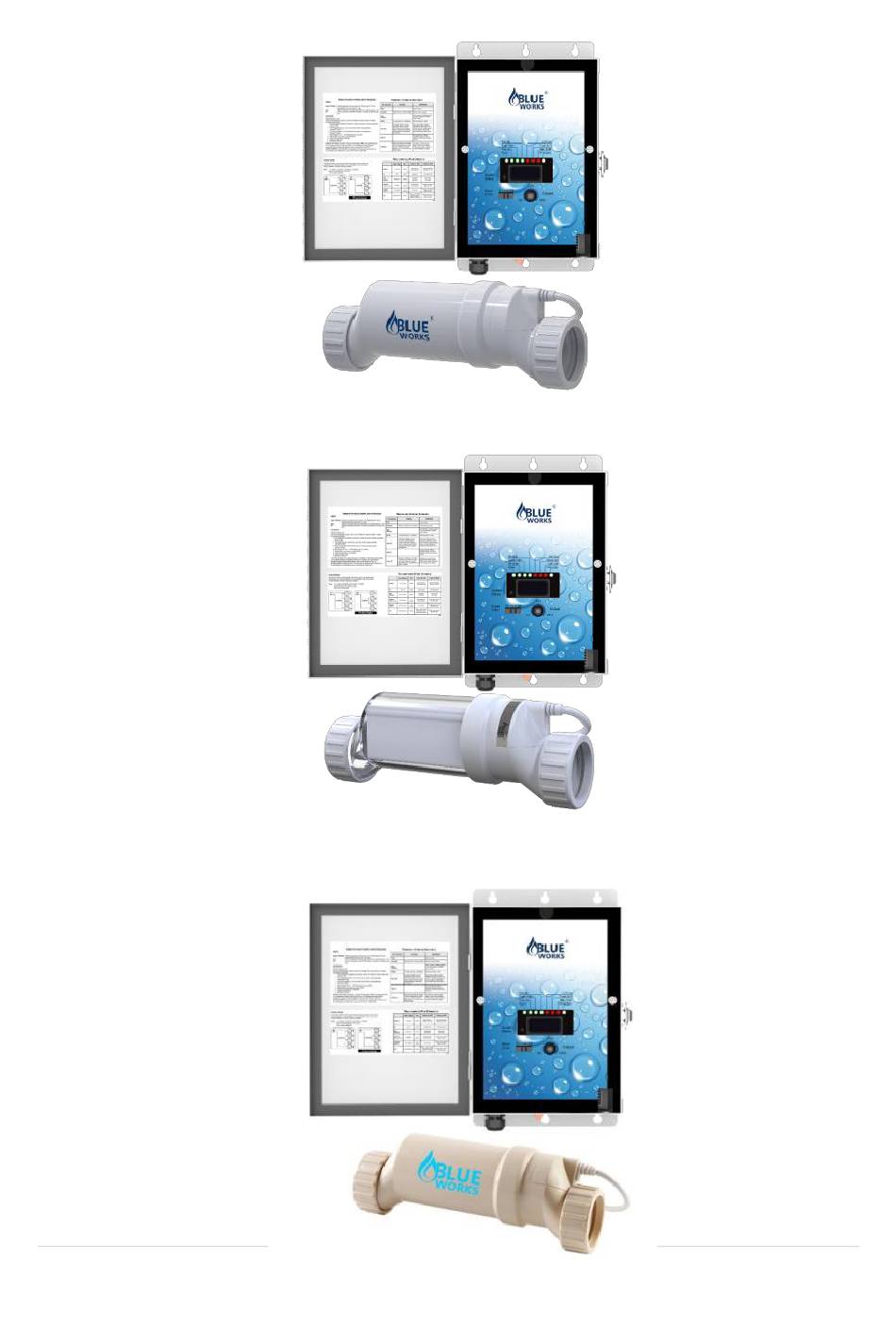

  • Page 1 P a g e...

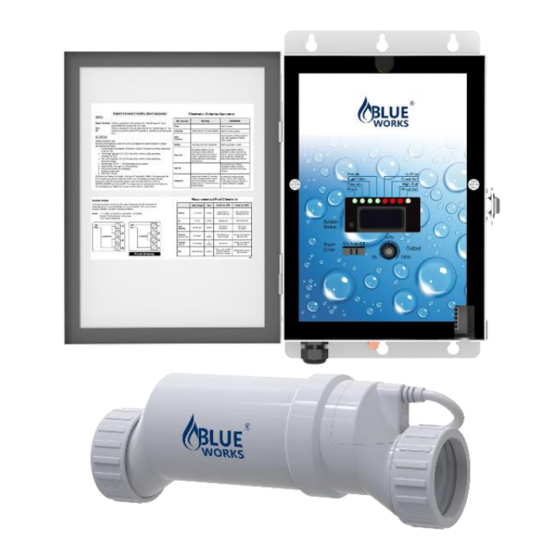

  • Page 2 BLUEWORKS BLH Series SALT CHLORINE GENERATOR INSTRUCTIONS READ BEFORE USE There are basic safety precautions that you need to follow to be safe. Including, Cautions Please note, the total working hours for the CELL should be less than 8 hours total per day. If you are using a variable speed pump for 24 hours a day be sure to adjust the chlorine output to 25-30%.
  • Page 3 WARNING Risk of Electric Shock. All electrical wiring MUST be in conformance with all applicable local codes, regulations, and the National Electric Code ® (NEC®). WARNING To reduce the risk of injury, do not permit children to use this product. WARNING Higher temperatures may require higher chlorine output to maintain proper free available chlorine residuals.
  • Page 4 use Sodium If additional chlorine is required (due to hot weather),  Hypochlorite to maintain an appropriate chlorine residual in the water. Proper pool chemistry must be maintained at all times.  A green colored terminal is located inside the wiring compartment. ...

  • Page 5: Table Of Contents

    Table of Contents OPERATION Introduction............6 Switches of Control..........7 Water chemistry.............9 Operation ............14 Installation............18 WARRANTY Warranty..............22 TROUBLESHOOTING Troubleshooting...........27 P a g e...

  • Page 6: Introduction

    INTRODUCTION BLH Salt water chlorination is a process that uses dissolved salt for chlorination swimming pools. chlorine generator uses electrolysis in the presence of dissolved salt to produce chlorine gas or its dissolved forms, hypochlorous acid and sodium hypochlorite, which are already commonly used as sanitizing in pools. The BLH is designed for residential swimming pool up to 60,000 gallons (230,000 liters).

  • Page 7: Switches Of Control

    Switches of Control AUTO: Generally, if the BLH is in “Auto”, it will automatically work according to the chlorine output settings. SUPER CHLOR: The “Super Chlor” function is the process of temporarily increasing the free chlorine levels in the pool for the P a g e...
  • Page 8 purpose of increased sanitation power. It's often necessary when the pool water is cloudy, free chlorine levels to fall below optimum levels. Switch to “ON”. It will work 100%, remember to back to “Auto” when you have desired chlorine. OFF: In “OFF” , the BLH stops outputting chlorine. NOTE: During the maintenance, please turn the power off the circuit breaker.

  • Page 9: Water Chemistry

    WATER CHEMISTRY For any pools, it is significant to maintain proper water chemistry of the pool water, including pH, calcium levels, and alkaline content, especially to maintain proper levels of salt and stabilizer. It helps to prevent corrosion or scaling and to bring better experience for pool users.
  • Page 10 Ideal Salt Levels & Pool Size Use the table below to help determine the amount of salt and pool size.The ideal salt level is between 3000-4000 ppm. 10 | P a g e...
  • Page 11 Type of Salt to Use Use evaporated, granular non-iodized salt (sodium chloride). The purer the salt (at least 99%). Improve the life and performance of the electrolytic cell. Water softening salt (also called water conditioner) Granules are an economical way to buy large amounts of salt. However, only NaCl salt with a purity of at least 99% can be used.
  • Page 12 Adding Salt POUNDS and (Kg) OF SALT NEEDED FOR 3400 PPM 12 | P a g e...
  • Page 13 To ensure BLH working well, swimming pool stabilizer to protect and extend the life of chlorine generator. Use the chart to see how to reach ideal 80 ppm. POUNDS and (Kg) OF STABILIZER (CYANURIC ACID) NEEDED FOR 80 PPM 13 | P a g e...

  • Page 14: Operation

    OPERATION By familiarizing yourself with the operation of the BLH generator, you can achieve maximum performance for your pool. When chemical levels are in the recommended range, there are FOUR factors that you can control. Filter time each day, amount of salt in the pool, the output of chlorine you set, and stabilizer level in the water will directly impact the amount of chlorine the BLH will generate.
  • Page 15 POWER: Power illuminated, model is in power. GENERATION: Model in normal operation, the LED will be steady. If it is flashing, check the pool water chemicals. SUPER CHLOR: The generator runs at 100% capacity which can produce enough chlorine to clear up moderate cloudiness, but the generator is forced to overwork.
  • Page 16 7. Software revision level 8. Cell type (F-3,F-9,C-9,F-15,C-15,T-15) BLH20: F-3 BLH30: F-9 BLH40: F-15 9. Salt Calibration (E000) 10. End of the loop (-EE) Spring Start-up When reopening the pool after long term, check all water chemistry before power on the BLH. Maintenance When checking other water chemistry levels, always monitor the salinity level of the swimming pool.
  • Page 17 How to clean the cell? Important information: If there is severe mineral accumulation, more than one cleaning may be required to dissolve the remaining solids. After cleaning, carefully inspect the cell plate with bright light. If you see any remaining scale, debris or physical blocked in the salt cell, please repeat the cleaning process as needed.

  • Page 18: Installation

    5) Look inside the unit and check if there is no debris or scale residue. If necessary, repeat steps 2-4. 6) Re install the cell into the PVC return pipe. Note: If you do not currently have a cleaning cap or cleaning rack, you can fully immerse the cell in a five-gallon bucket.
  • Page 19 vertical bracket comfortably horizontally. At least 3 feet above the ground. Hang the control on the bracket. Mounting the Flow Switch, and Cell. Flow switch, confirm that the arrows on the flow switch (located on the side) point in the same direction of water flow. The Cell and Flow Switch cables have easy plug-in connectors in the control, the diagram below for the location of these connections.
  • Page 20 Plumbing These instructions apply to 2-inch pipe (typical). Make sure to choose with existing pool pipe size (1.5 inches or 2 inches), and discard other unnecessary joints. For articulated connections, you will also use the included 2" to 1.5" reducer bushing to accommodate the flow switch. For 1½" installations,be sure to pay attention to any new or other measurements before cutting the tube.
  • Page 21 Overview 21 | P a g e...
  • Page 22 (1) or two (2) years specified below. To get service: Please email BLUEWORKS at Support@blueworkspool.com. Proof of purchase is required. This limited warranty is limited to the original purchaser of the BLH system and is not transferable.

  • Page 23: Warranty

    WARRANTY ( FOR COMMERCIAL USE) The BLH Salt Chlorinator Systems carry the following Limited Warranty should failure occur due to faulty manufacture or materials, during nor mal use and service. For Commercial use (any pool that is not for priva te single-family use,or the use of which is subject to regulation), we warrant to the original purchaser that the equipment shall be free of ma nufacturer’s defects at the time of sale, and upon examination shall pro...
  • Page 24 2. Should a defect in any item or part covered by the warranty become evident during the warranty's term, Products will at its sole discretion repair or replace such item or part. Products reserves the right to replace defective parts with new or refurbished parts. This warranty does not include the cost of labor or transportation charges for equipment or component parts to or from Products, or the removal, reinstallation, or any such costs incurred in obtaining warranty...
  • Page 25 C. Damage due to negligence or failure to properly maintain equipment, including the maintenance of clean and tight electrical connections. D. Damage due to improper service, as well as unauthorized equipment modifications and use of non-genuine replacement parts. E. Damage due to misapplication, misuse, abuse, overuse the cell lifetime (over 10 hours per day) or failure to operate equipment as specified in the owner's manual.
  • Page 26 rights, which vary from state to state. This warranty supersedes all previous publications. Any dispute between the original purchaser and Products will be settled by binding arbitration, conducted in Mecklenburg County, NC, under the rules of the American Arbitration Association. Disclaimer: This limited warranty is the entire warranty.

  • Page 27: Troubleshooting

    TROUBLESHOOTING Situation Possible Cause Suggestion Use test pencil to check if there is electricity Check the power Change the socket connection Check the wire connection Start the BLH Check the overload without reaction, protection device no display Check the fuse If fuse blow out,replace it Check the connection of If the PCB board just be...
  • Page 28 Start the machine, it is normal that the light blink Normal because it need time to "NO FLOW" light is detect the water flow blinking Variable speed Change the flow switch pump,water flow too slow Press the "System Status" "Inspect Cell" light The machine worked button for 3 seconds to is flashing...
  • Page 29 Match the right cell type Check cell type with the program "Check Salt" light Actual Salinity is between Add salt,ideal salt level is flashing 2300-2500PPM 3500-3600ppm Cell is blocked Clean the cell Match the right cell type Check cell type with the program Actual Salinity is between Add water,ideal salt level...
  • Page 30 Check the temperature, The water temp too high water temp should above 55°F,less than or too cold 122°F PH not normal, the water in alkalinity will influence Keep PH 7.2-7.7 Low or no Chlorine the chlorine in pool Bad water quality has large quantity of Change good quality water microorganism or germ...
  • Page 31 Customer Warranty ........................................................................................................................................................................................................................................................................................................Phone: 1-888-909-0457 / Email: Support@blueworkspool.com Hours: Monday-Thursday 9:30am-4:30pm (EST), Friday 9:30am-3:30pm (EST) Closed Saturday & Sunday 31 | P a g e...
