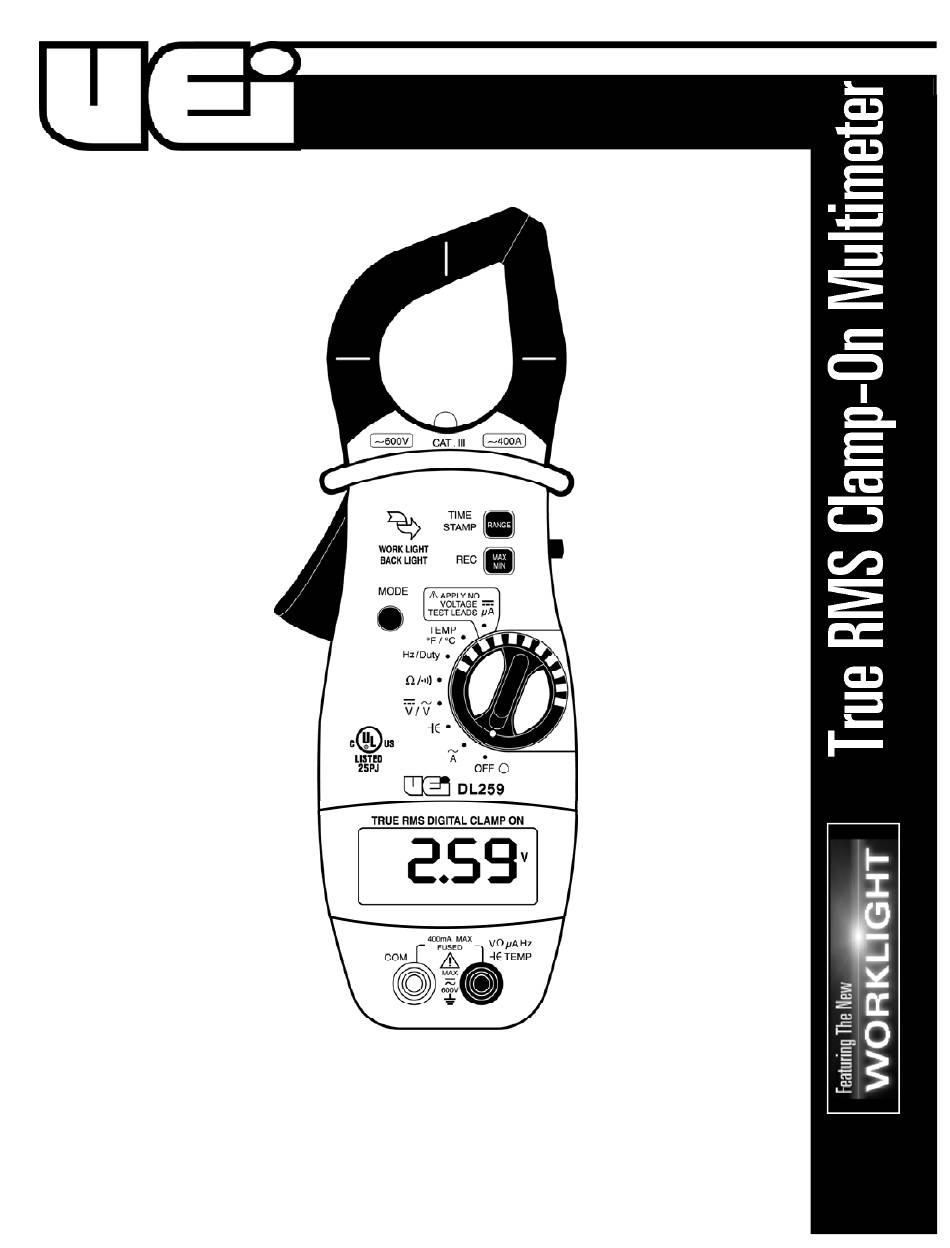

- Page 1 INSTRUCTION MANUAL DL259 1-800-547-5740 • Fax: (503) 643-6322 www.ueitest.com • email: info@ueitest.com...
- Page 2 Introduction C o n t rols and Indicators The DL259 is a hand-held, battery powered digital TRMS multimeter with clamp-on current measuring capability. Back light and work area light. Features include • True RMS • Work light and backlit display •...
- Page 3 9. Rotary Function Switch: Used to power the meter on and Indicates the meter is currently recording the maximum and off, or to select the available measurement functions: minimum values. • Measures inductive AC current using the clamp 23. MIN: Indicates the meter is displaying the minimum •...
- Page 4 Auto / Manual Range Measure AC or DC Volts In auto range the meter will select the best range for the measured value, and "AT" indicate in the lower left of the display. Press "Range" to cycle through available ranges for each function. "AT" will not be on the display when locked in a specific range.
- Page 5 Maintenance 6. Capacitance Measurement Battery and fuse replacement Range Resolution Accuracy Overload Protection 1µF 0.001µF ±1.7%+5dgts 600V 10µF 0.01µF (Remove screw) 100µF 0.1µF 1000µF 1µF ±2.5%+15dgts 10000µF 1µF ±15%+100dgts Temperature adjustment 7. Temperature Measurement Range Resolution Accuracy Overload Protection Battery – 9V NEDA 1604 or 6LR61 -40˚...
- Page 6 Any implied warranties, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited to the express warranty. UEi shall not be liable for loss of use of the instrument or other incidental or consequential damages, expenses, or economic loss, or for any claim or claims for such damage, expenses or economic loss.
