Summary of Contents for KOBE SBD370

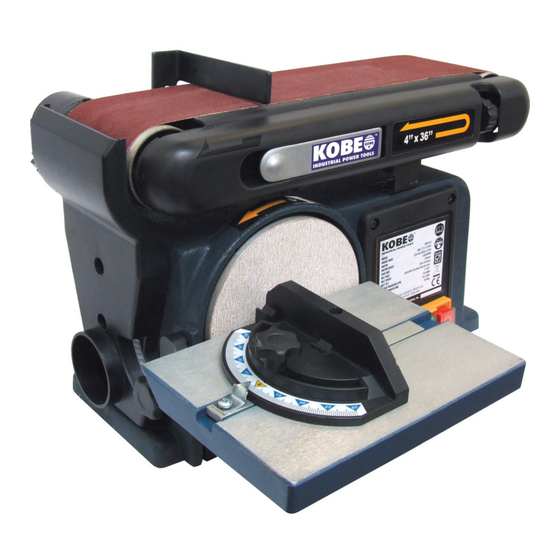

  • Page 1 COMBINATION BELT/DISC SANDER HP 370W MODEL: ORDER CODE: SBD370 KBE-271-4140K WARNING: THE SAFETY INFORMATION GIVEN INSIDE MUST BE READ AND UNDERSTOOD BY ANY PERSON USING, INSTALLING, REPAIRING OR MAINTAINING THESE PRODUCTS. OPERATOR’S MANUAL Please retain this information for future reference.
  • Page 2: Personal Protection

    KOBE INDUSTRIAL POWER TOOLS have been specifically designed to help you work SAFELY and EFFICIENTLY. Your care and good judgement are the best protection against injury, but always ensure that the appropriate safety equipment is worn.
  • Page 3: Electrical Information

    KOBE SPECIFICATIONS I N D U S T R I A L POWER TOOLS MODEL NUMBER: ......................SBD370 MOTOR (Induction): ................... 230V AC, 50Hz, 370W MOTOR SPEED (No load): ....................2850RPM DISC SIZE (Diameter): ...................... 150mm DISC TYPE: ................. PSA type (Pressure sensitive adhesive) BELT SIZE: .......................100 x 914mm...
  • Page 4 KOBE IDENTIFICATION I N D U S T R I A L POWER TOOLS COMPONENTS Sanding Drive belt stop cover Belt tracking adjustment knob Drive drum Belt sanding area Belt tensioning lever Idler drum Dust port (not visible) Fig.4c Table adjuster (not visible) Fig.4b...
  • Page 5 KOBE UNPACKING/ASSEMBLY I N D U S T R I A L POWER TOOLS UNPACKING 1. Sander 2. Work table 3. Work table support arm 4. M6 x 12 Hexagon bolts & washers (3) 5. Work table fixing screw 6. Sanding stop 7.
  • Page 6: Dust Extraction

    KOBE OPERATING INSTRUCTIONS I N D U S T R I A L POWER TOOLS WARNING Some dust created by power sanding contains chemicals that may cause cancer, birth defects or other harm. Some examples of these chemicals are: lead from lead- based paint, and arsenic and chromium from chemically treated timber.
  • Page 7 KOBE OPERATING INSTRUCTIONS I N D U S T R I A L POWER TOOLS BELT SANDING – HORIZONTAL Fig. 21 When sanding flat, broad surfaces on the belt sander, hold the workpiece firmly but lightly onto the surface of the belt and against the sanding stop, Fig.22 keeping fingers away...
  • Page 8: Changing Consumables

    KOBE CHANGING CONSUMABLES I N D U S T R I A L POWER TOOLS WARNING Always ensure the sander is unplugged before attempting assembly, installation or changing parts or accessories. SANDING BELT The belt will wear at different rates depending on the type of material being sanded and the pressure being applied to the workpiece.
  • Page 9: Sanding Disc

    KOBE CHANGING CONSUMABLES I N D U S T R I A L POWER TOOLS SANDING DISC Note: Hook and loop sanding discs cannot be used with this machine. Follow steps 1 to 8, Figs.10-16 1. Remove the mitre gauge, work table & disc guard.
  • Page 10: Troubleshooting

    TROUBLESHOOTING Repairs must be performed in a dirt-free environment by a qualified person who is familiar with this type of equipment. FAULT POSSIBLE CAUSE SOLUTION Sanding grains easily rub off 1. Incorrect storage. 1. Store away from extreme heat/dry temperature. belt/disc.
  • Page 11: Service And Repair

    SERVICE & REPAIR A comprehensive repair and service facility is available through your local Kobe agent for all your electric tools. This sander requires little maintenance other than clean or vacuum dust any from around the motor housing, extraction port and other sander parts.
  • Page 12: Declaration Of Conformity

    Position: HSQE Manager ENGLAND, LE18 2FS QUALITY GUARANTEE & WARRANTY KOBE INDUSTRIAL POWER TOOLS carry a one year manufacturer’s warranty. KOBE INDUSTRIAL POWER TOOLS are designed & manufactured to the highest standards & specifications Assuring the quality and performance required by all sectors of industry.
