Installation Guide: RE508X & RE508XC Universal Hardwire Translator™

Features

• Selectable wireless panel compatibility
• Rechargeable backup battery
• Automatic zone polarity and end of line detection
• Battery backed 12VDC output for powered zones
• Cover tamper
• Certified to UL1023, ULC1023, UL1610, and ULC S304

Quick Setup

1
Mount And Wire
A Select a mounting position and location.
B Wire the zones.
C Connect 12VDC output to powered zones, if any.
D Connect the power supply to the translator.
• Translator has a 90 second lockout after power up.
2

TRANSLATOR CONFIGURATION

A Select the brand of panel that the translator must
talk to using the "PANEL SELECT" knob.
B Configure Zones.
• No zone configuration is necessary for installations with normally
closed zones that don't require tamper detection.
• Installations with other zone types: Refer to the Advanced Setup, step 2.
3
Panel Enrollment
A Enroll Translator into Panel.
• Trip the translator tamper to enroll the translator into the panel (For Honeywell® and 2GIG® panels select loop 1).
-or-
• Enter translator ID into panel. The translator's base ID is printed on the bar code label and ends with a 0.
B Enroll Zones into panel (not required for Cryptix® (Connect+
• With the cover open, trip each zone to enroll into to the panel (For Honeywell® and 2GIG® panels select loop 1).
-or-
• Enter ID into panel. The zone ID is the translator's base ID with the last digit replaced with zone number 1-8.
C Finish setup of each zone at the panel.
4 Finish
A Close the cover. Test and verify proper operation of the sensors at the panel.
B Cut the lock wire to lock the translator (For more information on locking, refer to Advanced Setup, step 4).
C Secure cover with screw.
(For full zone enrollment instructions, refer to Advanced Setup, step 3)

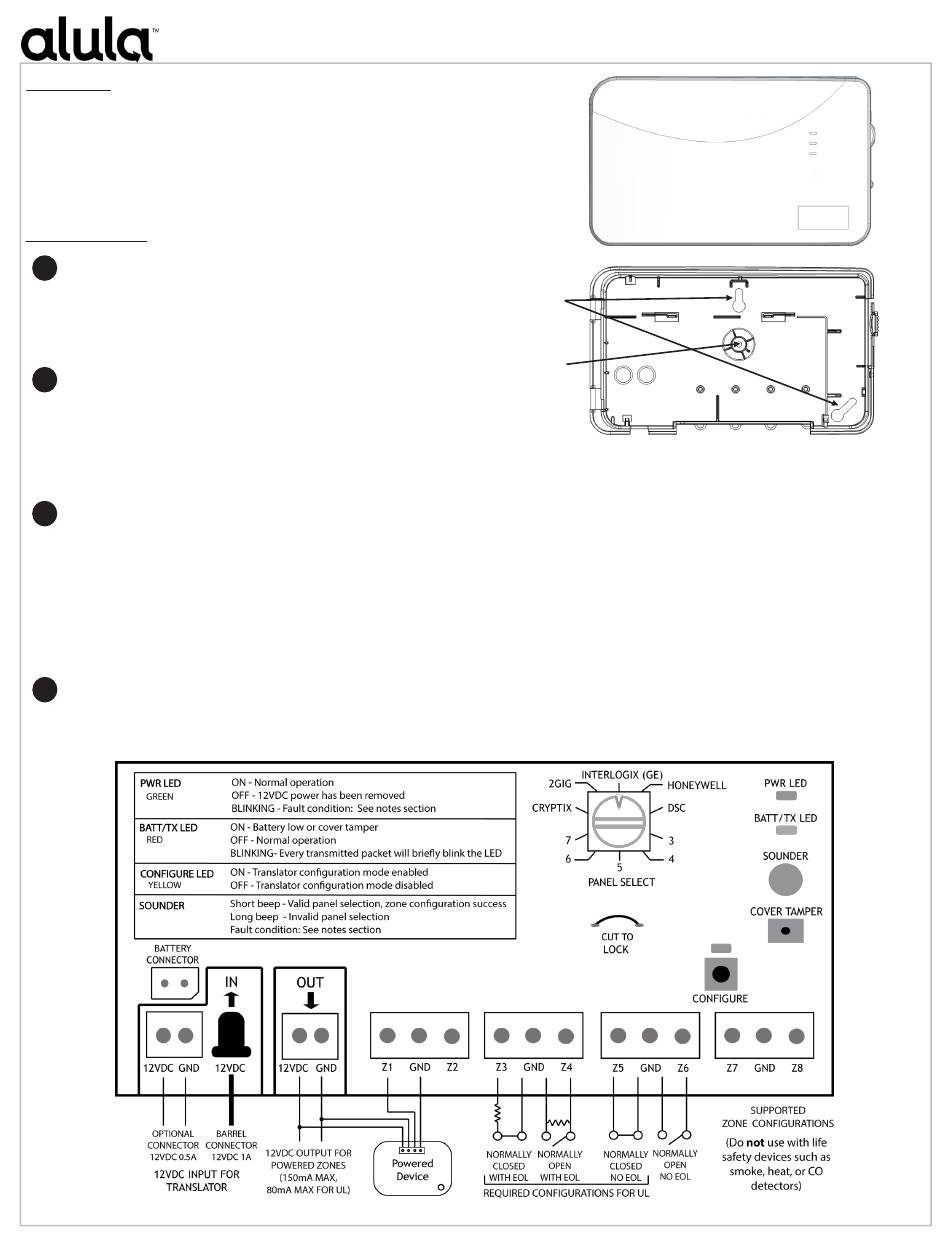

WIRING DIAGRAM
Wall mounting
screw locations
Wall Tamper
(Do not overtighten
mounting screw)
(Mounting hardware not included. Use two
) Installations)
TM
#4 or # 6 screws for mounting )
