Summary of Contents for Helm TMG-1200

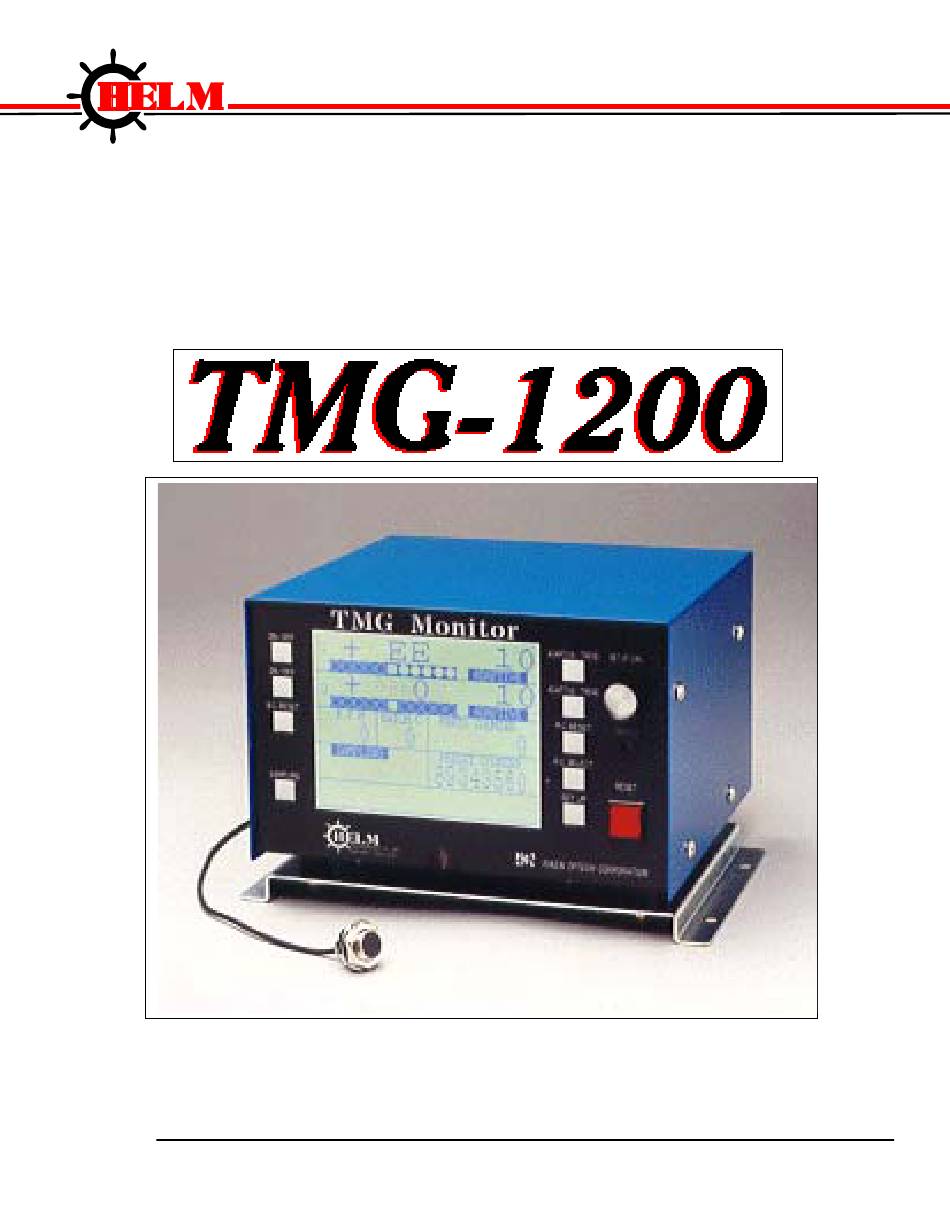

- Page 1 Helm Instrument Company, Inc. 361 West Dussel Drive Maumee, Ohio 43537 USA 419/ 893-4356 Fax: 419/ 893-1371 www.helminstrument.com Non Contact Fault Detector For Cold Heading Machines Force Measurement and Control Solutions...
-
Page 2: Table Of Contents
Sensor Adjustment..................19 Troubleshooting Guide................. 20 We would like to thank you for purchasing the TMG-1200 non-contact monitor. This guide consists of four parts: Introduction, Basic Operation, Applied Operation and Maintenance. Prior to operation, please read the TMG-1200 guide thoroughly. -
Page 3: Introduction
The multi mode is a multi-slide or progressive header (Two sensors are necessary only in the case of using the multi mode.) The TMG-1200 can be setup for operation in any of these modes. Refer to the contents of Section “System Setting”. -
Page 4: Description Of Component Parts
(mean value ) display. 2. Set point display - Displays the monitoring range between the upper and lower limits. When the display shows a deviation exceeding the limit values, the TMG-1200 displays a fault condition. 3. Bar display – Displays the deviation from the set point. The left side of the bar display is the “-“... - Page 5 Used to change the set point or to change settings in the system mode. 19. Contrast control Used to adjust the contrast of the Liquid Crystal Display (LCD) screen. The contrast control is factory adjusted. Readjust it when the screen is difficult to see. Page 4 TMG-1200 Instruction Manual...
- Page 6 In normal operation, pushing this button causes the red lamp to flash and turns off fault detection. Pushing it again stops flashing of the red lamp and cancels the bypass state. Page 5 TMG-1200 Instruction Manual...
-
Page 7: Normal Operation
The procedures are described below. 1. At setup for material supply, etc., press the Reset button to cause the TMG-1200 to go to the by-pass state. Push the reset button again cancels the bypass state. -
Page 8: Changing Preset Range
Set table range: Absolute Value: 0 to 500 µm (in units of 10 µm.) Mean Value: 0 to 99 µm (in units of 1 µm.) • Setting the absolute value to "0" turns off absolute value detection. Page 7 TMG-1200 Instruction Manual... -
Page 9: Operation Of Counter
4. Resetting of batch counter When you wish to reset the batch counter to “0”, push the batch counter reset button. In this case, the fault output cannot be cancelled even when the fault detection signal is being output. Page 8 TMG-1200 Instruction Manual... -
Page 10: Specifications
–10 to 50°C Retention temperature range –20 to 75°C Humidity 10-85% RH max. (Wet bulb temperature shall be less than 29°C for prevention of dew condensation.) • Accessories Sensor 2 (Sanksu GS-14M) User’s guide Page 9 TMG-1200 Instruction Manual... -
Page 11: Mean Value And Absolute Value
Slow changes over time NOT canceled. • Fault detection range set wider (±20 microns typ.) to prevent nuisance alarms. • Changes over time detected (loss of lubrication, machine heat up / cool down, changes in material hardness, etc.) Page 10 TMG-1200 Instruction Manual... - Page 12 11 and subsequent data are compared each with the mean value of 10 previous data at all times. Adaptive Mode (Stroke-to-Stroke "Rolling Average") Adaptive Mode (Stroke-to-Stroke "Rolling Average") Page 11 TMG-1200 Instruction Manual...
- Page 13 In addition, the detection range can be made smaller so this detection mode is suitable for minute fault detection. Page 12 TMG-1200 Instruction Manual...
-
Page 14: Details Of Detection
• Slowdown detection The TMG-1200 has a slowdown detection function. When the rpm of the machine has decreased due to machine trouble, this function stops the machine. The rpm when the machine was started in the continuous mode is kept in memory. When the rpm becomes lower than that at the start by more than the set value, a fault signal is produced and the screen display shows that the machine has stopped due to slowdown. -
Page 15: Details Of System Setting
Details of System Setting The operation of the TMG-1200 can be varied by system setting to enable the device to be used in various ways. Being preset, system settings items do not need to be changed. How to change them is described below. - Page 16 Set the output time (one shot) of the counter output relay which provides an output signal when the preset counter value agrees with the preset set point. The set table time is 0.5-25 seconds in units of 0.1 second. Initial value: 1 second Page 15 TMG-1200 Instruction Manual...
-
Page 17: Connection Of Terminal Block
B1 B2 Counter Counter Fault Output A Fault Output B Earth 100-240 VAC Output A Output B Kind Contact Power OFF Power ON Fault output being Counter producing Produced coincidence ouptut Fault output Counter output Page 16 TMG-1200 Instruction Manual... - Page 18 Output B Connecting a stop circuit for a conveyor *Note: If the conveyor has an ON/OFF switch, make connections at that point. Also make sure to size the relay correctly to handle the current passing through. Page 17 TMG-1200 Instruction Manual...
-
Page 19: Sensor Installation
Sensor Installation Sensor Location HEADING SLIDE-TOP VIEW FRONT DEAD CETER POSITION MACHINE FRAME HEADING SLIDE (@ FRONT DEAD CENTER POSITION) HEADING SLIDE-FRONT VIEW TARGET SENSING AREA (TYPICAL) HEADING SLIDE MACHINE FRAME Page 18 TMG-1200 Instruction Manual... -
Page 20: Sensor Adjustment
When the machine is in the stop state, the bar display measures and shows the distance of clearance at all times. When the machine is operating, it measures and shows the distance of the smallest clearance within one stroke. Page 19 TMG-1200 Instruction Manual... -
Page 21: Troubleshooting Guide
It disappears upon completion of reference value sampling. However, when machine stops, “sampling” is indicated and the device gets in the wait state for sampling. Page 20 TMG-1200 Instruction Manual... - Page 22 Page 21 TMG-1200 Instruction Manual...
