Summary of Contents for Soto SOTO-Y6

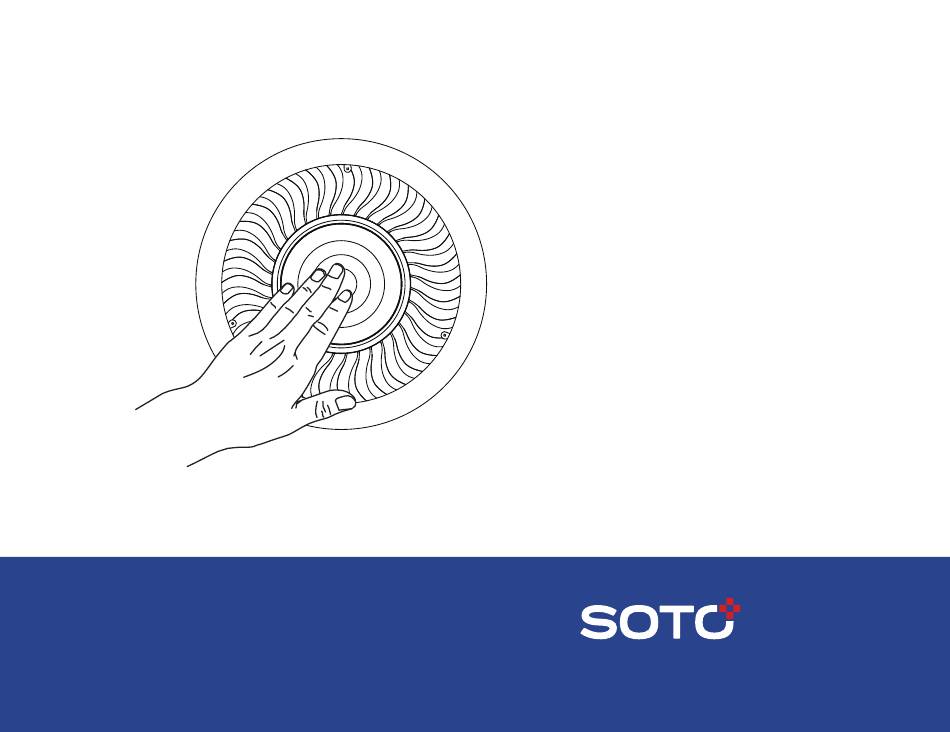

- Page 1 SOTO-Y6 AIR PURIFIER Operation Manual Before operating the system, please read this manual thoroughly, and retain it for future reference. Top-Grade Air Purifier...
- Page 2 This is Soto If you have the opportunity to experience SOTO air purifiers, please remember that they are designed with our dreams to meet your expectations...
-
Page 3: Table Of Contents
Contents Consumer Limited Warranty Safety Precautions How it Works Features and Specifications Part Name 09-10 Installation 11-12 Operation 13-14 Care and Maintenance Troubleshooting... -
Page 4: Consumer Limited Warranty
SOTO shall, at its option, repair or replace the product as specified herein. SOTO will repair or replace, free of charge, to the original purchaser, any part that is found to be defective in material or workmanship within one (1) year of the date of purchase. This limited warranty does not cover there placement of expendable or consumable parts such as filters or UV lamps, and other parts subject to normal wear unless they are defective in material or workmanship. -
Page 5: Safety Precautions
Safety Precautions To reduce the risk of electrical shock, fire or injury to person(s) read the following: Running Environment Cautions Use only a 220-240 volt outlet with grounding wire receptacle. Do not use the unit in an enclosed space where oxygen, flammable, explosive or toxic vapors are given off by oil base paint, paint thinner, some moth proofing substances. -
Page 6: How It Works
How it Works When the DC fan motor is running, the indoor air will be drawn through the bottom of the unit. The air will then pass through the HEPA filter, the Activated carbon filter and the UV-C+ Photo catalytic Nano-TiO2 chamber. The purified air is then released through the outlet on the top of the unit. -
Page 7: Features And Specifications
3. The unit is also equipped with a safety interlock switch that will turn the power off if the bottom plate is opened. 4. The indicator lights tell you when to replace the HEPA filter, Activated carbon filter or the UV lamp. Model SOTO-Y6 Power Requirement 220-240V~, 50/60Hz... -
Page 8: Part Name
Part Name 01- Unit body 09- Particle laser sensor 02- Unit housing 10- HEPA filter 03- Air outlet 11- Activated carbon filter 04- Fan motor 12- UV lamp 05- Fan blade 13- Photo catalytic filter 06- Ion generator 14- Unit lock 07- LED display 15- UV lamp set circuit board... -
Page 9: Installation
Installation1 1. Power supply condition: Use only a 220-volt outlet with grounding wire receptacle. 2. Environmental conditions：Temperature：0℃~40℃; Relative humidity：<75%. 3. The unit should be installed in an indoor area with less personnel activities, and the unit should be set up against the wall. - Page 10 Installation2 ATTENTION: For optimal purification, make sure there is a gap between air inlet and anything that may block the airflow nearby.
-
Page 11: Operation
Operation1 Plug the power cord in and you will hear a “Beep”. The small, inner circle will turn white - this indicates the air purifier is in standby mode. Use your hand to wave over the sensor, this waving motion turns the unit on & off, and can also adjust the fan speed. - Page 12 Operation2 Button Operation 1 POWER Button - When the power cord in, the display panel shows the indoor PM2.5 concentration (μg/m³), temperature, humidity and TVOC pollution level. Press the button, turns the unit On and Off. - Hold the button for 3 seconds to reset the filters indicator light. PM2.5 2 TIMER Button °C...
-
Page 13: Care And Maintenance
Care and Maintenance1 To maintain optimum performance of this air purifier, the HEPA filter, the Activated carbon filter and the UV-C+ bulb need to be replaced when the indicator lights are flashing. Warning When maintenance on the unit, be sure to unplug the power cord, and never handle the plug with wet hands. If so, electrical shock and bodily injury may occur as a result. - Page 14 Care and Maintenance2 Replacing the Activated carbon filter When the second circle on the sensor plate flashes, the Activated carbon filter needs to be replaced. 1. Stop the operation and unplug the unit. 2. Open the bottom plate, disconnect the power cord from Germicidal UV lamp, take off the unit lock. 3.
-
Page 15: Troubleshooting
Troubleshooting Service problems that appear to be major can often be solved easily. You can be your own troubleshooter by reviewing the following guide. All other servicing should be done by a SOTO authorized service center. Case What to check... - Page 16 SOTO Air Purification Technology (Langfang) Co., Ltd. Add: Certification Industrial Park, Dachang High and New Technology Development Zone, Langfang City, Hebei Province, China Tel: 400-626-8883 Email: customerservice@soto.com.cn Web: www.sotoairpurifier.com...
