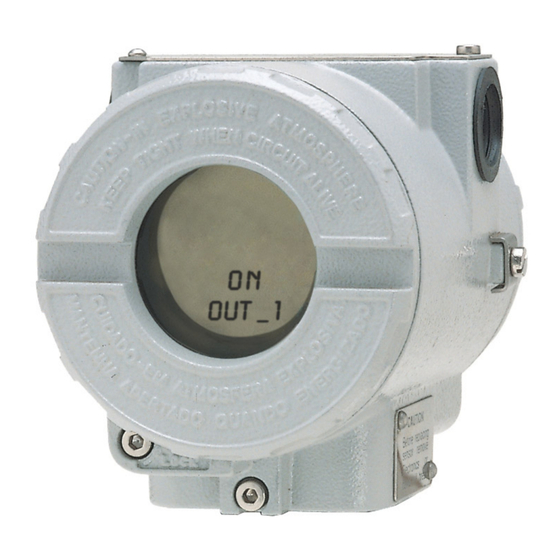

  • Page 3 Introduction INTRODUCTION The FRI303 is a Profibus-PA device that has two built-in relays making integration of Profibus-PA to conventional devices such as solenoids, on/off valves, electrical actuators, motors, pumps, starters, etc. The FRI303 also has two dry contact inputs. The FRI303 Profibus-PA Remote I/O can be located in the field, mounted close to the conventional devices without the need to run the conventional wiring to the control room.
  • Page 4 Smar provides specific training to instruct and qualify such professionals. However, each country must comply with the local safety procedures,...

  • Page 5: Table Of Contents

    SECTION 3 - CONFIGURATION ......................3.1 CONNECTING PHYSICAL SIGNALS TO DI (DIGITAL INPUT) BLOCK AND DO (DIGITAL OUTPUT) BLOCK ..3.1 APPLICATION EXAMPLES ............................3.2 FRI303 CYCLICAL CONFIGURATION ........................3.4 CYCLICAL DIAGNOSIS .............................. 3.6 SECTION 4 - MAINTENANCE PROCEDURES ..................4.1 GENERAL..................................
  • Page 6 - terminals connections; Are the outputs ok? - switching current; - voltage for outputs; - output fuse; - if the output type (NO, NC) is according to the ordering code. *More information in Section 1 of FRI303. Operation, Maintenance and Instructions Manual.

  • Page 7: Section 1 - Installation

    Installation close to lines and vessels subjected to high temperatures also should be avoided. The use of sunshades or heat shields to protect the FRI303 from external heat sources should be considered, when necessary. Humidity can be fatal to electronic circuits. A humidity proof coating protects the electronic circuit, but frequent exposures to humidity may affect the protection provided.

  • Page 8: Electric Wiring

    FRI303 – Operation and Maintenance Instruction Manual Electric Wiring Access the wiring block by removing the Electrical Connection Cover. This cover can be locked closed by the cover locking screw (See Figure 1.2 - Cover Locking). To release the cover, rotate the locking screw clockwise.
  • Page 9 Installation FRI303 PROFIBUS - PA INTERFACE 1 INTERFACE 2 + 24 Fuse Clampimp Indutive Doide Load + 24 Fuse Clampimp Inductive Doide Load Figure 1.4 - Example of Output and Input Connections...
  • Page 10 FRI303 – Operation and Maintenance Instruction Manual The FRI303 is a bus-powered device. The FRI303 uses the 31.25 kbit/s voltage mode option for the physical signaling. Various types of Profibus-PA devices may be connected on the same bus being bus-powered or non-bus- powered.
  • Page 11 Figure 1.7 – Protection Diode in Parallel to DC Load Inductive AC Load: In FRI303 it is recommended to insert snubber circuit in parallel to the load and close to them. This will avoid the noise coupling in other cables that are in the same conduit.
  • Page 12 FRI303 – Operation and Maintenance Instruction Manual The RC circuit (AC) capacitor should have a tension 2-3 times greater than the power supply voltage. Recommended values: LOAD INDUCTANCE CAPACITOR 25-70 mH 0.50 µF 70-180 mH 0.250 µF 180 mH - 10H 0.10 µF...

  • Page 13: Topology And Network Configuration

    The unused outlet connection should be plugged and sealed accordingly. Explosion proof, non incendive and intrinsic safety Factory Mutual certification are standard for FRI303. Should other certifications be necessary, refer to the certification or specific standard for installation limitations.
  • Page 14 FRI303 – Operation and Maintenance Instruction Manual Figure 1.11 - Bus Topology Figure 1.12 - Tree Topology...

  • Page 15: General System

    Installation General System According to the figure below, a general network topology can be seen where the FRI303 is integrated into a simple Profibus-PA network. Figure 1.13 – FRI303 and a general Profibus-PA System...
  • Page 16 FRI303 – Operation and Maintenance Instruction Manual 1.10...

  • Page 17: Section 2 - Operation

    Section 2 OPERATION The FRI303 has 2 isolated built-in relay outputs and two dry contact inputs. It is therefore ideal for interfacing existing discrete devices to a Profibus-PA system. Output function blocks include standard Profibus-PA safety mechanisms in case of failures. Outputs are isolated from each other.
  • Page 18 FUSE P.S. P.S. = Power Supply Figure 2.1 – FRI303 Block Diagram NOTE When the FRI303 has a N.O. relay and a N.C. relay, the N.O. relay is connected to terminals 7-8 and the N.C. relay in the terminals 9-10.

  • Page 19: Connecting Physical Signals To Di (Digital Input) Block And Do (Digital Output) Block

    CONFIGURATION One of the many advantages of Profibus-PA is that device configuration is independent of the configuration tool. The FRI303 may be configured by a third party host computer using the EDDL (Device Description) or FDT/DTM tools. The FRI303 has 02 DIs (Discrete Input) and 02 DOs (Discrete Output) blocks.

  • Page 20: Application Examples

    FRI303 – Operation and Maintenance, Instruction Manual Figure 3.2 - FRI303 and DO Block connections Application Examples Application 1: the outputs can be manipulated via Profibus-PA network. Figure 3.3 - Aplicação 1- FRI303 Application 2: generic application with sensors and actuation.
  • Page 21 Configuration Figure 3.4 - FRI303 – Application 2 Application 3: Level Control (The level limits will trigger the actuation in motor, pump or a valve on / off). Figure 3.5 – FRI303 – Application 3...

  • Page 22: Fri303 Cyclical Configuration

    Smar devices can be purchased via internet in www.smar.com. See below a typical example with the necessary steps to the integration of a FRI303 device in a PA system and that can be extended for any device: Copy the GSD file of the device for the search directory of the PROFIBUS configurator, usually named GSD.
  • Page 23 The watchdog condition can also be activate, where after the communication loss detection for the slave device with the master, the equipment can change to a fail-safe condition. The FRI303 also has the Empty module for application where is not necessary all function blocks. There is an order for cyclic communication as follow: DO_1, DO_2, DI_, DI_2.

  • Page 24: Cyclical Diagnosis

    FRI303 – Operation and Maintenance, Instruction Manual Cyclical Diagnosis Via cyclic communication is possible to verify diagnostics from the FRI303 using the Profibus Master Class 1 or even via acyclic communication via Master Class 2. The Profibus-PA devices provide up to 4 bytes standard diagnoses via Physcial Block (See figure 3.6.
  • Page 25 Configuration Unit_Diag_Bit(33) = "Not used 33" Unit_Diag_Bit(34) = "Configuration invalid" Unit_Diag_Bit(35) = "Restart" Unit_Diag_Bit(36) = "Coldstart" Unit_Diag_Bit(37) = "Maintenance required" Unit_Diag_Bit(38) = "Not used 38" Unit_Diag_Bit(39) = "Ident_Number violation" ;Byte 03 Unit_Diag_Bit(40) = "Not used 40" Unit_Diag_Bit(41) = "Not used 41" Unit_Diag_Bit(42) = "Not used 42"...
  • Page 26 Specific" to "Manufacturer Specific" or vice-versa, you must wait 5 seconds while it is saved and the turn off the FRI303 and then the identifier is updated in the level of communication. If the equipment is in "Profile Specific" and using the GSD file Identifier Number equals 0x0dcb, the acyclic communication will work well with tools based on EDDL, FDT/DTM, but no cyclic communication with the Profibus-DP master will get success.

  • Page 27: Section 4 - Maintenance Procedures

    Check the condition Of the output Fuses by removing the main electronic board. Disassembly Procedure See Figure 4.1 – FRI303 Exploded View. Make sure to disconnect the power supply before disassembling the converter. To remove the circuit boards (3 and 4) and display (3), first loosen the cover locking (5) on the side not marked “Field Terminals”, then unscrew the cover (1).

  • Page 28: Assembly Procedure

    • Fit the cover (1 and 10) and lock it using the locking screws (5). Firmware Update Procedure For firmware update of the FRI303 equipment see FDI302-1 manual, visit website Smar: www.smar.com Accessories Main and I/O boards can be changed independently.

  • Page 29: Exploded View And Spare Parts List

    LOCAL ADJUSTMENT (Z AND S) COVER 204-0114 U 3/16” RIVET 400-0834 COVER LOCK SCREW 204-0120 ELECTRONIC BOARD GLL1471 400-1438 ELECTRONIC BOARDS: GLL1470 GLL1404 400-1436 (DISPLAY+ASSEMBLY SET) COVER ORINGS 204-0122 COVER WITH WINDOW (400 LINE) 400-0822 ITEM DESCRIPTION CODE Figure 4.1 – FRI303 Exploded View...

  • Page 30: Detailed Code For Ordering Spare Parts

    FRI303 – Operation and Maintenance, Instruction Manual Detailed Code for Ordering Spare Parts CODE DESCRIPTION 400-1315 HOUSING Option Product FRI30X Option Communication Protocol PROFIBUS PA Option Electrical Connection ½ NPT M20 X 1,5 PG13,5 400-1315 TYPICAL MODEL *Select the desired option Special Options COD.

  • Page 31: Section 5 - Technical Specifications

    Without display and mounting bracket: 0.80 kg. Add for Weight digital display: 0.13 kg. Add for mounting bracket: 0.60 kg. FRI303 Output Relays Description - Outputs The outputs are designed with Solid State relays that are able to drive incandescence lamps, solenoids and other DC and AC loads.

  • Page 32: Technical Specifications For Normally Opened Relays

    FRI303 - Operation and Maintenance Instruction Manual On Resistance AC mode 18 Ω. On Resistance DC mode 4.5 Ω. Min: 0.1 GΩ. Off State Resistance Typ: 1.4 GΩ. Off State Leakage Typ: 1.0 µA. Turn On Time 5 ms. Turn Off Time 1 ms.

  • Page 33: Ordering Code

    Technical Specifications Ordering Code MODEL FRI303 PROFIBUS-PA REMOTE I/O COD. Local Indicator Without Indicator With Digital Indicator COD. Relay Output Conditions Both Normally Open (N.O.) Both Normally Closed (N.C.) One N.O. and other N.C. COD. Mounting Bracket for 2" Pipe Mounting...
  • Page 34 FRI303 - Operation and Maintenance Instruction Manual...

  • Page 35: Appendix A - Srf - Service Request Form

    Company: _____________________________________________________________________________________________________ Contact: _______________________________________________________________________________________________________ Title: __________________________________________________________________________________________________________ Section: _______________________________________________________________________________________________________ Phone: _________ _________________________ _________ _________________________ Extension: ___________________ E-mail: ________________________________________________________________________ Date: ______/ ______/ __________ For warranty or non-warranty repair, please contact your representative. Further information about address and contacts can be found on https://www.smar.com/en/support.
  • Page 36 FRI303- Operation and Maintenance Instruction Manual Returning Materials If necessary to return the FRI303 to SMAR, simply contact our office, informing the defective instrument serial number, and return it to our factory. In order to speed up analysis and solution of the problem, the defective item should be returned with a description of the failure observed, with as much details as possible.
