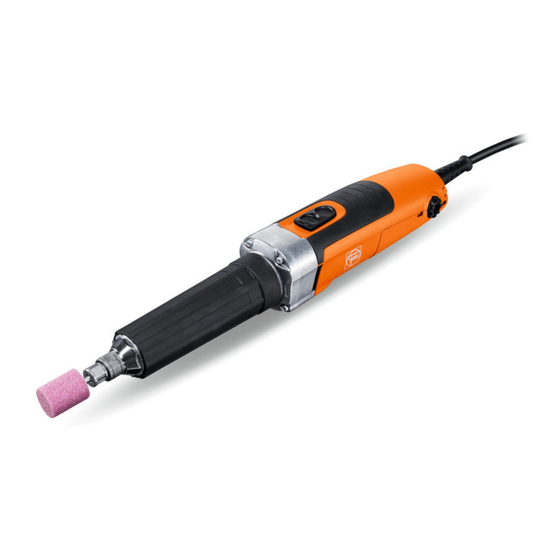

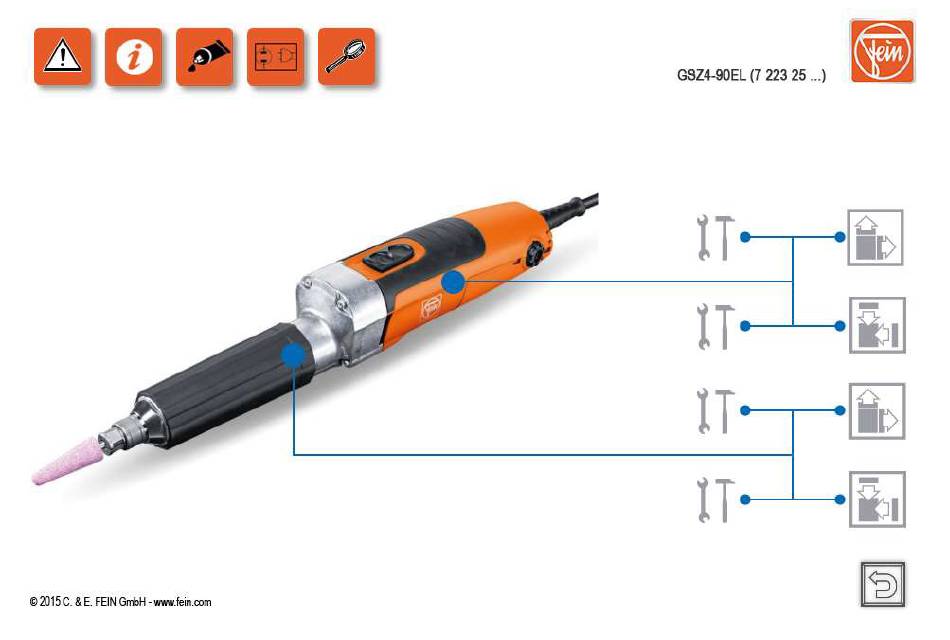

  • Page 2: Technical Data

    All the technical data can be found in the operating instructions for the model. Tests Up-to-date test data and test instructions after repair can be found on the FEIN Extranet (Customer Service → Repair Guides). Lubricants / Auxiliary substances The lubricants or auxiliary substances and their container sizes available from FEIN can be found on the FEIN Extranet (Customer Service →...

  • Page 3: Notes And Requirements

    Outside Germany, the regulations applicable in the relevant country must be observed. C-SC_CSSM Version 1.0 2015-05-04 All rights reserved by FEIN, especially in case of property rights applications. Page 1 of 1 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 4 Grease 0 40 101 0100 4 15 g Housing C-SC_CSSM Version 1.0 2015-05-04 All rights reserved by FEIN, especially in case of property rights applications. Page 1 of 1 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 5 GSZ 280EL; GSZ 90EL Troubleshooting Not yet available. C-SC_CSSM Version 1.0 2015-05-04 All rights reserved by FEIN, especially in case of property rights applications. Page 1 of 1 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 6 2. Remove the cover (2). - Torx T15 3. Lift up the tension spring from the carbon brush (3) [on both sides]. - Assembly aid All rights reserved by FEIN, especially in case of property rights applications. C-SC_CSSM Version 1.0 2015-05-21...
  • Page 7 1. Unscrew the four screws (1). Tools: 2. Pull the collar bearing (2) with intermediate gearbox out of the housing. - Torx T15 All rights reserved by FEIN, especially in case of property rights applications. C-SC_CSSM Version 1.0 2015-05-21 Page 2 of 5...
  • Page 8 6. Pull the cables (6) off the connector [on both sides]. 7. Unscrew the screw (7) on the brush holder [on both sides]. 8. Remove the brush holder (8) and the connector [on both sides]. All rights reserved by FEIN, especially in case of property rights applications. C-SC_CSSM Version 1.0...
  • Page 9 2. Unscrew the two screws (2). - Torx T15 3. Remove the stator (3) from the housing. - Plastic hammer All rights reserved by FEIN, especially in case of property rights applications. C-SC_CSSM Version 1.0 2015-05-21 Page 4 of 5...
  • Page 10 Removing the slide switch 1. Remove the contact spring (1). 2. Remove the slide switch (2). 3. Remove the control rod (3). All rights reserved by FEIN, especially in case of property rights applications. C-SC_CSSM Version 1.0 2015-05-21 Page 5 of 5...
  • Page 11  The sealing ring is destroyed during removal and must be replaced. C-SC_CSSM Version 1.0 2015-05-21 All rights reserved by FEIN, especially in case of property rights applications. Page 1 of 6 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 12  The sealing ring is destroyed during removal and must be replaced. C-SC_CSSM Version 1.0 2015-05-21 All rights reserved by FEIN, especially in case of property rights applications. Page 2 of 6 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 13 - Drawing-off socket cap - Chuck cone 19 mm C-SC_CSSM Version 1.0 2015-05-21 All rights reserved by FEIN, especially in case of property rights applications. Page 3 of 6 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 14 6. Press the shaft (6) out of the collar bearing. - Arbor press - Punch 5 mm C-SC_CSSM Version 1.0 2015-05-21 All rights reserved by FEIN, especially in case of property rights applications. Page 4 of 6 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 15 2. Remove the disc (2). - Inner puller - Slide hammer C-SC_CSSM Version 1.0 2015-05-21 All rights reserved by FEIN, especially in case of property rights applications. Page 5 of 6 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 16 26 mm outer diameter 5. Remove the disc (5). - Circlip pliers C-SC_CSSM Version 1.0 2015-05-21 All rights reserved by FEIN, especially in case of property rights applications. Page 6 of 6 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 17 5. Press the grooved ball bearing (4) onto the shaft. - Circlip pliers 6. Fit the circlip (5). C-SC_CSSM Version 1.0 2015-05-21 All rights reserved by FEIN, especially in case of property rights applications. Page 1 of 7 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 18 - Sleeve 9 mm inner diameter 21 mm outer diameter C-SC_CSSM Version 1.0 2015-05-21 All rights reserved by FEIN, especially in case of property rights applications. Page 2 of 7 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 19 5. Fill the collar bearing with 15 g of grease. - Open-ended spanner 30 mm C-SC_CSSM Version 1.0 2015-05-21 All rights reserved by FEIN, especially in case of property rights applications. Page 3 of 7 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 20 - Sleeve 8 mm inner diameter 19 mm outer diameter C-SC_CSSM Version 1.0 2015-05-21 All rights reserved by FEIN, especially in case of property rights applications. Page 4 of 7 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 21 55 mm inner diameter 65 mm outer diameter - Circlip pliers C-SC_CSSM Version 1.0 2015-05-21 All rights reserved by FEIN, especially in case of property rights applications. Page 5 of 7 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 22 - Sleeve 8 mm inner diameter 13 mm outer diameter C-SC_CSSM Version 1.0 2015-05-21 All rights reserved by FEIN, especially in case of property rights applications. Page 6 of 7 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 23 1. Fit the collar bearing on the intermediate gearbox. C-SC_CSSM Version 1.0 2015-05-21 All rights reserved by FEIN, especially in case of property rights applications. Page 7 of 7 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 24 2. Clip the slide switch (2) into the control rod. 3. Insert the contact spring (3). C-SC_CSSM Version 1.0 2015-05-21 All rights reserved by FEIN, especially in case of property rights applications. Page 1 of 7 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 25 3. Insert the air guide ring (4) in the correct position. C-SC_CSSM Version 1.0 2015-05-21 All rights reserved by FEIN, especially in case of property rights applications. Page 2 of 7 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 26 2. Route the cable (2). 3. Route the cable (3). C-SC_CSSM Version 1.0 2015-05-21 All rights reserved by FEIN, especially in case of property rights applications. Page 3 of 7 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 27 4. Connect the cables with chokes to the connectors as shown in the connection diagram. 5. Route the cables with chokes. C-SC_CSSM Version 1.0 2015-05-21 All rights reserved by FEIN, especially in case of property rights applications. Page 4 of 7 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 28 +0.2 6. Screw in the screw (7) [1.5 Nm]. C-SC_CSSM Version 1.0 2015-05-21 All rights reserved by FEIN, especially in case of property rights applications. Page 5 of 7 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 29 2. Screw in the four screws (2) [1.8 Nm]. - Torx T15 C-SC_CSSM Version 1.0 2015-05-21 All rights reserved by FEIN, especially in case of property rights applications. Page 6 of 7 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 30 6. Screw in the screw [35x20] (4) [1.5 Nm]. C-SC_CSSM Version 1.0 2015-05-21 All rights reserved by FEIN, especially in case of property rights applications. Page 7 of 7 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 31 GSZ4-280EL; GSZ4-90EL Connection diagram...
