BULB REPLACEMENT

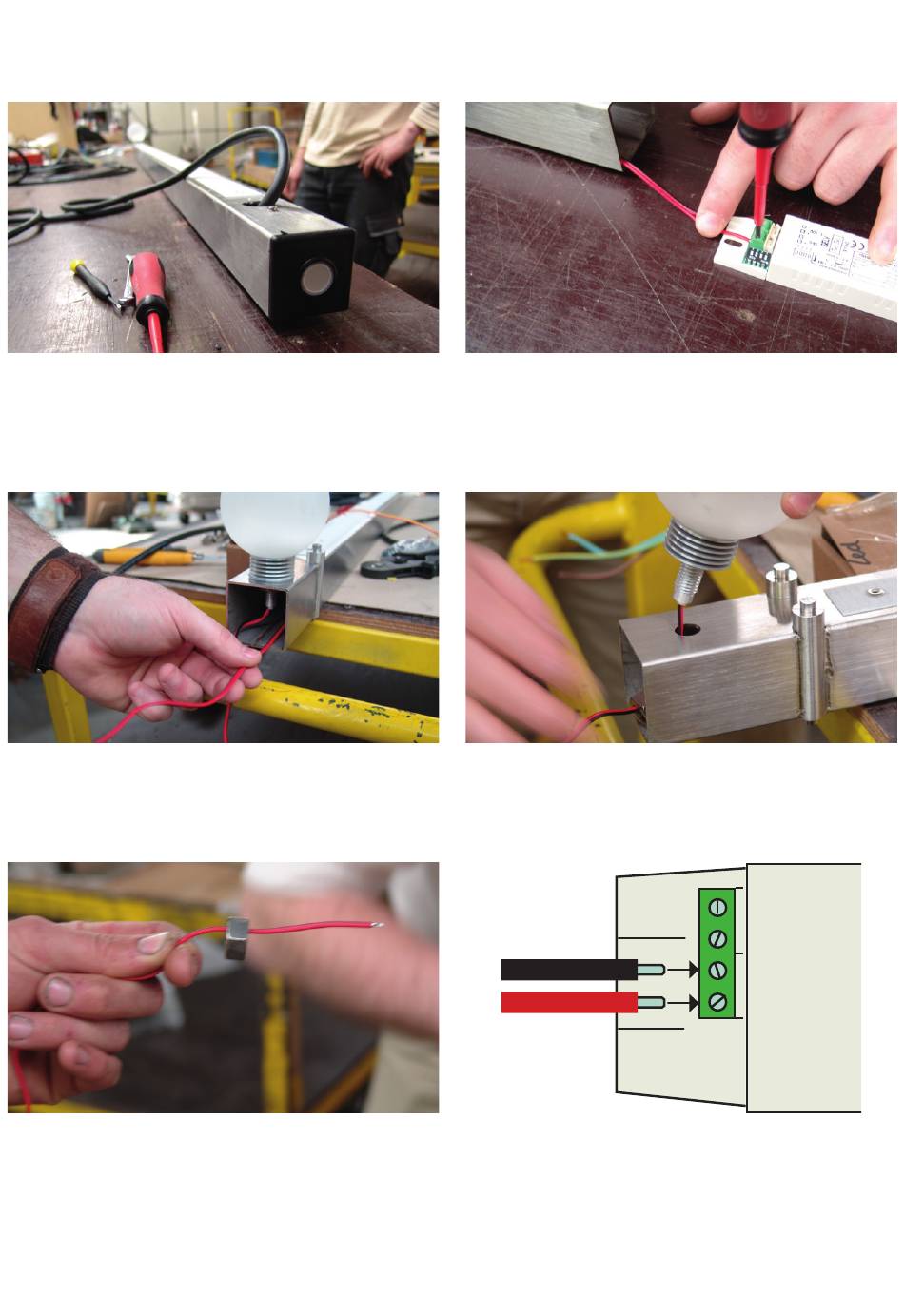

1. Remove the tube cap with switch and remove the LED
adapter from the parasol tube.
3. Remove the tube cap in the center of the parasol, pull
the cord through the tube and unscrew the nut from the
lighting base.
5. Insert the new LED, slide the nut over the cord, and
tighten the nut. Insert the cable through the tube so that
it emerges at the other end.
12
2. Remove the red and black cables from the adapter.
4. Remove the broken LED from the tube and twist the
bulb off so that it can be attached to the new LED bulb.
on the new LED bulb. Do not forget to place the rubber
ring to place it.
6. Connect the wires to the LED adapter as shown here
shown.
7. Replace both caps on the ends of the parasol tube.
