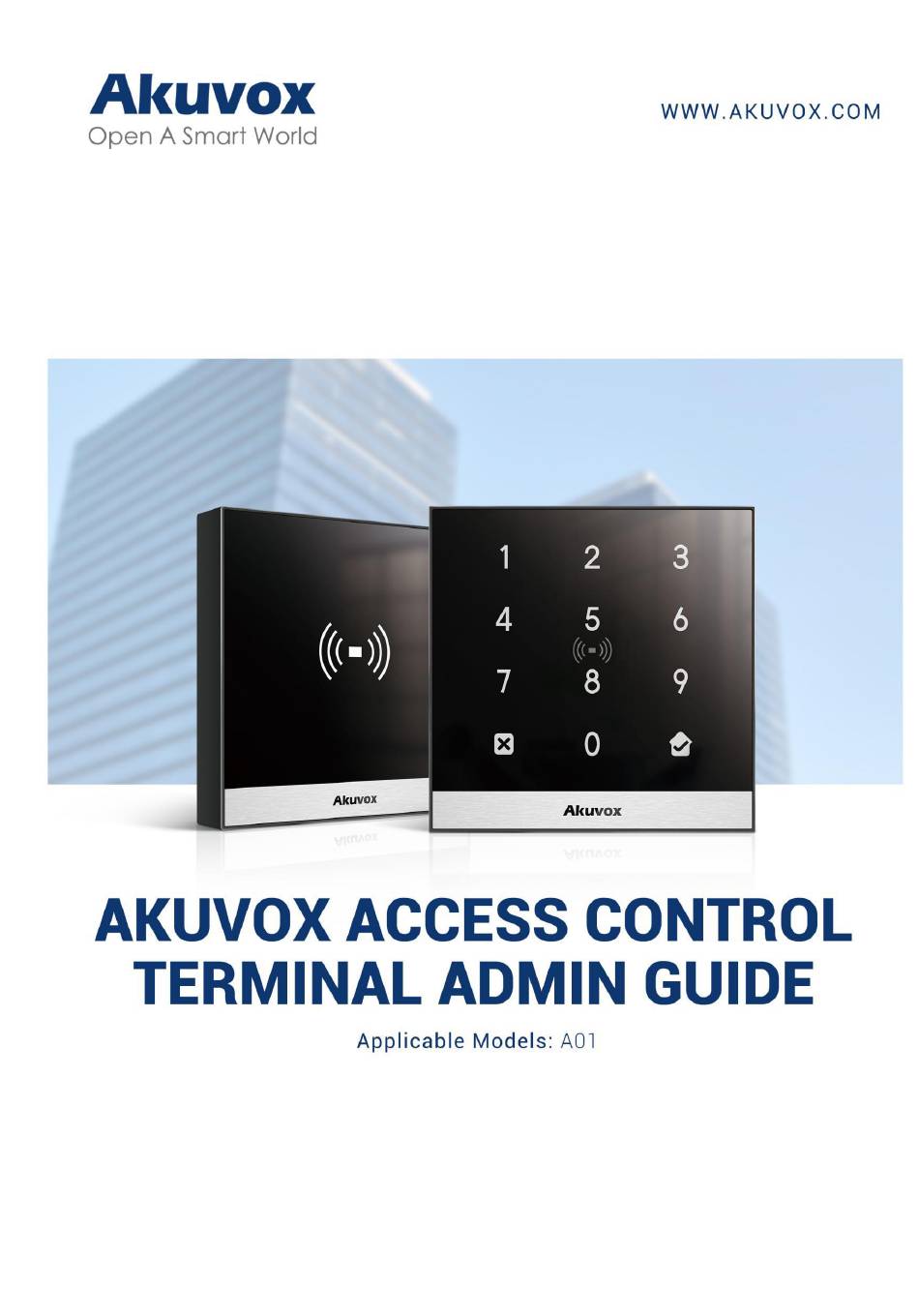

  • Page 1 Version: 1.0 | Date: Jan.2021...
  • Page 2 About This Manual Thank you for choosing Akuvox A01 access control terminal. This manual is intended for the administrators who need to properly configure the access control terminal. This manual applies to 101.30.0.70 version, and it provides all the configurations for the functions and features of A01 access control terminals.
  • Page 3 Introduction of Icons and Symbols Warning:  Always abide by this information in order to prevent the persons from injury. Caution:  Always abide by this information in order to prevent the damages to the device. Note:  Informative information and advice from the efficient use of the device.
  • Page 4 Related Documentation You are advised to refer to the related documents for more technical information via the link below: http://wiki.akuvox.com...

  • Page 5: Table Of Contents

    Table of Contents 1. Product Overview....................1 2. Change Log......................2 3. Model Specification....................3 4. Introduction to Configuration Menu..............4 5. Access the Device....................5 6. Time Setting......................6 7. LED Setting......................7 7.1. Brightness Setting..................7 8. Volume and Tone Configuration................8 8.1.1. Volume Configuration................8 8.1.2.
  • Page 6 18.1. Provisioning Principle................28 18.2. Configuration Files for Auto-provisioning.......... 29 18.3. AutoP Schedule..................29 18.4. DHCP Provisioning Configuration............30 18.5. Static Provisioning Configuration............32 19. Integration with Third Party Device..............35 19.1. Integration via Wiegand................. 35 19.2. Integration via HTTP API............... 36 20.

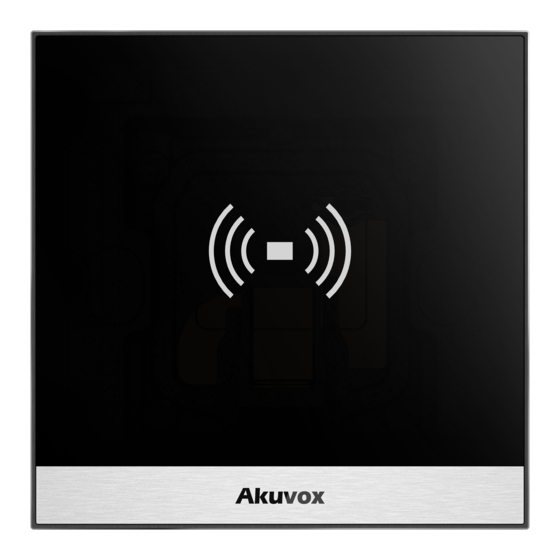

  • Page 7: Product Overview

    Equipped with a card reader ( 125kHz and 13.5MHz) which is capable of handling a majority of cards in wide use currently. A01 is designed to provide you with greater flexibility and security than those traditional access control systems.A01 access control terminal applies to residential buildings, office...

  • Page 8: Change Log

    A01 Access Control Admin Guide 2.Change Log The change log will be updated here along with the changes in new software version. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 9: Model Specification

    A01 Access Control Admin Guide 3.Model Specification Model & Feature Front panel: Toughened Glass Housing Material Frame: Aluminum Alloy Relay Out Input Wiegand √ √ 128M 128M Card Reader 13.56MHz&125KHz Wi-Fi Bluetooth IP Rating IP65 External SD Card Wall Mounting √...

  • Page 10: Introduction To Configuration Menu

    2. Akuvox Upgrade tool: Upgrade Akuvox devices in batch on a LAN (Local Area Network). 3. Akuvox PC Manager: Distribute all configuration items in batch on a LAN. 4. IP scanner: it is used to search Akuvox device IP addresses on a LAN. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 11: Access The Device

    A01 Access Control Admin Guide 5.Access the Device Before configuring Akuvox A01, please make sure the device is installed correctly and connect a normal network. Using Akuvox IP scanner tool to search the device IP address in the same LAN. Then use the IP address to login in the web browser by user name and password admin and admin.

  • Page 12: Time Setting

    A01 Access Control Admin Guide 6.Time Setting Time setting on the web interface allows you to set up time and date manually while allowing you to use NTP server address that you obtained to automatically synchronize your time and date. And when your time zone is selected, the device will automatically notify the NTP server of its time zone so that the NTP server can synchronize the time zone setting in your device.

  • Page 13: Led Setting

    A01 Access Control Admin Guide 7.LED Setting 7.1. Brightness Setting If you want to brighten up the brightness in order to see the card reader at greater ease in an environment with higher light intensity, you need to set up the related parameters in web Hardware >...

  • Page 14: Volume And Tone Configuration

    A01 Access Control Admin Guide 8.Volume and Tone Configuration Volume and tone configuration in A01 access control terminal refers to tamper alarm volume, voice prompt volume and open-door tone configuration. Moreover, you can upload the tone you like to enrich your personalized user experience.

  • Page 15: Network Setting

    A01 Access Control Admin Guide 9.Network Setting You can configure the default DHCP mode (Dynamic Host Configuration Protocol) and static IP connection. Moreover, you can set up IP address, Subnet Mask, Default Gateway, LAN DNS1 & LAN DNS2. To configure the configuration on web System >...

  • Page 16: Relay Setting

    A01 Access Control Admin Guide 10. Relay Setting You can configure the relay switch(es) for the door access on the web interface. 10.1.1. Relay switch setting To configure the configuration on web Hardware > Relay > Relay interface. Parameter Set-up: ...

  • Page 17: Web Relay Setting

    A01 Access Control Admin Guide Note:  Only the external devices connected to the relay switch needs to be powered by power adapters as relay switch does not supply power. 10.2.Web Relay Setting In additional to the relay that is connected to the access control terminal, you can also control the door access using the network-based web relay on the device and on the device web interface.
  • Page 18 A01 Access Control Admin Guide Parameter Set-up:  Type: select among three options Disabled, WebRelay and Both. Select WebRelay to enable the web relay. Select Disable to disable the web relay. Select Both to enable both local relay and web relay.

  • Page 19: Door Access Schedule Management

    A01 Access Control Admin Guide Door Access Schedule Management You are required to configure and make schedule for the user-based door access via RF card. 11.1. Configure Door Access Schedule You can create door access schedules so that they can be later conveniently applied to the door access control intended for individual user or a group of users created.

  • Page 20: Import And Export Door Access Schedule

    A01 Access Control Admin Guide Click + Add to create a weekly schedule, select Schedule Mode as Weekly. Click + Add to create a longer period schedule, select Schedule Mode as Normal. 11.1.2. Import and Export Door Access Schedule In addition to creating door access schedule separately, you can also conveniently import or export the schedules in order to maximize your door access schedule management efficiency.
  • Page 21 A01 Access Control Admin Guide Note:  It only supports .xml format file for importing and exporting the schedule. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 22: Door Unlock Configuration

    A01 Access Control Admin Guide 12. Door Unlock Configuration A01 access control terminal offer you three types of door access via RF card. You can configure them on web interface. Moreover, you can import or exporting the user configured files including access control information.

  • Page 23: Unlock By Nfc

    NFC(Near Field Communication) is popular way for door access. It uses radio waves for data transmission interaction. A01 supports to be unlocked by NFC. You need to create a card number in user page then add it to your NFC wallet of smart phone.

  • Page 24: Unlock By Exit Button By The Door

    A01 Access Control Admin Guide Parameter Set-up:  Enable: enable the HTTP command unlock function by clicking on Enable field.  User Name: enter the user name of the device web interface, for example: “Admin”.  Password: enter the password for the HTTP command. For example: “12345”.
  • Page 25 A01 Access Control Admin Guide Parameter Set-up:  Trigger Electrical Level: select the trigger electrical level options between “High” and “Low” according to the actual operation on the exit button.  Action to execute: set actions to be triggered by the input. Email and HTTP URL actions are supported.

  • Page 26: Security

    A01 Access Control Admin Guide 13. Security 13.1.Tamper Alarm Setting Tamper alarm function serves as a protection against any unauthorized removal of the devices by triggering off the temper alarm on the device. To configure the configuration on web System > Security > Tamper Alarm interface.

  • Page 27: Security Notification Setting

    A01 Access Control Admin Guide 13.2.Security Notification Setting 13.2.1. Email Notification Setting If you want to receive the security notification via email, you can configure the Email notification on the web interface properly. To configure the configuration on web Services > Action > Email Notification interface.
  • Page 28 A01 Access Control Admin Guide  SMTP password: configure the password of SMTP service, which is same with sender’s email address.  Email subject: enter the subject of the email.  Email content: compile the emails contents according to your need.

  • Page 29: Logs

    A01 Access Control Admin Guide 14. Logs 14.1.Access Log If you want to search and check on door access history, you can search and check the door logs on the device web Status > Access Log interface. Parameter Set-up:  Save Door Log Enabled: Tick the check box to turn on or turn off the door log function.

  • Page 30: Debug

     Log Level: select log levels from 1 to 7 levels. You will be instructed by Akuvox technical staff about the specific log level to be entered for debugging purpose. The default log level is 3, the higher the level is 5, the more complete the log is 7.

  • Page 31: Pcap For Debugging

    A01 Access Control Admin Guide 15.2.PCAP for Debugging PCAP in A01 access control terminal is used to capture the data package going in and out of the devices for debugging and troubleshooting purpose. You can set up the PCAP on the device web System > Maintenance > PCAP interface properly before using it.

  • Page 32: Firmware Upgrade

    A01 Access Control Admin Guide 16. Firmware Upgrade Firmware of different versions for A01 access control terminal can be upgraded on the device web System > Upgrade interface. Note:  Firmware files should be .rom format for upgrade. AKUVOX SMART INTERCOM...

  • Page 33: Backup

    A01 Access Control Admin Guide 17. Backup Configuration files can be imported to or exported out of the device to your local PC on the device web System > Maintenance > Others interface if needed. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 34: Auto-Provisioning

    Auto-provisioning is a feature used to configure or upgrade the devices in batch via third party servers. DHCP, PNP, TFTP, FTP, HTTPS are the protocols used by the Akuvox intercom devices to access the URL of the address of the third-party server which stores configuration files and firmware, which will then be used to update the firmware and the corresponding parameters on the access control terminal.

  • Page 35: Configuration Files For Auto-Provisioning

    MAC-based configuration files. 18.3.AutoP Schedule Akuvox provides you with different Autop methods that enable the access control terminal to perform provisioning for itself in a specific time according to your schedule. To configure the configuration on web System > Auto Provisioning >...

  • Page 36: Dhcp Provisioning Configuration

    A01 Access Control Admin Guide Parameter Set-up:  Power On: select “Power on”, if you want the device to perform Autop every time it boots up.  Repeatedly: select “Repeatedly”, if you want the device to perform autop according to the schedule you set up.
  • Page 37 A01 Access Control Admin Guide Note:  The custom Option type must be a string. The value is the URL of TFTP server. Parameter Set-up:  Custom Option: enter the DHCP code that matched with corresponding URL so that device will find the configuration file server for the configuration or upgrading.

  • Page 38: Static Provisioning Configuration

    A01 Access Control Admin Guide  DHCP Option 66: If none of the above is set, the device will automatically use DHCP Option 66 for getting the upgrade server URL. This is done within the software and the user does not need to specify this. To make it work, you need to configure the DHCP server for the option 66 with the update server URL in it.
  • Page 39 A01 Access Control Admin Guide Parameter set-up:  URL: set up tftp，http，https，ftp server address for the provisioning.  User Name: set up a user name if the server needs an user name to be accessed to otherwise leave it blank.
  • Page 40  HTTP: http://192.168.0.19/ (use the default port 80)  http://192.168.0.19:8080/ (use other ports, such as 8080)  HTTPS: https://192.168.0.19/ (use the default port 443) Tip:  Akuvox do not provide user specified server.  Please prepare TFTP/FTP/HTTP/HTTPS server by yourself. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 41: Integration With Third Party Device

    A01 Access Control Admin Guide 19. Integration with Third Party Device 19.1.Integration via Wiegand If you want to integrate the A01 access control terminal with the third-party devices via Wiegand, you can configure the Wiegand on the web Hardware > Wiegand interface.

  • Page 42: Integration Via Http Api

    19.2. Integration via HTTP API HTTP API is designed to achieve an network-based integration between the third party device with the Akuvox intercom device. You can configure the HTTP API function on the web Services > HTTP API interface for the integration.

  • Page 43: Password Modification

    A01 Access Control Admin Guide 20. Password Modification 20.1.Modify the Password On the device web interface, you can set and change password for accessing the web System > Security > Web Password Modify interface. In addition, you can also select the user role when setting passwords.

  • Page 44: System Reboot And Reset

    If you want to reset the device system to the factory setting, you can it on the web System > Upgrade interface. You can also hold the reset button 12s on the back of A01 to reset. AKUVOX SMART INTERCOM...
  • Page 45 A01 Access Control Admin Guide AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 46: Abbreviations

    A01 Access Control Admin Guide 22. Abbreviations ACS: Auto Configuration Server Auto: Automatically AEC: Configurable Acoustic and Line Echo Cancelers ACD: Automatic Call Distribution Autop: Automatic Provisioning AES: Advanced Encryption Standard BLF: Busy Lamp Field COM: Common CPE: Customer Premise Equipment...
  • Page 47 A01 Access Control Admin Guide PCMA: Pulse Code Modulation A-Law PCMU: Pulse Code Modulation µ-Law PCAP: Packet Capture PNP: Plug and Play RFID: Radio Frequency Identification RTP: Real-time Transport Protocol RTSP: Real Time Streaming Protocol MPEG: Moving Picture Experts Group...

  • Page 48: Faq

    A01 Access Control Admin Guide 23. FAQ Q1: How to obtain IP address of access control terminal? A1: Using Akuvox IP Scanner to search Akuvox devices in the same LAN network. Q2: What is the supported temperature range for A01 ? A2: Working Temperature: -20°C ~ +55°C...

  • Page 49: Contact Us

    A01 Access Control Admin Guide 24. Contact Us For more information about the product, please visit us at www.akuvox.com or feel free to contact us by Sales email: sales@akuvox.com Technical support email: support@akuvox.com Telephone: +86-592-2133061 ext.7694/8162 We highly appreciate your feedback about our products.
