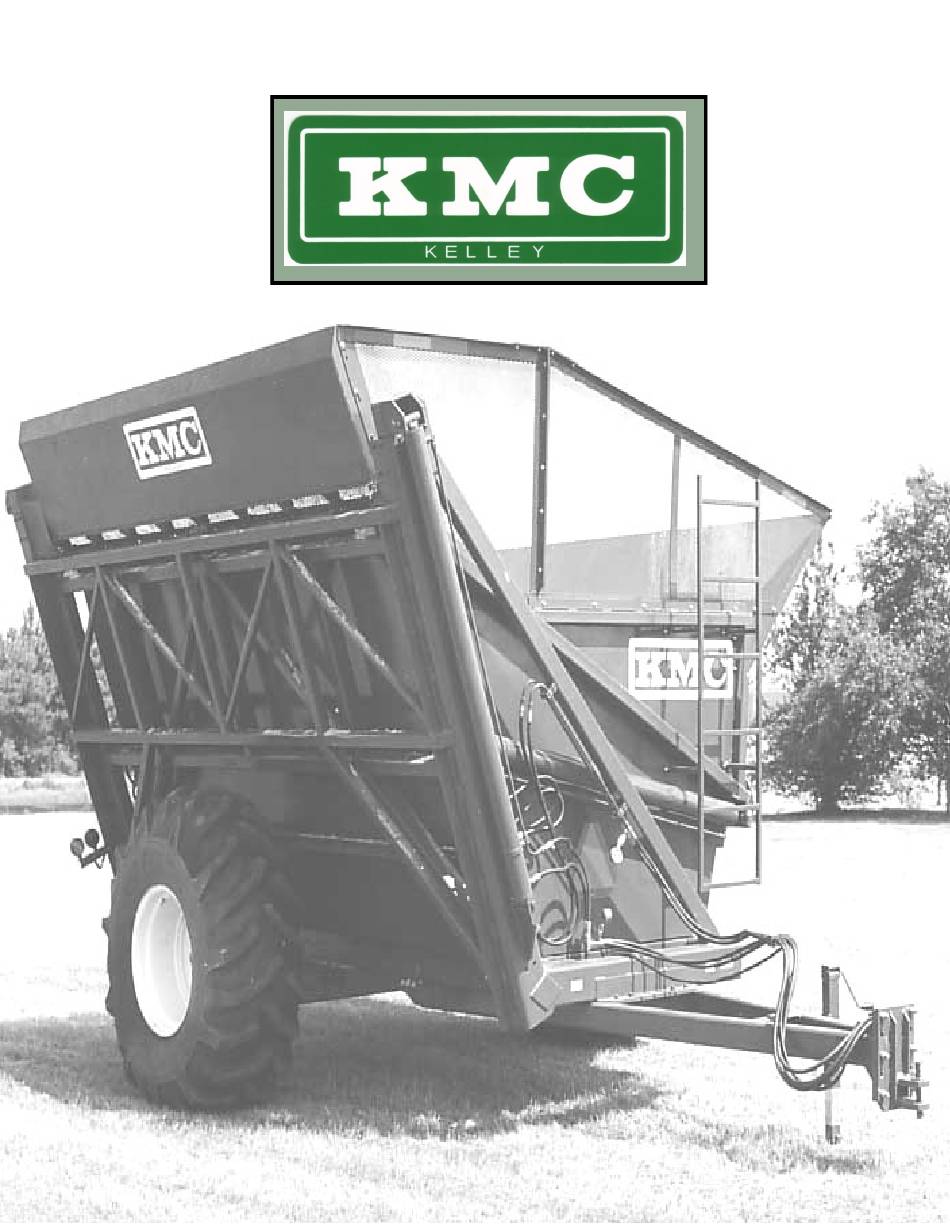

48-SERIES
4810, 4815, 4825 & 4830
DUMP CARTS
OPERATOR'S MANUAL
THIS MANUAL TO ACCOMPANY MACHINE
PART NO. 48-OM-01
PRINTING DATE: MARCH 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 48 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for KMC Controls 48 Series

  • Page 1 48-SERIES 4810, 4815, 4825 & 4830 DUMP CARTS OPERATOR’S MANUAL THIS MANUAL TO ACCOMPANY MACHINE PART NO. 48-OM-01 PRINTING DATE: MARCH 2017...
  • Page 2 WARRANTY POLICY KELLEY MANUFACTURING COMPANY (KMC) warrants that all goods sold to the original purchaser of any KMC product shall be free of any defects in material and workmanship if used under normal operating conditions. warranty period begins on the date of purchase by the retail customer and ends twelve (12) months thereafter.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS TO THE PURCHASER ....................2 RETAIL CUSTOMERS RESPOSIBILITY ..............3 SAFETY PROCEDURES ....................3 DEALER SETUP ......................4-7 INITIAL OPERATION ....................8 FIELD OPERATION ....................... 8-9 LUBRICATION POINTS ....................9 DUMP CART SPECIFICATIONS ..................10-11 PICTURES ........................12-13 DECAL PAGE ........................
  • Page 4: To The Purchaser

    TO THE PURCHASER This KMC Dump Cart has been carefully designed and manufactured to give years of dependable service. In order to operate it efficiently and maintain if properly, please read the instructions within this manual thoroughly. While reading the manual through, you will notice that it is divided into sections which clearly explain the assembly and operations of each components of this machine.
  • Page 5: Retail Customers Resposibility

    SAFETY PROCEDURES Safety and performance are the primary objectives of the designers of KMC equipment. Safety features have been incorporated into this machine where possible and warnings given in other areas. For your safety, PLEASE read and observe the following safety procedures. 1.
  • Page 6: Dealer Setup

    DEALER SETUP Due to shipping restrictions, some dealer assembly may be required. DANGER: During setup, make sure the frame is securely supported on all four corners. Failure to support the frame could result in injury or death. Carefully remove the loose parts that have been shipped inside the tank. 4 - 3/4 X 2 Capscrew 6 - 3/4 X 3 Capscrew 3/4 Lockwasher...
  • Page 7 DUMPING HEIGHTS FOR MODELS 4810 & 4815 FOR MODELS 4825 & 4830 OK FOR LOW SHIPPING The Models 4825 & 4830 HEIGHT. UNUSABLE is not adjustable. FIELD. It is preset at 15’5” dump- UNUSABLE ing height. RECOMMENDED FIELD POSITION FOR MAXIMUM CAPACITY.
  • Page 8 the axle or frame to keep the tire from deflecting and unseating the bead when filling the tire. Also, do not allow the tire pressure to drop below five (5) PSI during the filling procedure. The tire will hold 128 gallons of water (1068 lbs). When finished, inflate both tires to 26 PSI. Attach the desired panels to the top of the tank with the 3/8”...
  • Page 9 Corner Diverters (48-027-040 & 48-027-041) FIGURE 8 (Grain panels for dump carts.) water in the tires. The dealer is responsible for making sure the non-dumping side tire is filled prior to allowing the customer to operate the cart.
  • Page 10: Initial Operation

    INITIAL OPERATION: Double check to be sure the non-dumping side tire has been filled with water or calcium chlo- ride solution. Lubricate all grease fittings. Adjust the clevis height to match the tractor drawbar height. The tongue should be fairly level when operating.
  • Page 11: Lubrication Points

    CAUTION: NEVER MOVE THE CART WHEN THE TANK IS IN THE RAISED OR DUMPED POSITIONS. THIS MAY CAUSE EXCESSIVE STRESS ON STRUCTURAL MEMBERS AND LEAD TO FAILURE. SET THE TANK BACK DOWN BEFORE MOVING. Periodically check wheel bolts for proper torque. Tighten as needed. (400 ft. lbs.) Periodically check the condition of the hydraulic hoses.
  • Page 12: Dump Cart Specifications

    DUMP CART SPECIFICATIONS...
  • Page 13 SPECIFICATIONS MODELS MODELS 4810 & 4815 4825 & 4830 750 cu. ft. 950 cu. ft. Max. Capacity (peanuts) (600 bushels) (760 bushels) 18,000 lbs. 18,000 lbs. Max. Capacity (grain) (300 bushels) (300 bushels) 15 ft. 5 in. A - Max. Dumping Height * 15 ft.
  • Page 14: Pictures

    FRONT VIEW REAR VIEW...
  • Page 15 LOW DUMP HIGH DUMP WEIGHT RACK DIRT SCREEN...
  • Page 16: Decal Page

    IMPORTANT BALL SPECIFICATIONS FOR SAFE OPERATION:  SIZE: 2-5/16  LOAD RATING: 30,000 LBS  TIGHTEN CASTLE CORRECT TORQUE AND INSTALL COTTER PIN.  USE CORRECT SHANK SIZE TO FIT DRAW- BOLT HOLE. 1-1/2, 1-3/8, 1-1/4  GREASE COUPLER DAILY. 48-050-019 TO AVOID SERIOUS INJURY OR DEATH: ...
  • Page 17 WHEN TRANSPORTING PUBLIC ROADS BE SURE THAT TOWING VEHI- CLES WEIGHT IS EQUAL TO OR GREAT- ER THAN THE LOADED WEIGHT OF IM- PLEMENT AND SAFETY CHAINS ARE USED. MAXIMUM TOWING SPEED 20 M.P.H. EMPTY 10 M.P.H. LOADED 33-050-034 TO ENSURE CART WILL DUMP PROPERLY: ...
  • Page 19 The following is a list of serial numbers issued to our machines at the beginning of each year. To determine when a unit was made, find the range within which the particular serial number falls. It would have been produced between January 1 to December 31 of that year. YEAR SERIAL NUMBERS 1985...
  • Page 20 DEPENDABLE EQUIPMENT FOR PROGRESSIVE FARMING Visit us at www.kelleymfg.com KELLEY MANUFACTURING CO. 80 Vernon Drive / Zip 31794 Tel: 229-382-9393 P.O. Drawer 1467 / Zip 31793 Toll Free: 1-800-444-5449 Tifton, GA Fax: 229-382-5259 MADE IN AMERICA Email Address: info@kelleymfg.com...
